9.3 Sequencer
The Sequencer function allows the pictures from various cameras to be displayed in a de-
ned order. Various display sequences can be dened for each video output (VGA, CVBS
1 and CVBS 2).
Please note that the dened Display Sequence is always only output in the single split of
sequencer/live mode.
Ø Open the Sequencer dialog using Setup > System > Display > Sequencer.
9.3.1 VGA display sequence
The display sequences for the various monitors must be dened on separate tabs.
All the available cameras will always be displayed by a yellow button in the Cameras box.

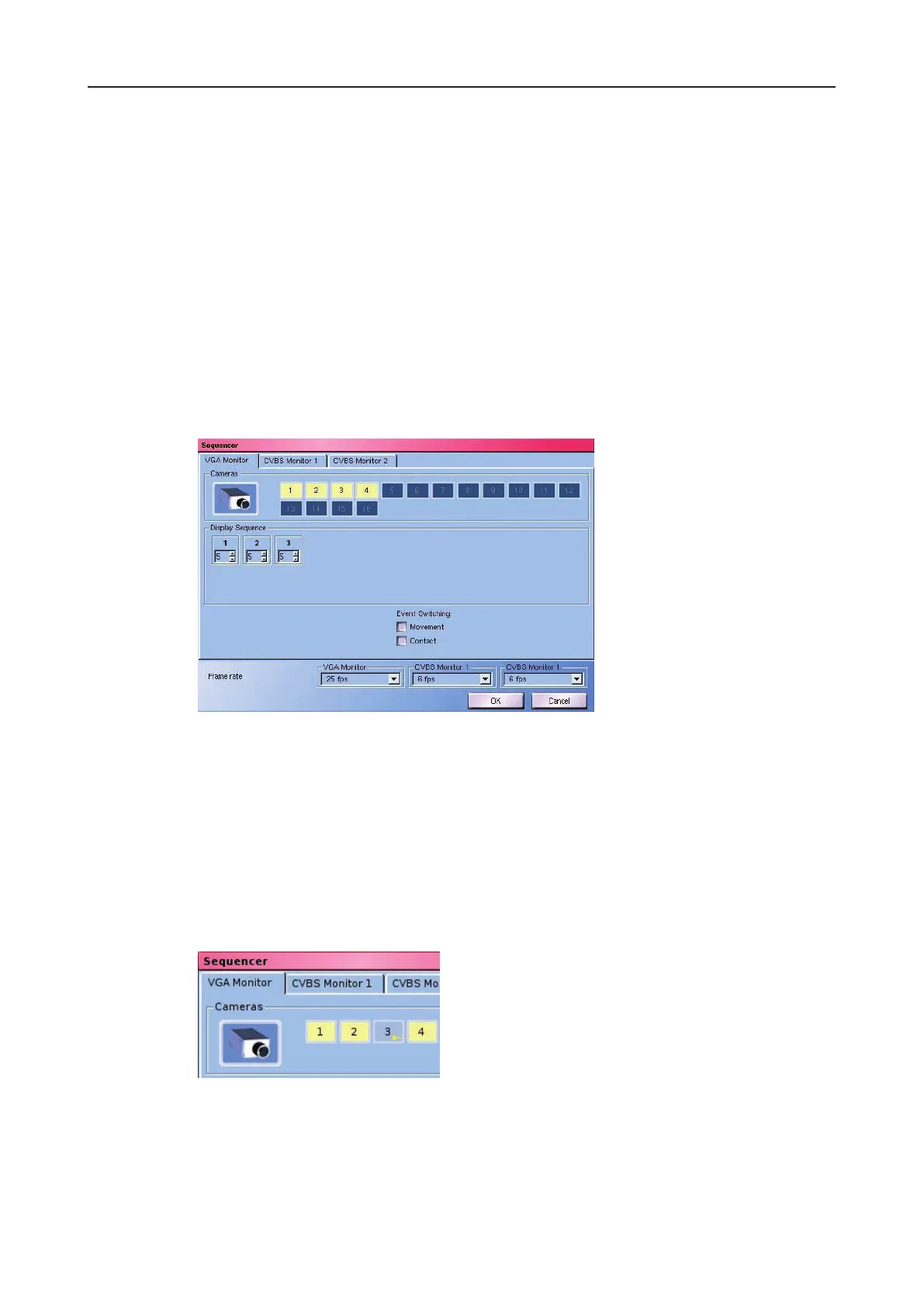

Fig. 9-7: Sequencer/VGA dialog
Ø Click on the Cameras buttons in the required order to add them to the Display
Sequence.
Ø Set the display time for each camera (in seconds) in the Display Sequence box using
the cursor buttons.
Ø Click on the camera number in the Display Sequence box to remove a camera from the
sequence.
Disable cameras
Fig. 9-8: Disabled camera
Ø To disable a camera right-click on the appropriate camera button (in this case camera
3) in the Cameras box.
