Dome/UTC camera–
move toward saved position
This contact function causes a dome camera connected
via DNI to move towards a dened position (at the ca-
mera). Camera and position number are entered in the
Contact parameter dialog. In addition, a priority level
can be assigned (0=top priority, 255=lowest priority).
After moving to a position, the dome remains for at least
5 seconds in this position unless a command with higher
priority comes in.
Split Rotation This function allows switching of the split type in Sequen-
cer-/live mode (split 1x1, 2x2, 3x3, 4x4).
Day / Night Mode (analog ca-
mera, UTC)
This function allows the control of day / night mode swit-
ching of a camera (analogue, UTC capable). It is irrelevant
thereby if the camera is dened as an UTC camera in the
Recording Settings dialog.
Which cameras are relevant and in which mode they
should switch is defined in the Contact Parameter
dialog.
Reboot This contact function causes a reboot of the recorder.
Switch Recording Quality This function is relevant for cameras with the recording
mode Switching by contact. It switches the recording
quality to High Quality.
Which camera is relevant is dened in the Contact Para-
meter dialog. Every activated camera can be selected. It
does not matter if the camera is connected or congured
for recording.
Reset Recording Quality This function is relevant for cameras with the recording
mode Switching by contact. It switches the recording
quality to Normal Quality.
Which camera is relevant is dened in the Contact Para-
meter dialog. Every activated camera can be selected. It
does not matter if the camera is connected or congured
for recording.
12.5 Congurationofcamera-relatedcontacts
The camera-related contact inputs can be freely congured as Makers or Breakers.
Ø Open the Camera Contacts dialog via Setup > Interfaces > Camera Contacts to
congure the camera-related contact inputs.

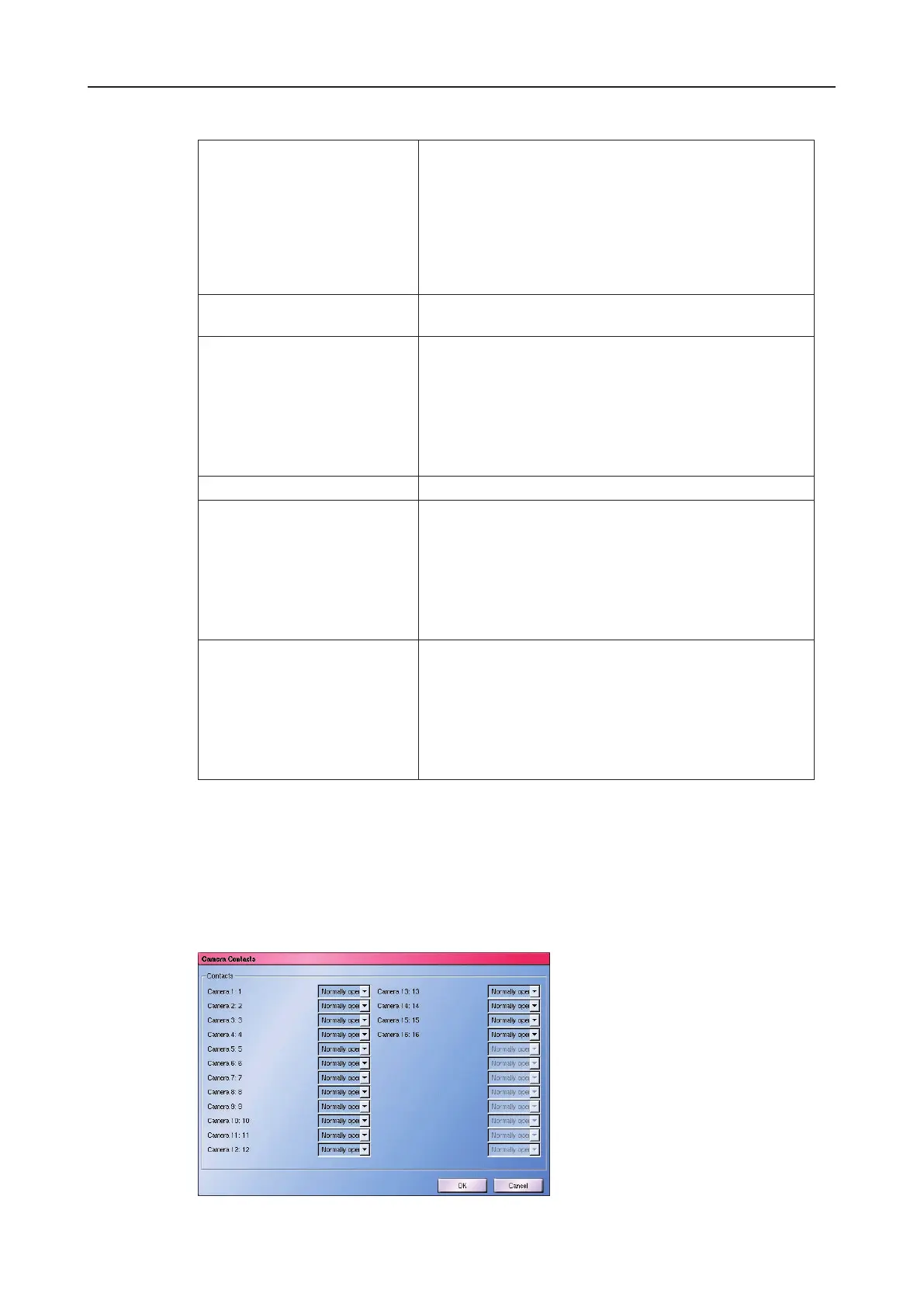

Fig. 12-6: Camera Contacts conguration
