8 Recording setting
The complete conguration for the recording and the setting of the track mode is made in
the Recoding Settings dialog.
Ø Open the dialog via Setup > Recording > Cameras.
As an Administrator group user you have access to the extended conguration options of
Expert mode.
Ø Check the Expert mode checkbox.

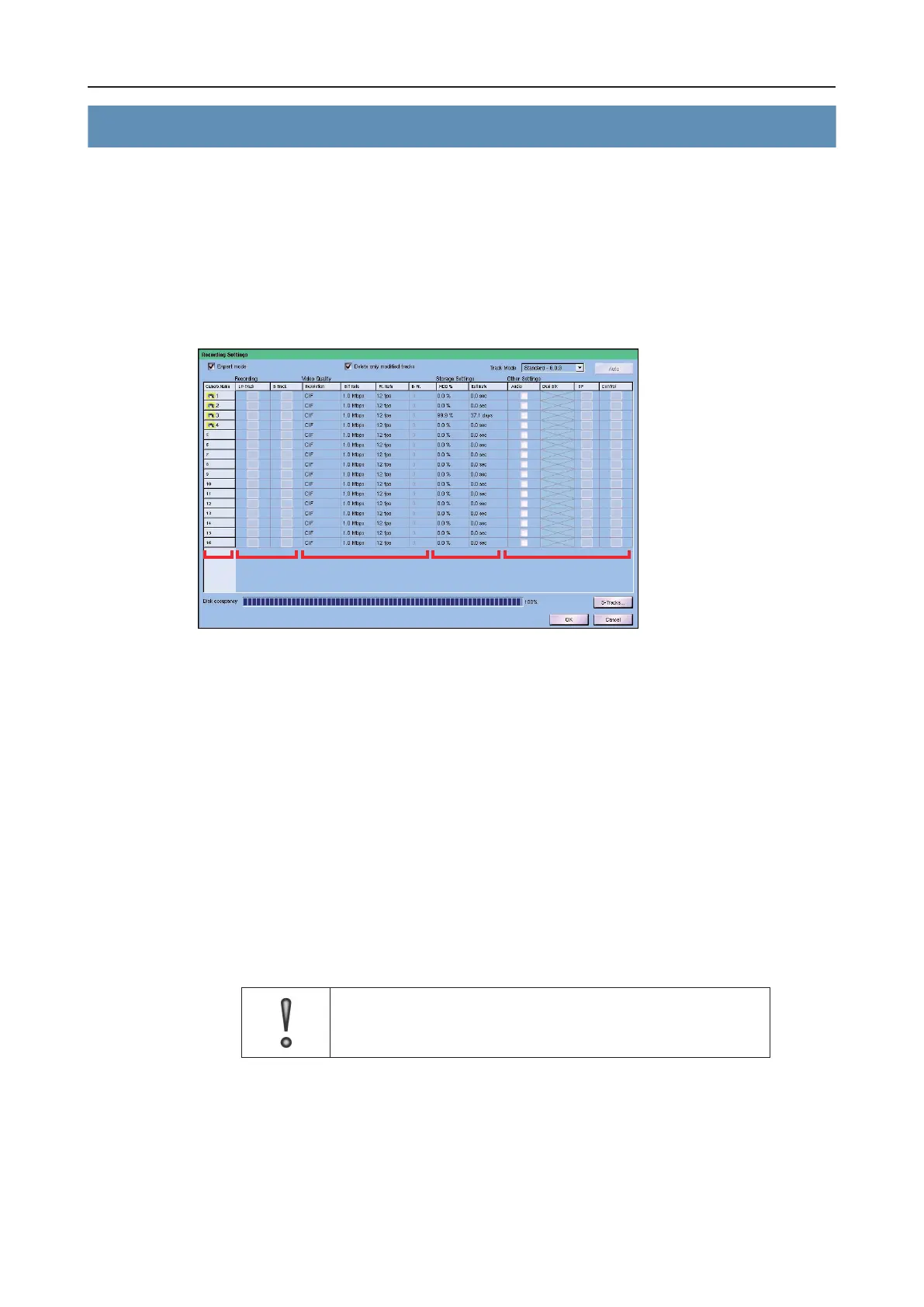

Fig. 8-1: Recording Settings dialog / Standard mode
Each line of the dialog represents a camera.
In the Camera Name (A) column a button is displayed for each camera. Under Recording
(B), the recording of each camera can be activated in the appropriate track (recording but-
tons). The recording is congured in the next columns (C). The size of the recording track
(LP track) can then be dened under Storage Settings (D). Finally, various recording options
can be activated and congured in Other Settings (E).
Note that the available recoding options and functions depend on the track mode.
8.1 Track mode
The recorder can be operated in three different track modes. These differ basically in regard
to the storage concept and therefore in regard to the options of the recording settings.
IMPORTANT
When changing the track mode all recordings and various set-
tings (e. g. video quality, camera timer) have to be deleted.
A B C D E
