dallmeier DLS 4 Installation And Configuration

DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS
61Dallmeier electronic
Deinterlace
This function can be activated to increase the picture quality. It reduces the interlace effect
in images with fast movements.
Whether and to what extent the image quality can be improved depends on a large number
of variables. We recommend a check of the image quality after the recording has been
congured.
8.5.2 Standard mode
In the Standard track mode the video quality settings are valid for recording in the LP
track and in the S track.
Analogue cameras
Note that the settings on the Alarm and Pre Event tabs are not supported in this version.
Ø Observe the explanations given above.

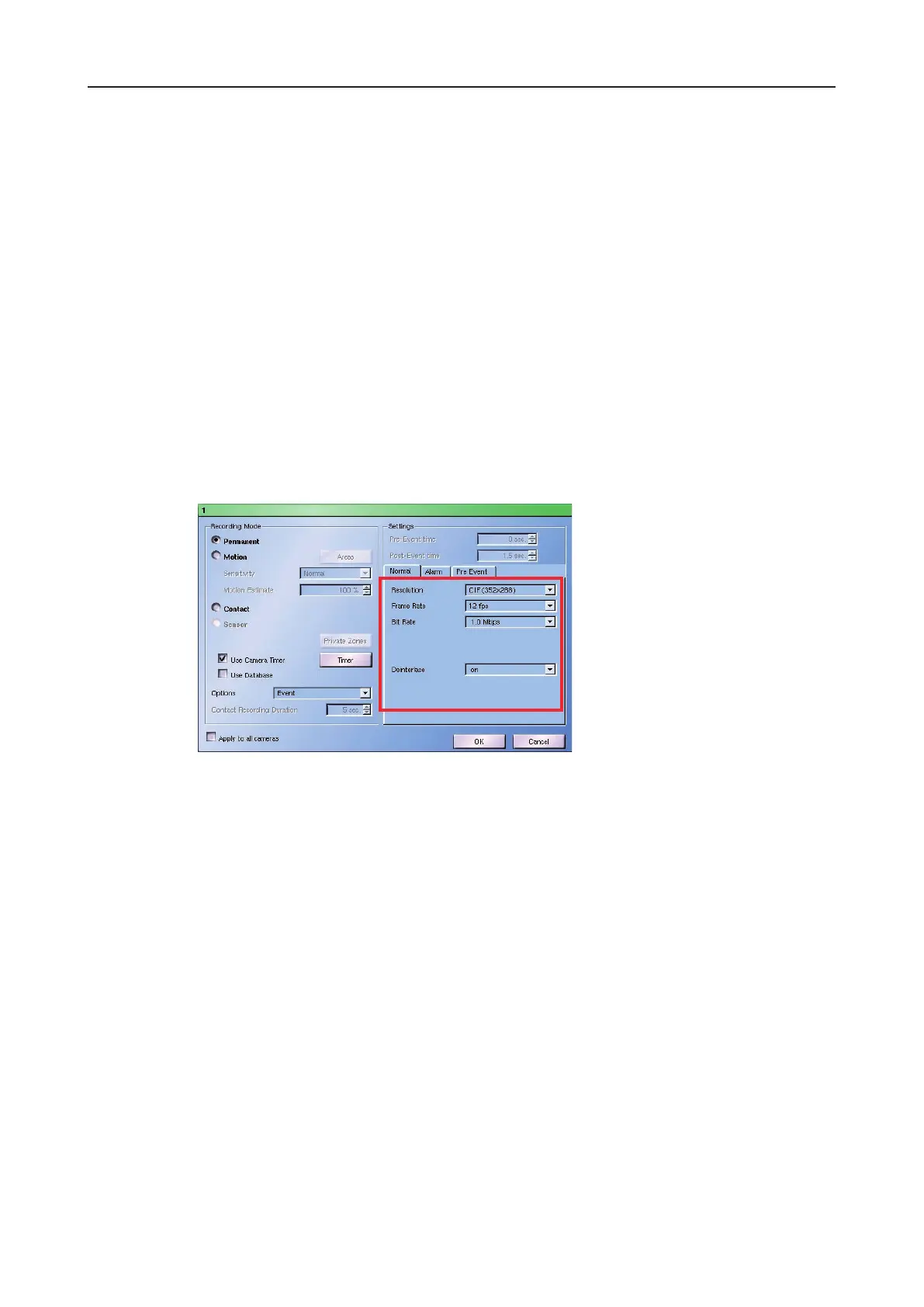

Fig. 8-25: Analogue cameras
Ø Set the Resolution.
Ø Set the Frame Rate.
Ø Set the Bit Rate.
Ø Activate Deinterlace if required.
Ø Conrm with OK.
8.5.3 Optionalconguration
8.5.3.1 Directconguration
The essential video quality settings (resolution, bit rate, frame rate) can be done directly in
the Recording Settings dialog.
Ø Left-click into the relevant eld.
A drop-down box will be displayed.
