DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS
95Dallmeier electronic
13 Relay OUT
Ø Open the Relay dialog via Setup > Interfaces > Relay OUT to congure the relay out-
puts.

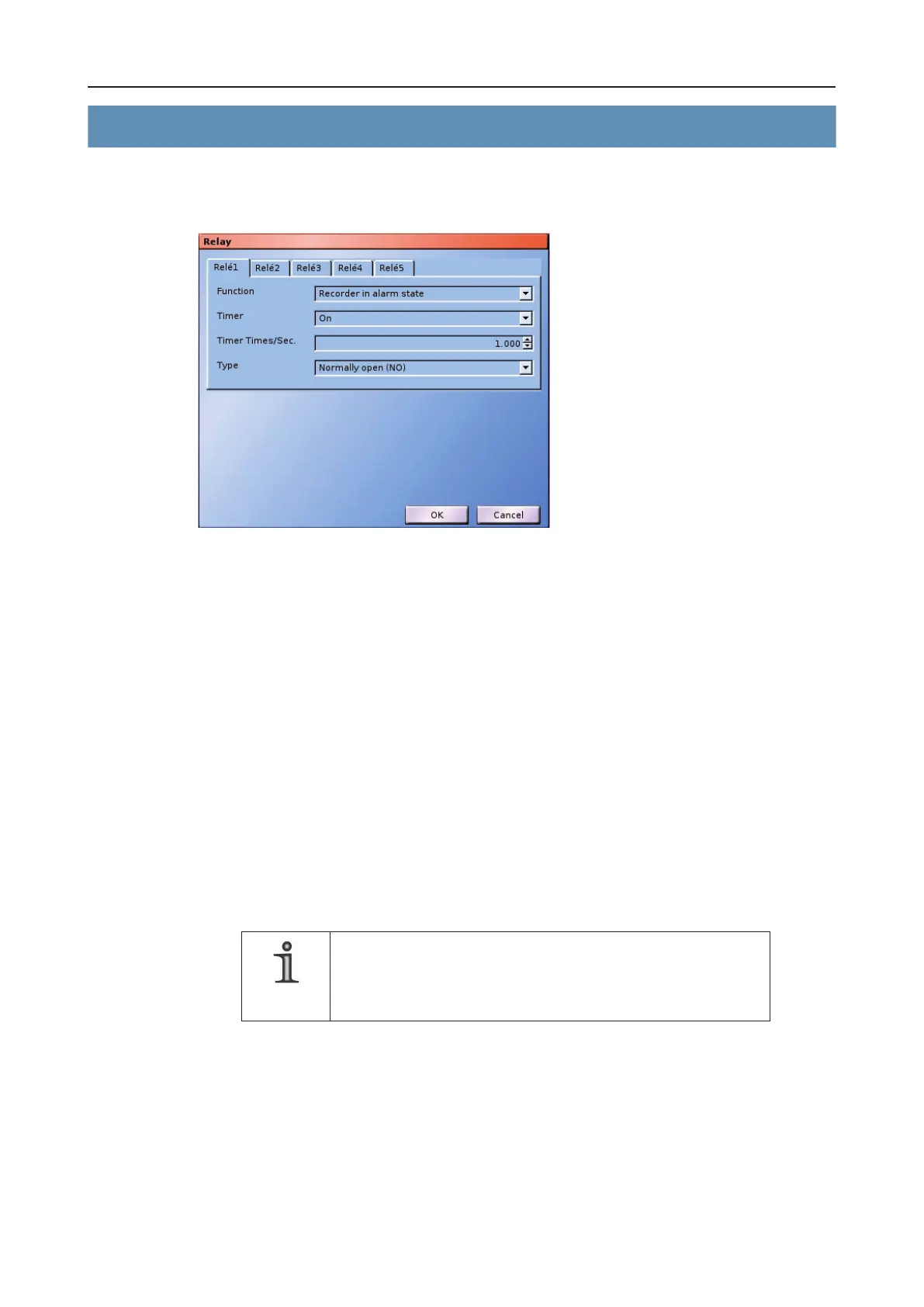

Fig. 13-1: Relay dialog
A trigger function can be assigned to each of the 5 available relays.
13.1 Setting
Ø First of all select the tab for the relevant relay.
Ø Select a Function.
Ø Dene whether the preservation time of the relay should be controlled by a Timer.
Ø Fix the duration of the timer (Timer Times/Sec.) if applicable.
Ø Finally decide whether the relay should act as a breaker (n.c.) or maker (n.o.) (Type).
Ø Conrm with OK.
13.2 Functions
NOTE
The available functions of the interface depend on various soft-
ware and hardware options. The scope of functions depends on
the ordered version, not on the content of the documentation.
