Ø Set the Timeout for the relevant cameras.
Ø Finally conrm with OK.
NOTE
Displaying of the System Message and / or sending of the
Alarm Host message have to be activated separately.
7.4.9 OSD texts
Eight text boxes for 40 characters each can be dened using the OSD Text option. These
will be displayed in the live picture and will be saved with the picture.
Ø Click on Set OSDText… to open the OSD Text Conguration dialog.

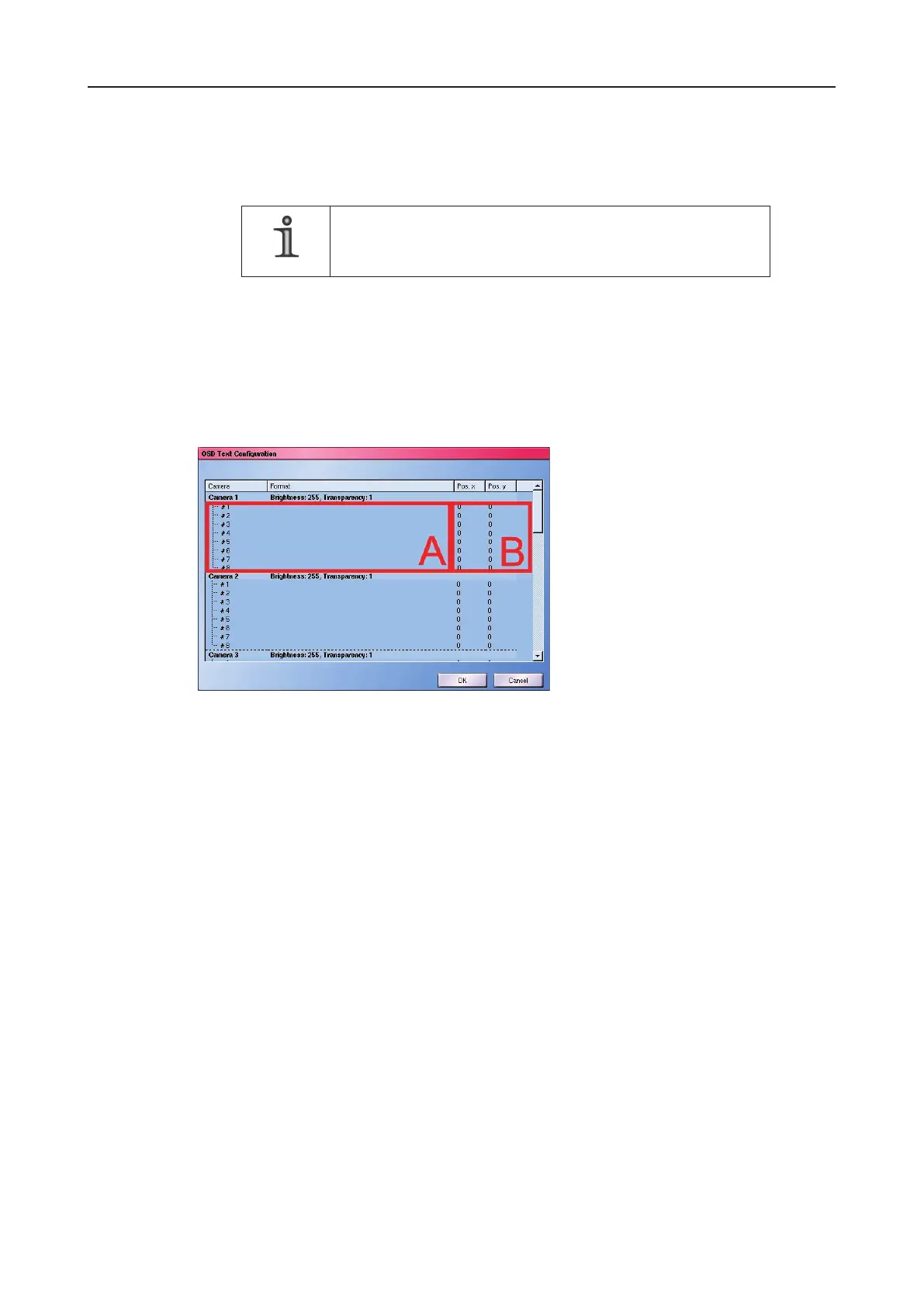

Fig. 7-22: OSD Text Conguration dialog
Enter text
Ø To enter texts in boxes 1 – 8, click in section A.
The virtual keyboard will be displayed.
Ø Enter the text.
Ø Conrm with OK.
The text will be displayed in the appropriate line in the OSD Text Conguration dialog.
Please note:
The text may be 40 characters in length and be extended by inserted variables (see
below).
No line breaks or special characters are possible.
Enter variables
In addition to pure text, a text box can also output values such as the camera name or the
current time. These values are available in the form of variables (for example “%C“) and
can be integrated in any position in a text box.
The available variables are displayed in the OSD Text Conguration dialog in the form of
a table header tool tip.
