DLS 4 / DLS 8 / 8 PLUS / DLS 16 / 16 PLUS
38Dallmeier electronic

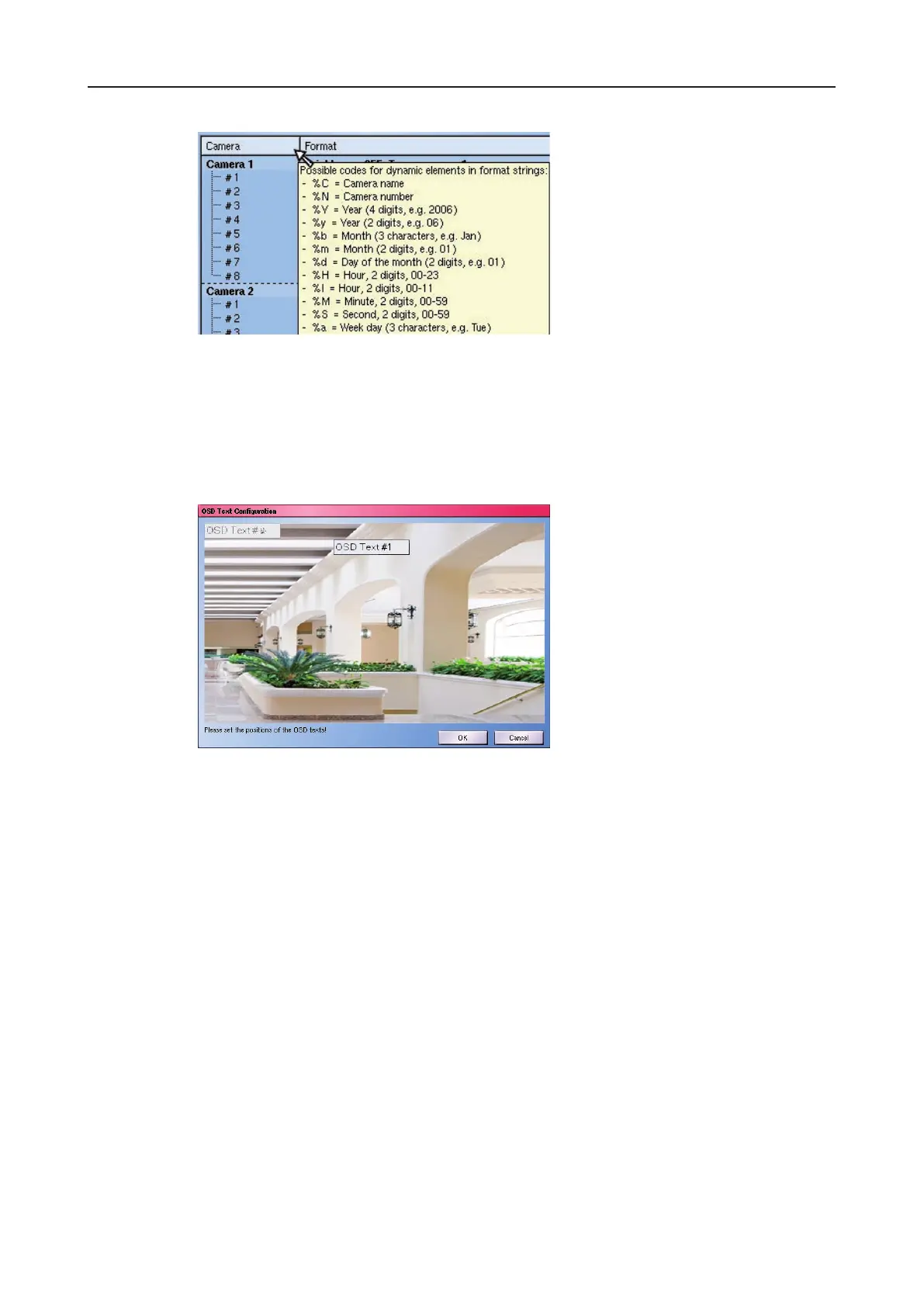

Fig. 7-23: Tool tip with the available variables
Adjust position
Ø To adjust the position of text boxes 1 - 8, click in section B (Fig. 7-22).
The current camera picture will be displayed. The text boxes are positioned one on top of
the other in the top left-hand corner.
Fig. 7-24: Position of OSD Text
Ø Move the relevant text boxes to the required positions using drag & drop.
Ø Conrm with OK.
Please note
The text boxes are dummies. Their length is not the same as the text length.
It is possible that the text will be cut out at the right-hand edge of the split window.
Adjust display
Ø Click in section C to adjust the display of the text box.
The context menu will be displayed:
