Ø Congure the Active Areas if required (see chapter Basic conguration).
Ø Set the Sensitivity of the motion detection.
Ø Set the Motion Estimation for the memory calculation.
Ø Set the Pre-Event time and the Post-Event time.
Ø Congure Private Zones if required (see chapter Basicconguration).
Ø Activate / congure the Timer if required (see chapter Basicconguration).
Ø Activate the Use Database option if required.
Ø Set an option (Event, Save, Mark) if required (see above).
Ø Conrm with OK.
Sensitivity
The more sensitive the image comparison is, the less the proportion of the picture contents
must change to trigger an image comparison event.
Motion Estimate
This value species the estimated percentage of images with motion. It affects only the
estimated recording duration (Estimate) in the track.
Pre-Event time
This option enables you to set a period during which the latest images from the camera are
retained in a buffer. If an event occurs these images are saved together with the recording
in the track. This allows the situation prior to the event to the evaluated.
Post-Event time
The Post-Event time species how long a picture comparison event is valid. Whilst it is
valid all subsequent picture comparison events will be assigned to it without triggering a new
event. The Post-Event time is used to prevent an excessive number of events.
8.4.2.3 Contact
In the Contact recording mode the recording is triggered by the recorder’s contact IN func-
tions. Contrary contact functions or completion of an Option will stop the recording.
Note that a contact input must be congured for the relevant camera (see chapter Contact
IN).
Ø Set the Contact recording mode.
Ø Observe the explanations given below.

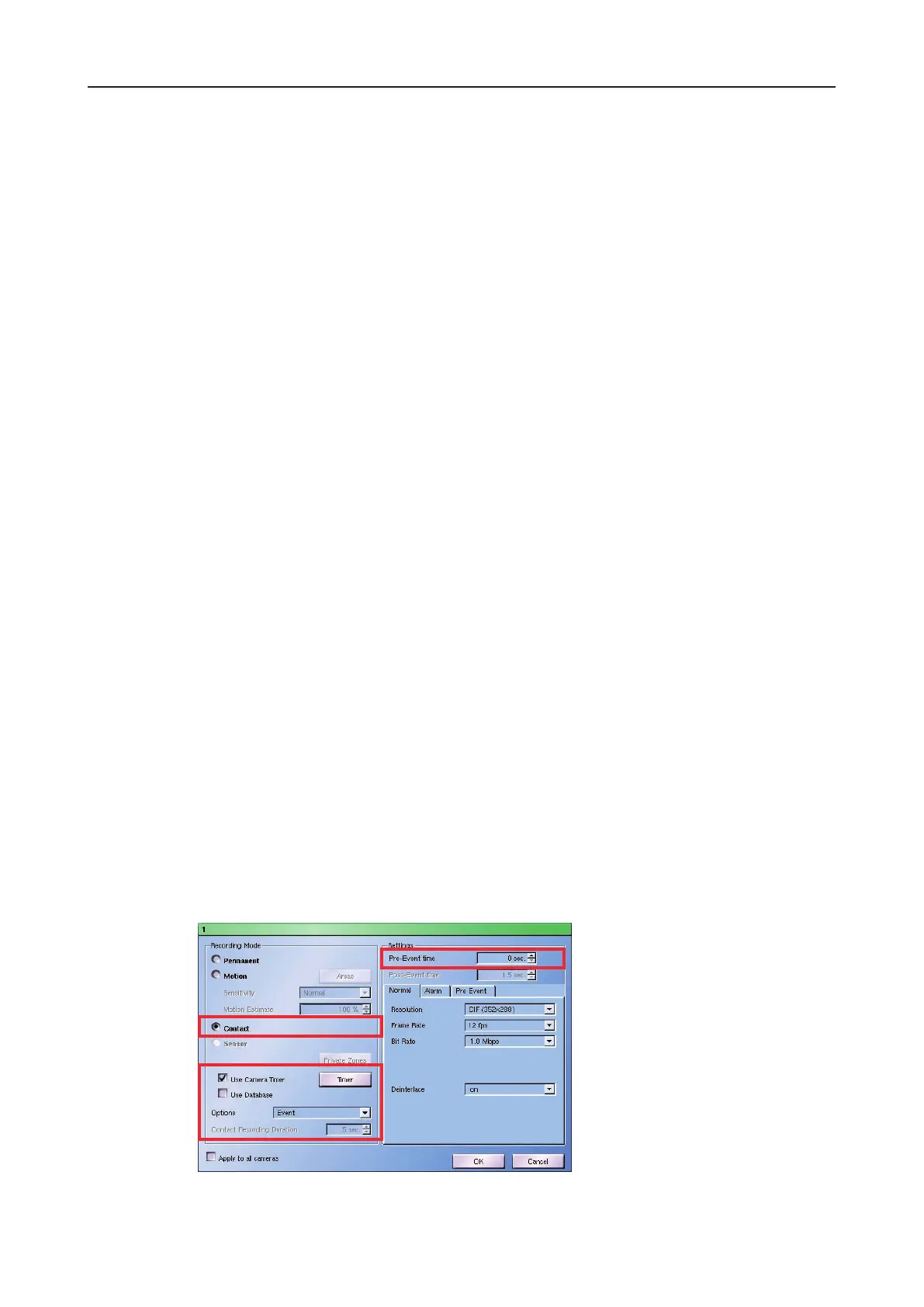

Fig. 8-22: Contact recording mode
