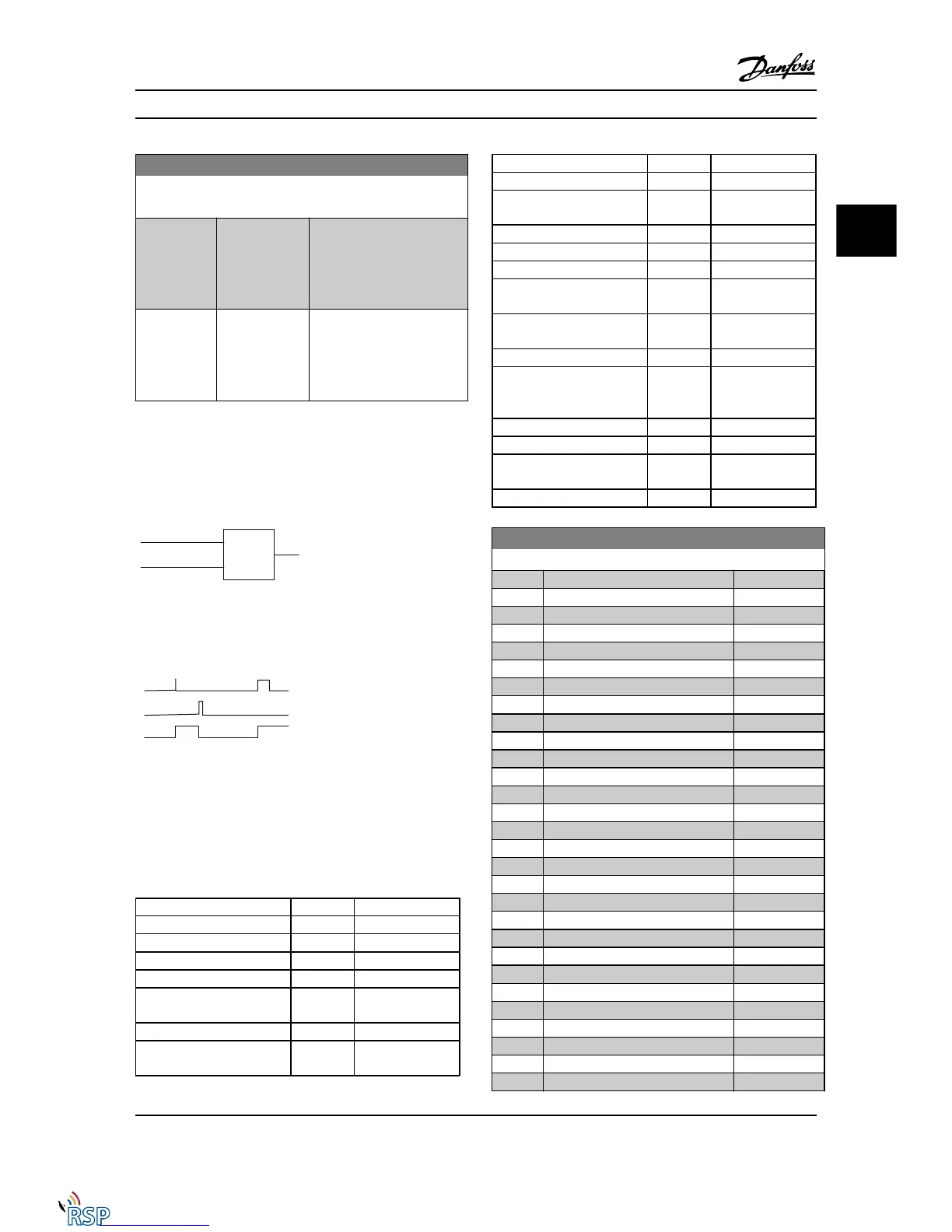

Danfoss VLT AutomationDrive Programming Guide

13-12 Comparator Value
Array [6]
Range: Function:
Size related* [-100000.000 -
100000.000 ]
Enter the ‘trigger level’ for the
variable that is monitored by
this comparator. This is an
array parameter containing
comparator values 0 to 5.
Application
dependent*
[-100000.000 -
100000.000 ]
Enter the ‘trigger level’ for the
variable that is monitored by
this comparator. This is an
array parameter containing
comparator values 0 to 5.
3.14.4 13-1* RS Flip Flops
The Reset-Set Flip Flops hold the signal until set/reset.
Par. 13-15
RS-FF Operand S
Par. 13-16
RS-FF Operand R
130BB959.10
Two parameters are used and the output can be used in
the logic rules and as events.
R
S
Flip Flop Output
130BB960.10
The two operators can be selected from a long list. As a
special case, the same digital input can be used as both
Set and Reset, making it possible to use the same digital
input as start/stop. The following settings can be used to
set up the same digital input as start/stop (example given
with DI32 but is not a requirement).
Parameter Setting Notes
13-00 SL Controller Mode
On
13-01 Start Event
TRUE
13-02 Stop Event
FALSE
13-40 Logic Rule Boolean 1 [0]
[37] Digital
Input DI32
13-42 Logic Rule Boolean 2 [0]
[2] Running
13-41 Logic Rule Operator 1 [0]
[3] AND
NOT
Parameter Setting Notes
13-40 Logic Rule Boolean 1 [1]
[37] Digital
Input DI32
13-42 Logic Rule Boolean 2 [1]
[2] Running
13-41 Logic Rule Operator 1 [1]
[1] AND
13-15 RS-FF Operand S [0]
[26] Logic
rule 0
Output from 13-41
[0]
13-16 RS-FF Operand R [0]
[27] Logic
rule 1
Output from 13-41
[1]
13-51 SL Controller Event [0]
[94] RS
Flipflop 0
Output from
evaluating 13-15
and 13-16
13-52 SL Controller Action [0]
[22] Run
13-51 SL Controller Event [1]
[27] Logic
rule 1
13-52 SL Controller Action [1]
[24] Stop
13-15 RS-FF Operand S
Option: Function:
[0] False
[1] True
[2] Running
[3] In range
[4] On reference
[5] Torque limit
[6] Current limit
[7] Out of current range
[8] Below I low
[9] Above I high
[10] Out of speed range
[11] Below speed low
[12] Above speed high
[13] Out of feedb. range
[14] Below feedb. low
[15] Above feedb. high
[16] Thermal warning
[17] Mains out of range
[18] Reversing
[19] Warning
[20] Alarm (trip)
[21] Alarm (trip lock)
[22] Comparator 0
[23] Comparator 1
[24] Comparator 2
[25] Comparator 3
[26] Logic rule 0
[27] Logic rule 1
[28] Logic rule 2
Parameter Descriptions FC 300 Programming Guide
MG33MD22 - VLT
®
is a registered Danfoss trademark 3-117
3
3
