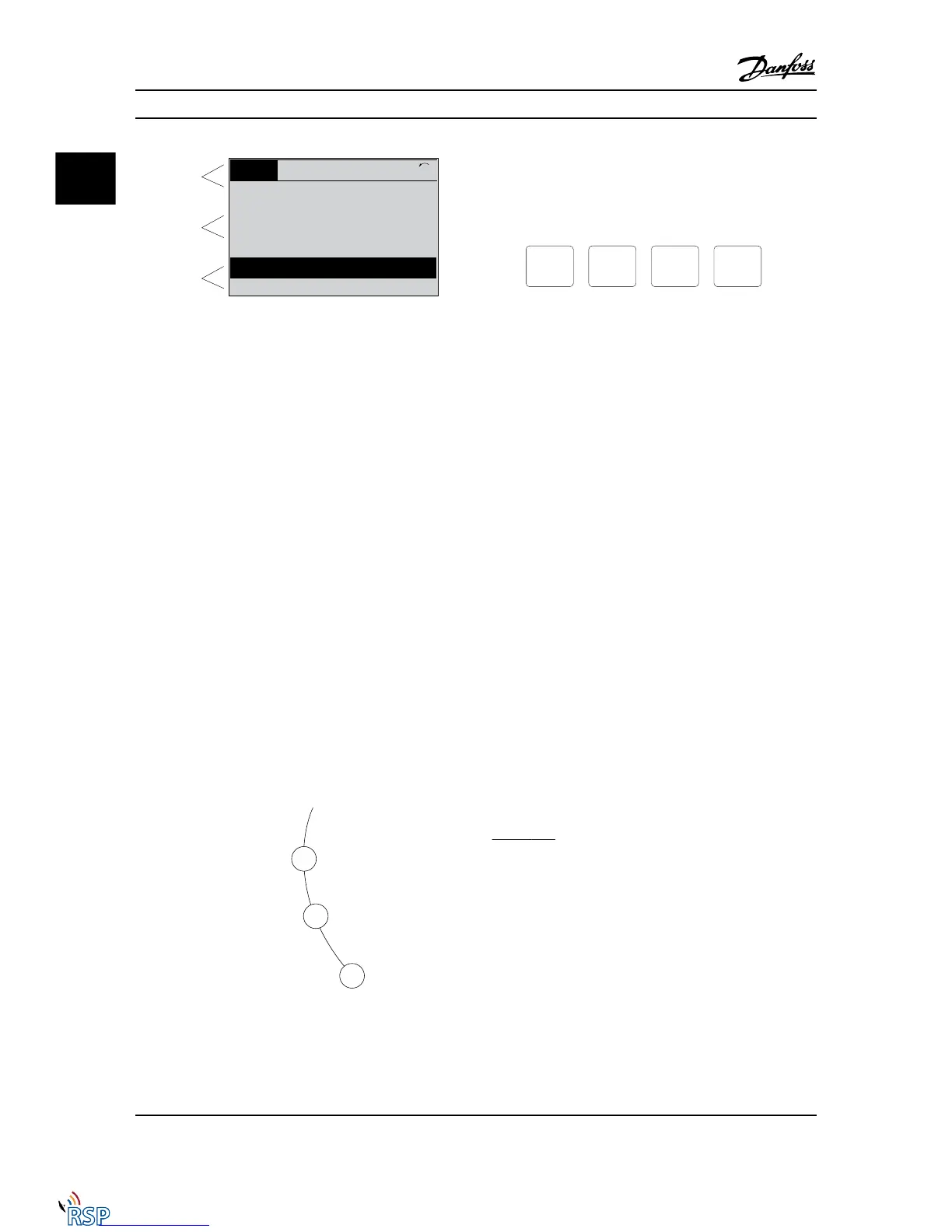

The Active Set-up (selected as the Active Set-up in
0-10 Active Set-up) is shown. When programming another
set-up than the active set-up, the number of the
programmed set-up appears to the right.
Display Contrast Adjustment
Press [status] and [
▲
] for darker display
Press [status] and [
▼
] for brighter display
Most parameter set-ups can be changed immediately via
the LCP, unless a password has been created via 0-60 Main
Menu Password or via 0-65 Quick Menu Password.
LEDs
If certain threshold values are exceeded, the alarm and/or
warning LED lights up. A status and alarm text appear on
the LCP.
The ON LED is activated when the Adjustable frequency
drive receives AC line voltage or via a DC bus terminal or
24V external supply. At the same time, the back light is on.
•
Green LED/On: Control section is working.
•
Yellow LED/Warn.: Indicates a warning.
•
Flashing Red LED/Alarm: Indicates an alarm.
[Status] indicates the status of the Adjustable frequency
drive and/or the motor. Choose between three different
readouts by pressing the [Status] key: Five line readouts,
four line readouts or Smart Logic Control.
Use [Status] for selecting the mode of display or for
changing back to display mode from either the quick
menu mode, the main menu mode or alarm mode. Also
use the [Status] key to toggle single or double readout
mode.
[Quick Menu] allows quick access to different quick menus
such as
•
My Personal Menu
•
Quick Set-up
•
Changes Made
•
Loggings
Use [Quick Menu] for programming the parameters
belonging to the Quick Menu. It is possible to switch
directly between Quick Menu mode and Main Menu mode.
[Main Menu] is used for programming all parameters.
It is possible to switch directly between Main Menu mode
and Quick Menu mode.
Parameter shortcut can be carried out by pressing down
the [Main Menu] key for 3 seconds. The parameter shortcut
allows direct access to any parameter.
[Alarm Log] displays an alarm list of the five latest alarms
(numbered A1-A5). To obtain additional details about an
alarm, use the arrow keys to navigate to the alarm number
and press [OK]. You will now receive information about the
condition of your Adjustable frequency drive right before
entering alarm mode.
[Back] takes you to the previous step or layer in the
navigation structure.
[Cancel] annuls your last change or command as long as
the display has not been changed.
How to Program FC 300 Programming Guide
2-2 MG33MD22 - VLT
®
is a registered Danfoss trademark
22
