0-20 Display Line 1.1 Small
Option: Function:
[3461] Axis Status
[3462] Program Status
[3464] MCO 302 Status
[3465] MCO 302 Control
[3470] MCO Alarm Word 1
[3471] MCO Alarm Word 2
[4285] Active Safe Func.
[4286] Safe Option Info
[9913] Idle time
[9914] Paramdb requests in
queue
[9917] tCon1 time
[9918] tCon2 time
[9919] Time Optimize
Measure
[9920] HS Temp. (PC1)
[9921] HS Temp. (PC2)
[9922] HS Temp. (PC3)
[9923] HS Temp. (PC4)
[9924] HS Temp. (PC5)
[9925] HS Temp. (PC6)
[9926] HS Temp. (PC7)
[9927] HS Temp. (PC8)
0-21 Display Line 1.2 Small
Option: Function:
[0] * None Select a variable for display in line 1, middle
position. The options are the same as listed for
0-20 Display Line 1.1 Small.
0-22 Display Line 1.3 Small
Option: Function:
[30120] * Mains Current
[A]
Select a variable for display in line 1,
right position. The options are the
same as listed for 0-20 Display Line 1.1
Small.
0-23 Display Line 2 Large
Option: Function:
[30100] * Output Current
[A]
Select a variable for display in line 2.
The options are the same as listed for
0-20 Display Line 1.1 Small.
0-24 Display Line 3 Large
Select a variable for display in line 3.
Option: Function:
[30121] * Mains Frequency The options are the same as those
listed in 0-20 Display Line 1.1 Small.
0-25 My Personal Menu
Range: Function:
Application
dependent*
[0 -
9999 ]
Define up to 50 parameters to appear in
the Q1 Personal Menu, accessible via
the [Quick Menu] key on the LCP. The
parameters will be displayed in the Q1
Personal menu in the order they are
programmed into this array parameter.
Delete parameters by setting the value
to ‘0000’.
For example, this can be used to
provide quick, simple access to just one
or up to 50 parameters which require
changing on a regular basis (e.g., for
plant maintenance reasons) or by an
OEM to enable simple commissioning of
their equipment.
3.2.4
0-3* LCP Custom Readout
It is possible to customize the display elements for various
purposes: *Custom Readout. Value proportional to speed
(linear, squared or cubed depending on unit selected in
0-30 Custom Readout Unit) *Display Text. Text string stored
in a parameter.

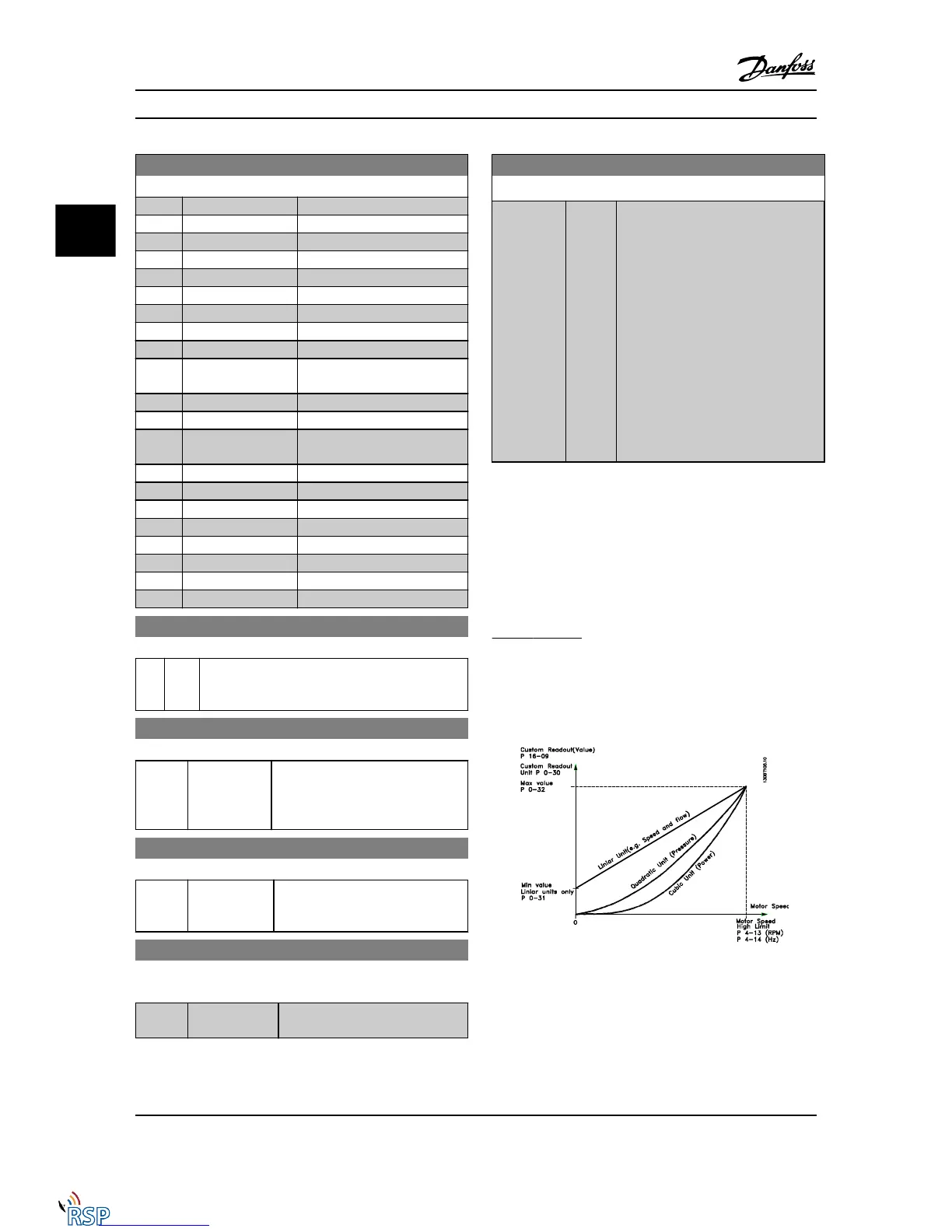

Custom Readout
The calculated value to be displayed is based on settings
in 0-30 Custom Readout Unit, 0-31 Custom Readout Min
Value (linear only), 0-32 Custom Readout Max Value,
4-13 Motor Speed High Limit [RPM], 4-14 Motor Speed High
Limit [Hz] and actual speed.
The relation will depend on the type of unit selected in
0-30 Custom Readout Unit:
Parameter Descriptions FC 300 Programming Guide
3-8 MG33MD22 - VLT
®
is a registered Danfoss trademark
3
3
