[Info] supplies information about a command, parameter,
or function in any display window. [Info] provides detailed
information whenever help is needed.
Exit info mode by pressing either [Info], [Back], or [Cancel].

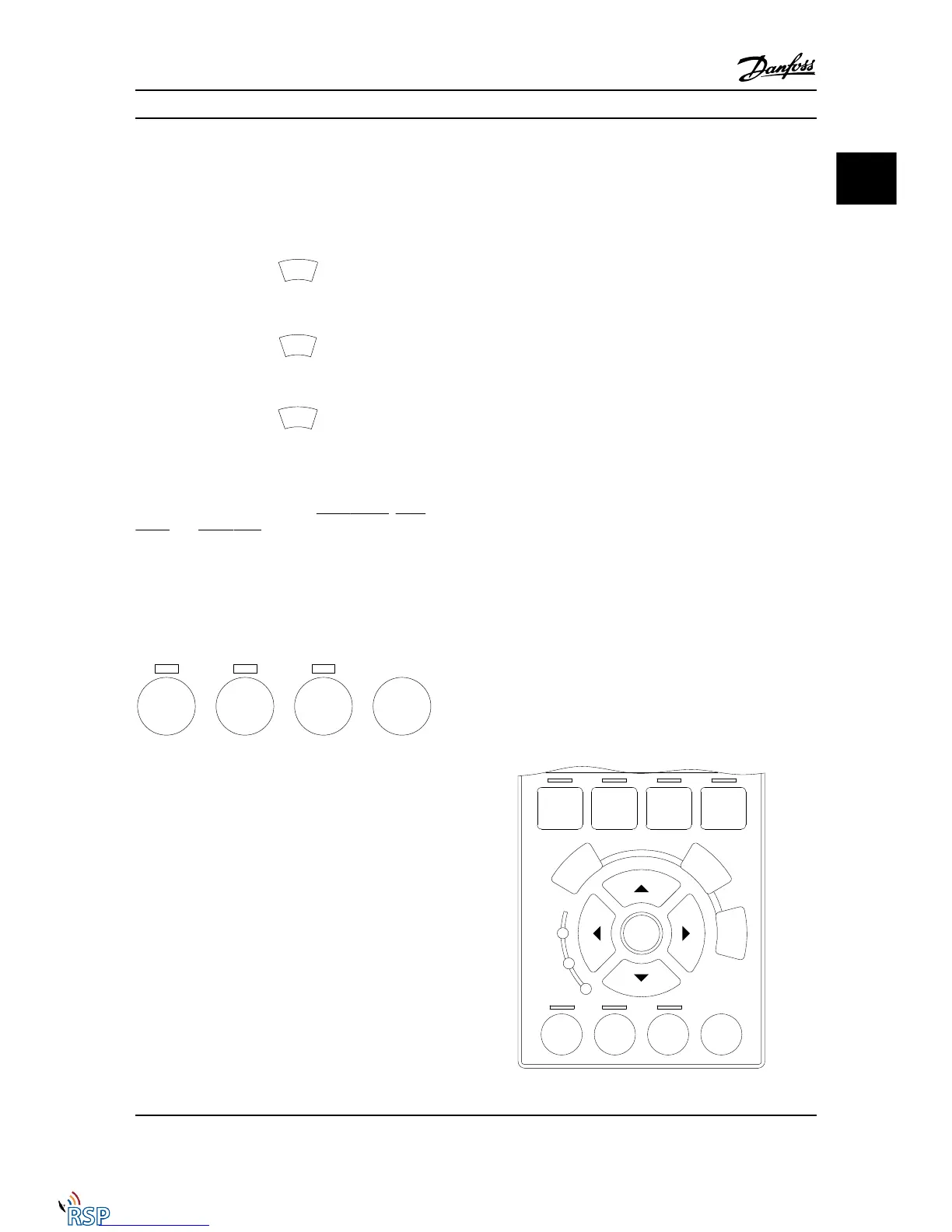

Navigation Keys
The four navigation arrows are used to navigate between
the different choices available in [Quick Menu], [Main
Menu] and [Alarm Log]. Use the keys to move the cursor.
[OK] is used for choosing a parameter marked by the
cursor and for enabling the change of a parameter.
Local Control Key for local control is found at the bottom
of the LCP.
[Hand On] enables control of the Adjustable frequency
drive via the LCP. [Hand on] also starts the motor, and it is
now possible to enter the motor speed data by means of
the arrow keys. The key can be selected as Enable [1] or
Disable [0] via 0-40 [Hand on] Key on LCP
External stop signals activated by means of control signals
or a serial bus will override a “start” command via the LCP.
The following control signals will still be active when
[Hand on] is activated.
•
[Hand on] - [Off] - [Auto on]
•
Reset
•
Coasting stop inverse
•
Reversing
•
Set-up select bit 0 - Set-up select bit 1
•
Stop command from serial communication
•
Quick stop
•
DC brake
[Off] stops the connected motor. The key can be selected
as Enable [1] or Disable [0] via 0-41 [Off] Key on LCP. If no
external stop function is selected and the [Off] key is
inactive, the motor can be stopped by disconnecting the
voltage.
[Auto On] enables the Adjustable frequency drive to be
controlled via the control terminals and/or serial communi-
cation. When a start signal is applied on the control
terminals and/or the bus, the Adjustable frequency drive
will start. The key can be selected as Enable [1] or Disable
[0] via 0-42 [Auto on] Key on LCP.
NOTE!
An active HAND-OFF-AUTO signal via the digital inputs has
higher priority than the control keys [Hand on] – [Auto on].
[Reset]
is used for resetting the Adjustable frequency drive
after an alarm (trip). It can be selected as Enable [1] or
Disable [0] via 0-43 [Reset] Key on LCP.
The parameter shortcut can be carried out by holding
down the [Main Menu] key for 3 seconds. The parameter
shortcut allows direct access to any parameter.
2.1.3
Quick Transfer of Parameter Settings
between Multiple Adjustable
Frequency Drives
Once the set-up of a Adjustable frequency drive is
complete, we recommend that you store the data in the
LCP or on a PC via MCT 10 Set-up Software Tool.
