150 AV500/AV900 2D CAMERA
1. From the Advanced Formatter window, select 1 from the Select an Advanced For-
matter to Modify drop-down list. This is the outgoing host message that will com-
bine the barcode data and scale (protocol index) message.

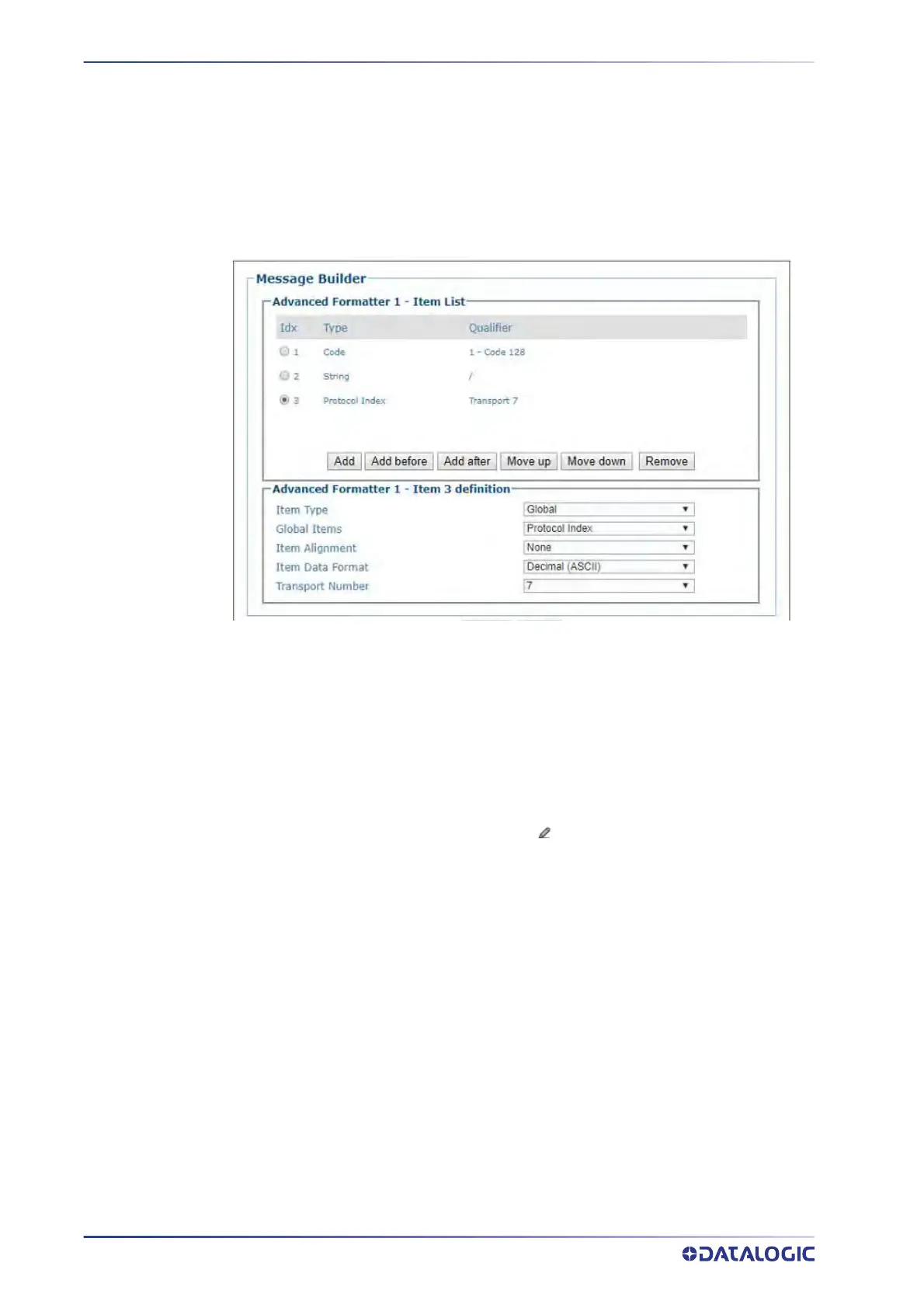

2. Click on the Message Builder link. The Message Buil
der window opens.
3. Set up a Code (system barcode), and a delimitter to fall between the barcode data
and protoc
ol index data from the scale. See “Advanced Formatter | Message
Builder” on page 157 .
4. Click Add and select Code Related for the item type, to define the barcode as the
first part of the message.
5. Select Code from the Code Re
lated Items drop-down.
6. Click Add and select String fo
r the item type, to add a string to separate the code
and the scale data.
7. Select Disabled, Pre
vious Code or Next Code for the Link to Code drop-down.
8. Use the “The Text Entry Tool” on page 81
to create the string.
9. Click Add, to add i
n the scale message (Protocol Index).
10. Select Global from the Item
Type drop-down list.
11. Select Protocol Index from the
Global Items drop-down list.
12. Select None from the Item
Alignment drop-down.
13. Select Decimal (ASCII) from the It
em Data Format drop-down.
14. Select 2 (in this example) from the Transports drop-down list. This
was selected as
the Idx # in Global Settings | Communications | Transports.
