IMAGE SAVING
PRODUCT REFERENCE GUIDE
161
Image Destination List
Select the check box(es) corresponding to the numbered image destination to enable setup.
Image Index n Destination Settings inputs will appear for the image destinations selected.

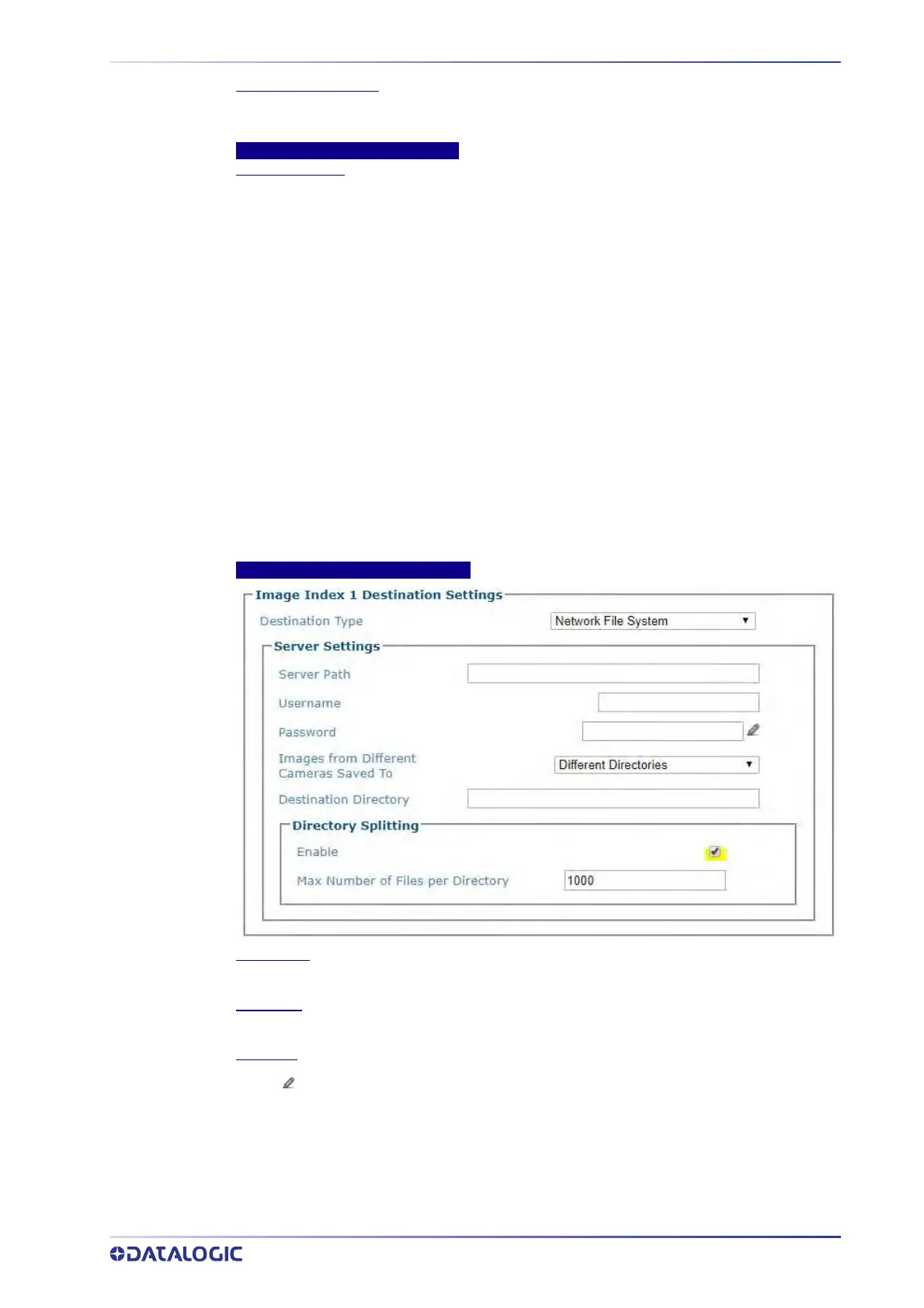

Image Index n Destination Settings
Destination Type
Select File System, FTP Server, External Viewer, or On Camera from the drop-down list to save
to a remote file system server.
•
Network Files System: Reveals options for saving to an external file system folder. You
determine where on your system the images files will be saved. Your IT department will
provide the Server Path, Username, and password. They will also determine how the images
will be saved on their server and determine whether each cameras images will be saved in
Different Directories or all cameras images will be saved to the same location. Their IT
department will also provide the Destination Directory on their server where the images will
be saved. The Directory Splitting options Use the explanation below.
•
FTP Server: Reveals options for save to an FTP server IP Address/Port Number - the IP
address and Port Number where the FTP Server is located will be provided by the customer IT
department
•
External Viewer: Provides a field for the Destination IP Address of the viewer. The External
Viewer is only used as a diagnostic and calibration tool
•
On Camera: Provides options to store images on the camera to be retrieved by your
system. These files can be accessed either through e-Genius under Diagnostics - “Viewing
Camera Images” on page 227 or by connecting to the camera’s on board FTP server. The Host
or Image Ethernet connection can be used to connect to the FTP server.
Username: dluser
Password: plop
Server Settings Network File System
Server Path
Enter the complete path of the server.
Username
Enter a valid username.
Password
Click to activate the “The Text Entry Tool” on page 81 and enter the password required to
access the server.
