IMAGING CALIBR
ATION WIZARD
PRODUCT REFERENCE GUIDE
195
Dual Zone Calibr
ation
1.
If you ha
ve selected
Dual Zone
focusing, and y
ou click the
Imaging Calibr
ation
Wizar
d

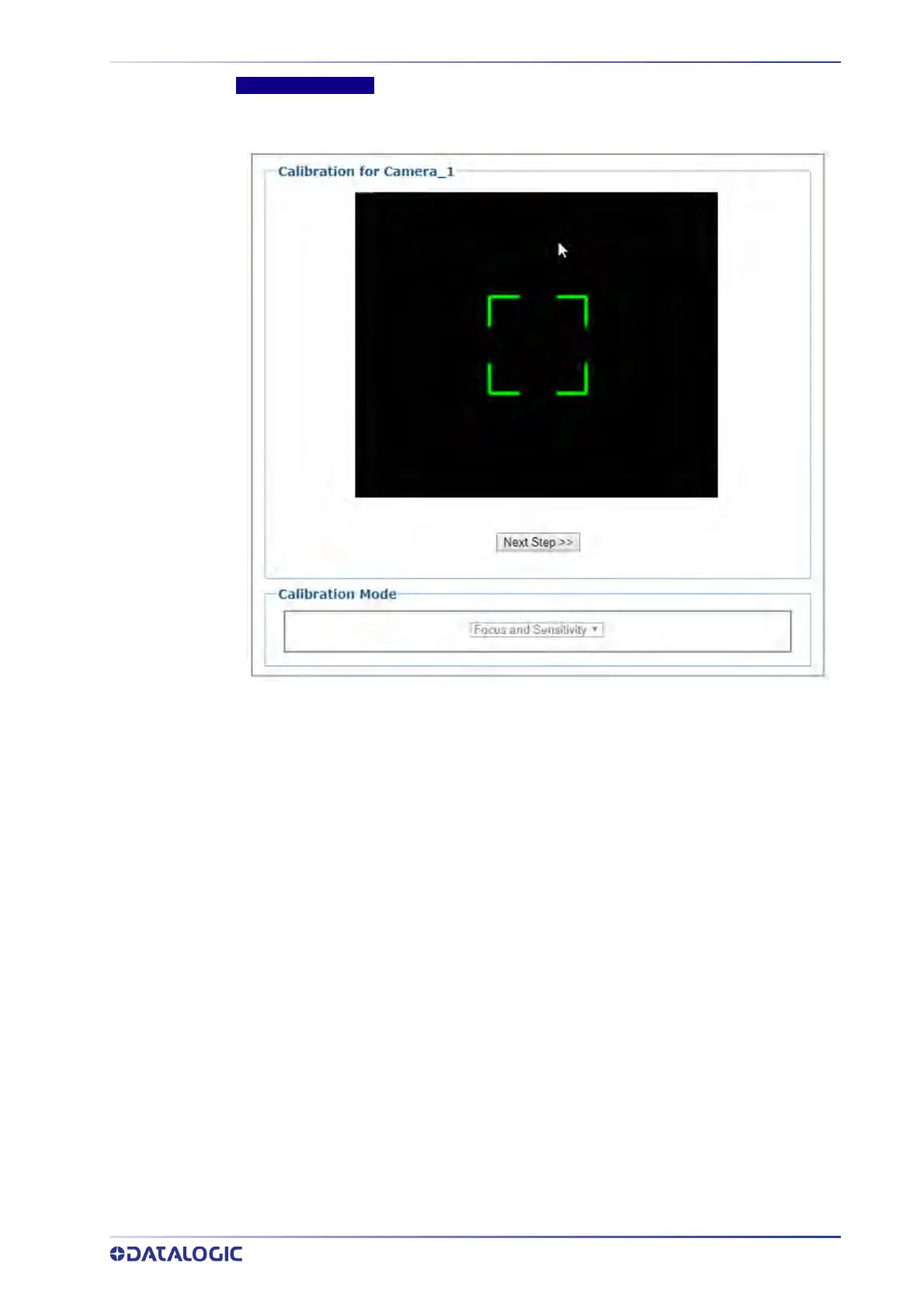

this is the first scr
een you will see. Click
Next St
ep>>
.
2.
Place a Calibration T
arget, or clean bar
code, in the
center of the
f
ar wo
rking
ra
ng
e
. Mak
e sure the check
er board grid, or a clean barcode, is centered in the
green alignment area. Lea
ve the target under the c
amera and
press
Next Step>>
.
