SETTING UP THE S85 PHOTOSENSOR
PRODUCT REFERENCE GUIDE
277

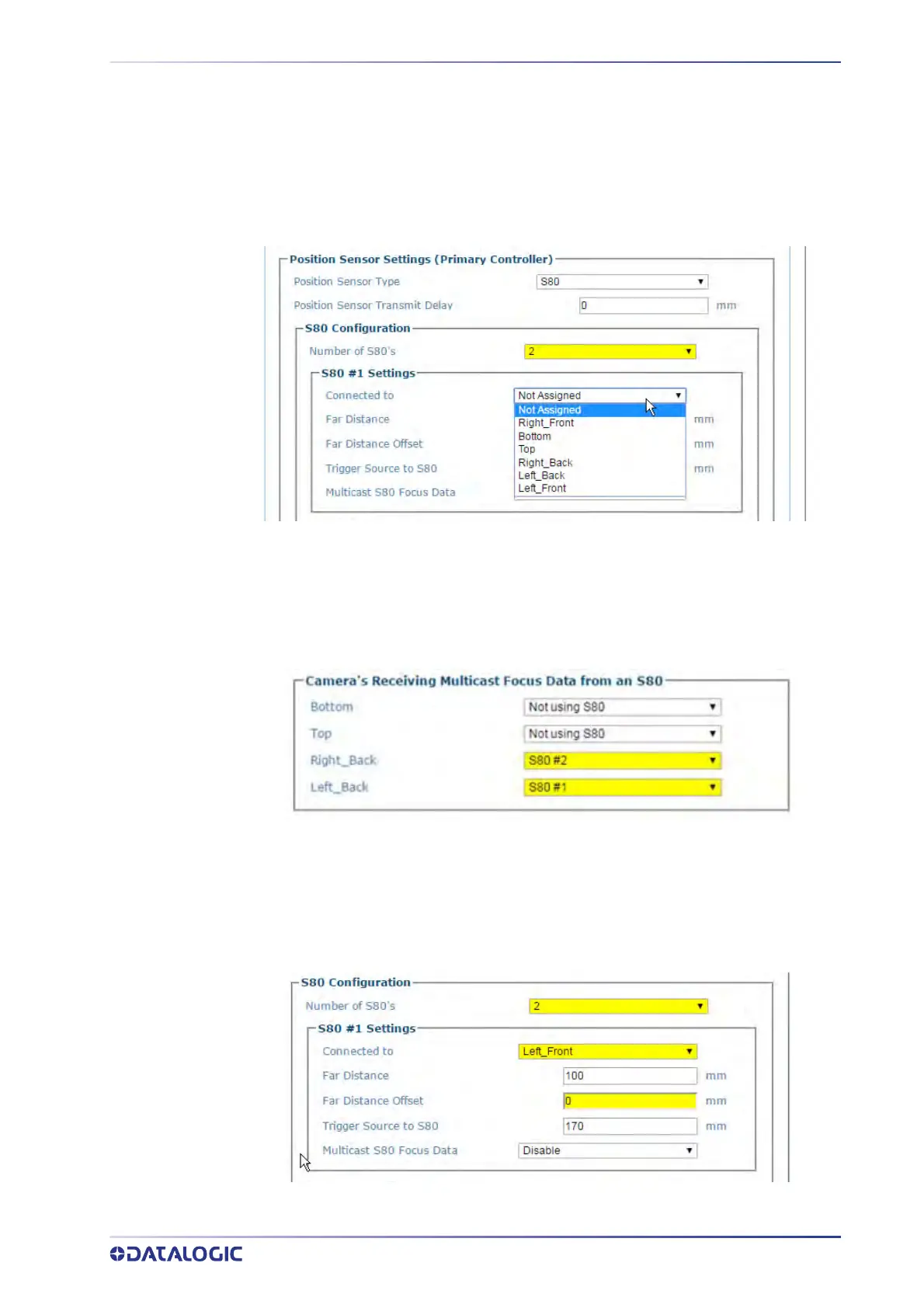

4. Enter the Position Sensor Transmit Delay as 127mm. This is required because the
tach controller camera (with or without an S85 connected) tracks the connected
S85’s and DL light curtain to a point that is 127mm past the S85/LC that’s located
the furthest downstream from the PE (and closet to the first camera scanline).
5. Select None or 1 from the Number of S85’s drop-down.
6. For each S85 used, select the correct camera from the Connected to
drop-down.
7. If the S85 is required to share its focus information with other cameras on the
same side of the conveyor, select Enable from the Multicast S85 Focus Data drop-
down.
8. Once Multicast is enabled, Camera’s Re
ceiving Multicast Focus Data from an S85
options appear.
9. Select from the Multicast Focus Data drop-downs which cameras will use data
from which S85.
10. Measure the distance from the trigger source to the first S85.
11. Enter this value into the T
rigg
er Source to S85 field. In this example 170 has been
entered.
12. Click Update to save your changes.
