INTRODUCTION
10
AV500/AV900 2D CAMERA
A typical reading station may also include:
• Power Supply Systems: The AV500/AV900 requires a 24 Vdc power supply. Usually
each camera has its own power supply system (i. e. PWR-480B).
• External Mirrors: To c
over the requested reading field, the cameras must be posi-
tioned at a given distance from their targets. In order to create reading stations as
small as possible, a deflection mirr
or is often inserted between the target and the
camera. See examples below.

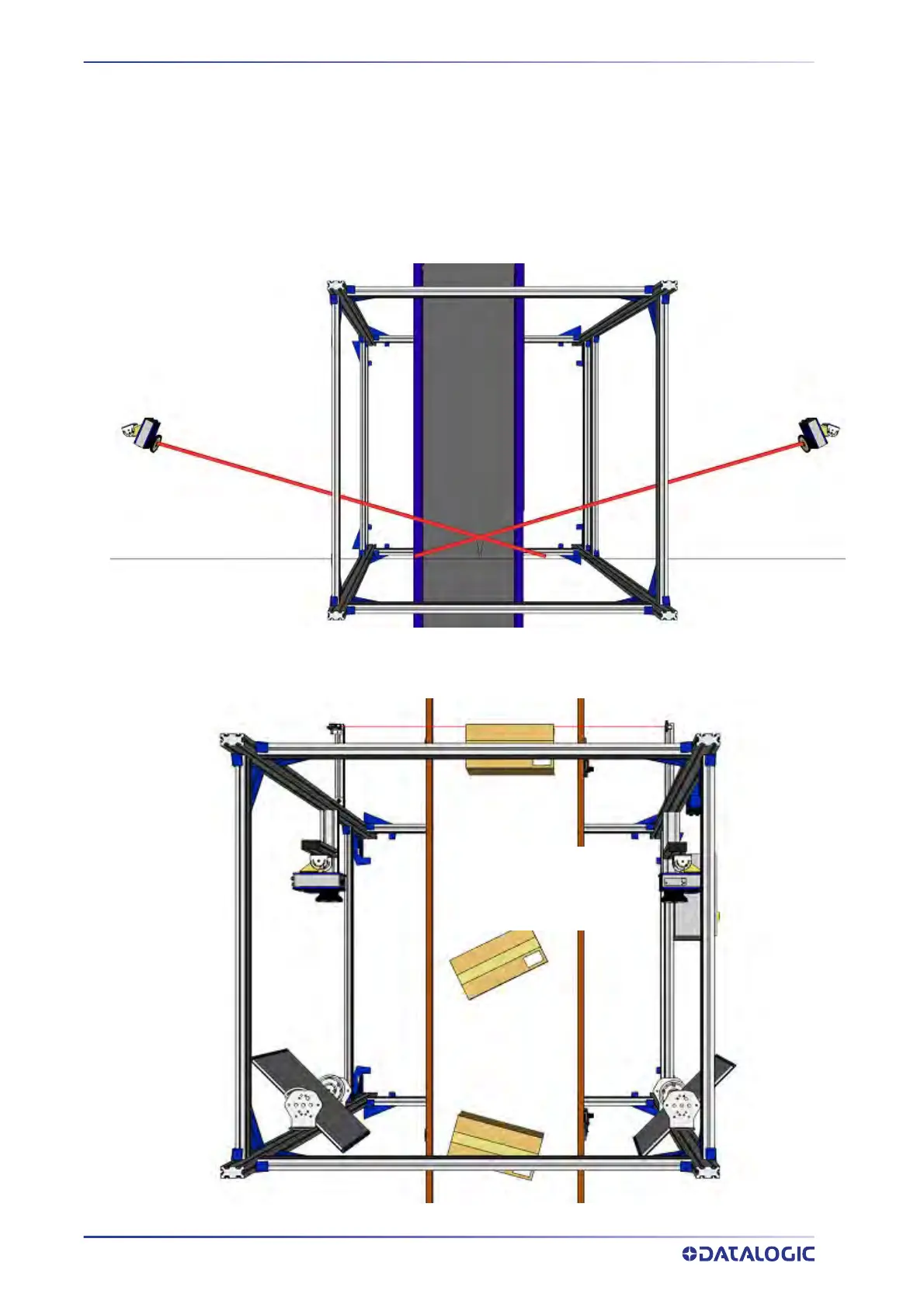

Typical Mounting
Structure
Position of AV500/
AV900’s if 15 degree
angle is required.
15 degrees
Position of AV500/AV900’s
with Mirrors when 15
degree angle is required
using mirrors.
