Figure 15-3 is an example of a basic FRRP topology. Below the figure are the associated CLI commands.

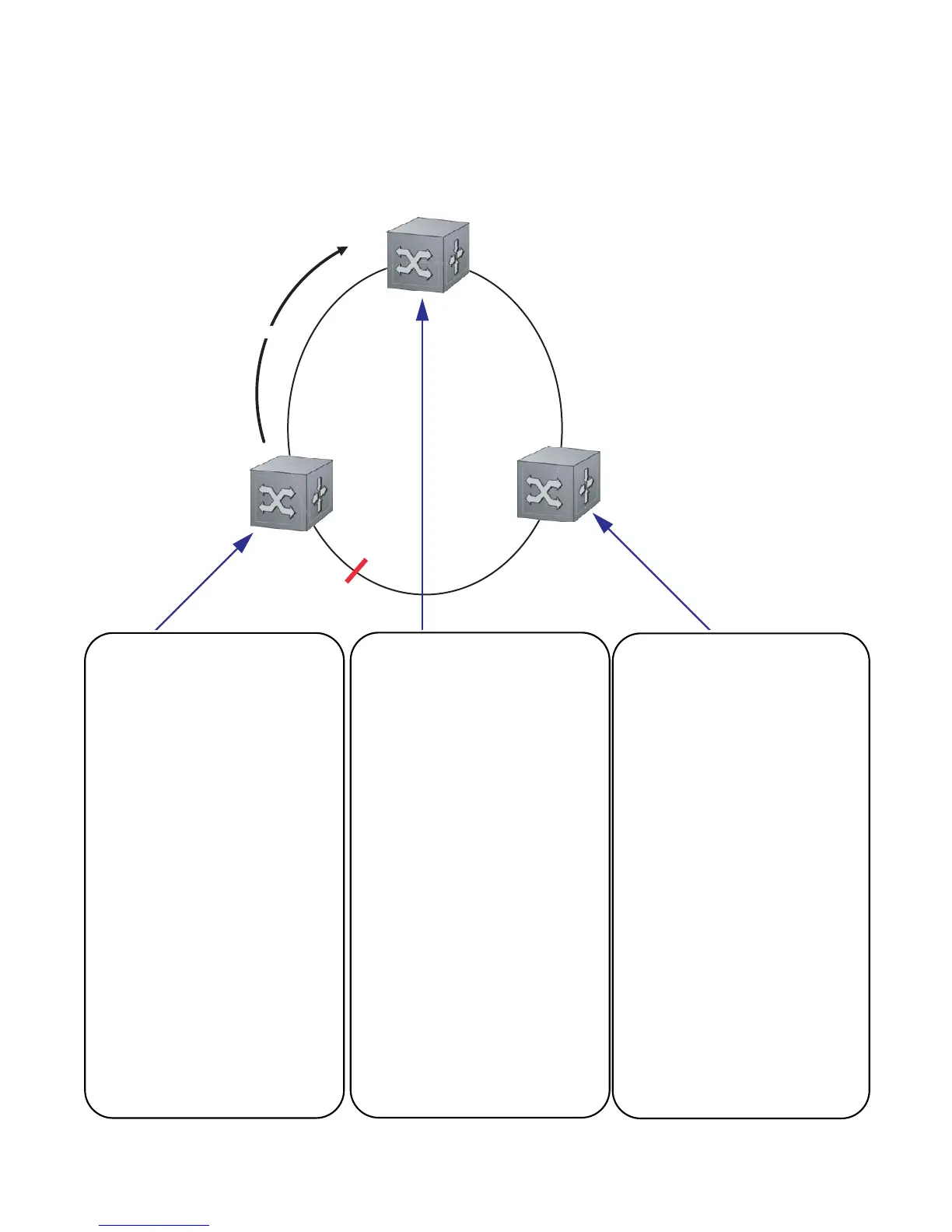

Figure 15-3. Basic Topology and CLI commands
R1 MASTER
interface GigabitEthernet 1/24
no ip address
switchport
no shutdown
!
interface GigabitEthernet 1/34
no ip address
switchport
no shutdown
!
interface Vlan 101
no ip address
tagged GigabitEthernet 1/24,34
no shutdown
!
interface Vlan 201
no ip address
tagged GigabitEthernet 1/24,34
no shutdown
!
protocol frrp 101
interface primary
GigabitEthernet 1/24
secondary GigabitEthernet 1/34
control-vlan 101
member-vlan 201
mode master
no disable
R2 TRANSIT
interface GigabitEthernet 2/14
no ip address
switchport
no shutdown
!
interface GigabitEthernet 2/31
no ip address
switchport
no shutdown
!
interface Vlan 101
no ip address
tagged GigabitEthernet 2/14,31
no shutdown
!
interface Vlan 201
no ip address
tagged GigabitEthernet 2/14,31
no shutdown
!
protocol frrp 101
interface primary
GigabitEthernet 2/14 secondary
GigabitEthernet 2/31 control-vlan
101
member-vlan 201
mode transit
no disable
R3 TRANSIT
interface GigabitEthernet 3/14
no ip address
switchport
no shutdown
!
interface GigabitEthernet 3/21
no ip address
switchport
no shutdown
!
interface Vlan 101
no ip address
tagged GigabitEthernet 3/14,21
no shutdown
!
interface Vlan 201
no ip address
tagged GigabitEthernet 3/14,21
no shutdown
!
protocol frrp 101
interface primary
GigabitEthernet 3/21
secondary GigabitEthernet 3/14
control-vlan 101
member-vlan 201
mode transit
no disable
Ring Direction
Primary
Forwarding
GigE 1/24
Primary
Forwarding
GigE 2/14
Secondary
Blocking
GigE 1/34
Primary
Forwarding
GigE 3/21
Secondary
Forwarding
GigE 2/31
Secondary
Forwarding
GigE 3/14
R2
TRANSIT
R3
TRANSIT
R1
MASTER
