Dell Force10 C150 Configuration Guide

770 | PIM Sparse-Mode
www.dell.com | support.dell.com
PIM-SM Snooping Example
Figure 34-8 shows an example with PIM-SM snooping enabled. When Router A sends a join message to
Router B, the switches forward the join message only to Router B without flooding the message to other
connected routers, such as Routers C and D.

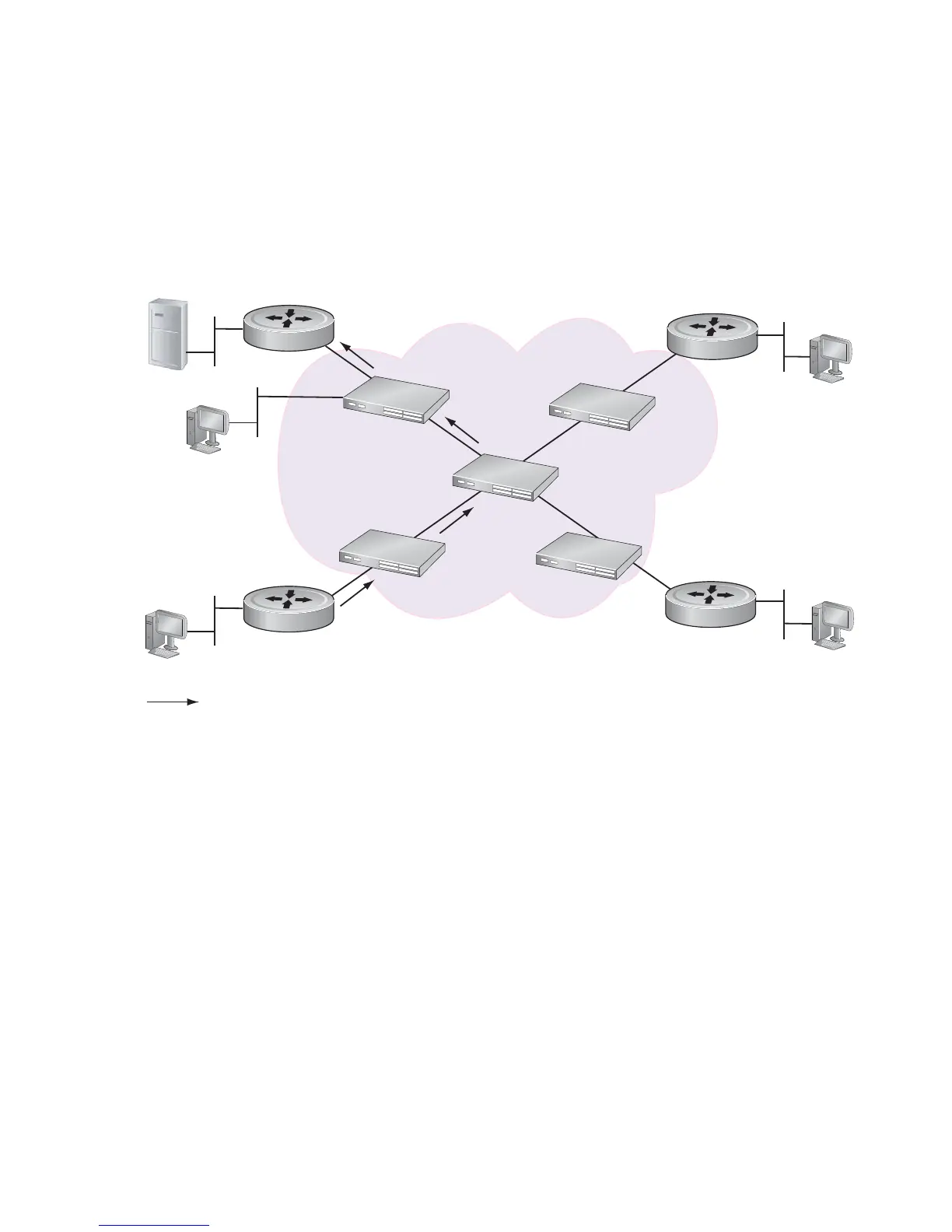

Figure 34-8. PIM-SM Snooping: Join Message Flow
Router A
(*,G) PIM join
IGMP join
Receiver
Router C
Router D
Router B
RP Source
Layer 2 Network
with PIM Snooping
