PIM Dense-Mode | 751
Figure 33-4. Enabling PIM-DM
Display which interfaces are enabled with PIM-DM using the command show ip pim interface from EXEC
Privilege mode, as shown in Figure 33-5.
Figure 33-5. Viewing PIM-SM Enabled Interfaces
Display PIM neighbors for each interface using the command show ip pim neighbor from EXEC Privilege
mode, as shown in Figure 33-6.

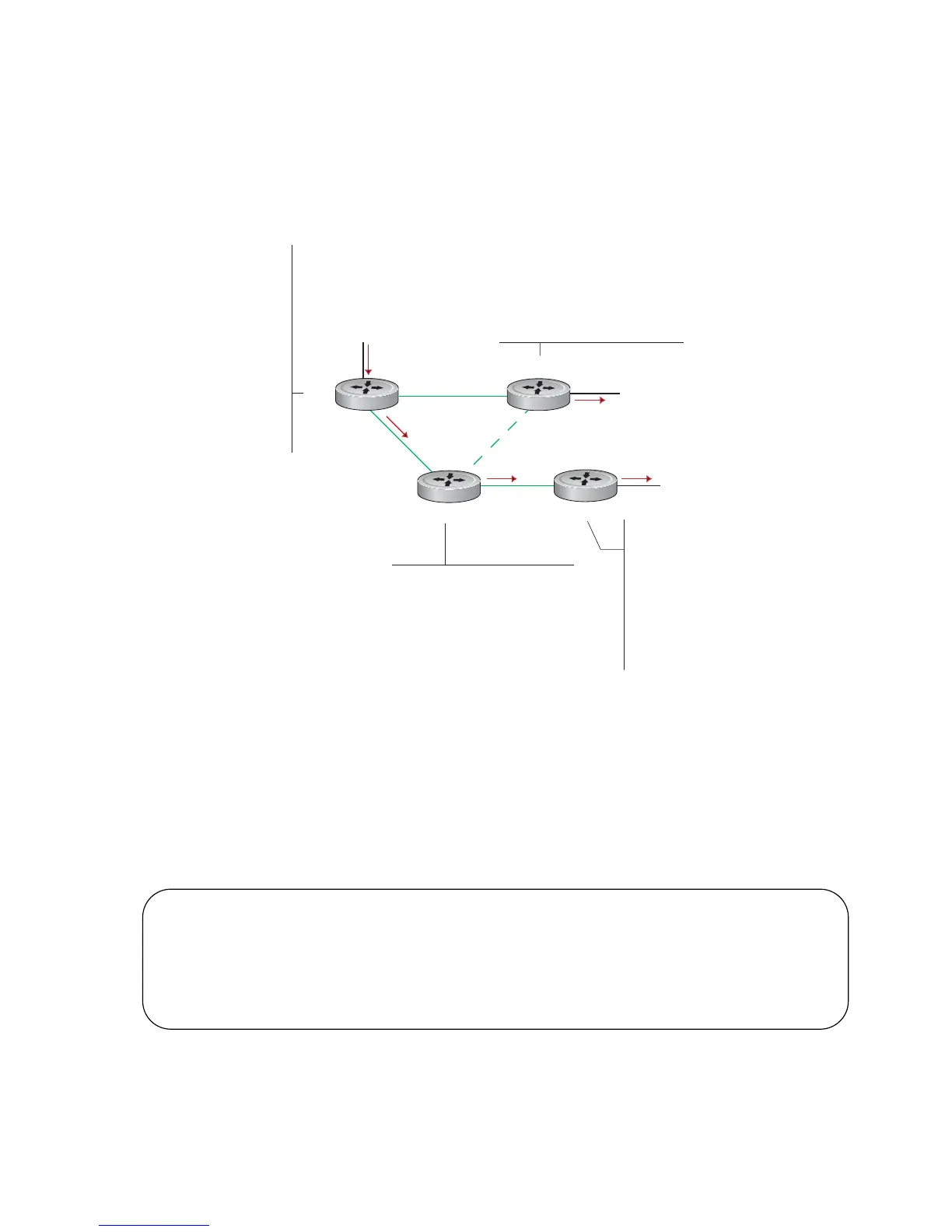

PIM-DM 0
04
Source
Receiver 1
Address :2.1.5.10
R1
R2
R3
R4
Group Address: 239.192.0.1
Receiver 2
Address: 2.1.6.10
3/31
3/34
4/43
2/21
1/13
2/23
1/0
1/12
2/0
3/32
R
1_E600(conf-if-range-gi-1/0,gi-1/12,gi-1/13)#show config
!
i
nterface GigabitEthernet 1/0
description Connection to Ixia
ip address 2.1.0.1/24
ip pim dense-mode
no shutdown
!
i
nterface GigabitEthernet 1/12
ip address 2.1.1.1/24
ip pim dense-mode
no shutdown
!
i
nterface GigabitEthernet 1/13
ip address 2.1.2.1/24
ip pim dense-mode
no shutdown
R
1_E600(conf-if-range-gi-1/0,gi-1/12,gi-1/13)#router rip
R
1_E600(conf-router_rip)#show config
!
r
outer rip
network 2.0.0.0
R3_E600(conf-if-range-gi-3/31-32,gi-3/34)#show config
!
interface GigabitEthernet 3/31
ip address 2.1.2.2/24
ip pim dense-mode
no shutdown
!
interface GigabitEthernet 3/32
ip address 2.1.3.2/24
ip pim dense-mode
no shutdown
!
interface GigabitEthernet 3/34
ip address 2.1.4.1/24
ip pim dense-mode
no shutdown
R3_E600(conf-if-range-gi-3/31-32,gi-3/34)#router rip
R3_E600(conf-router_rip)#show config
!
router rip
network 2.0.0.0
4/0
R2_E300(conf-if-range-gi-2/0,gi-2/21,gi-2/23)#show config
!
interface GigabitEthernet 2/0
ip address 2.1.6.1/24
ip pim dense-mode
no shutdown
!
interface GigabitEthernet 2/21
ip address 2.1.1.2/24
ip pim dense-mode
no shutdown
!
interface GigabitEthernet 2/23
ip address 2.1.3.1/24
ip pim dense-mode
no shutdown
R2_E300(conf-if-range-gi-2/0,gi-2/21,gi-2/23)#router rip
R2_E300(conf-router_rip)#show config
!
router rip
network 2.0.0.0
R4_E300(conf-if-range-gi-4/0,gi-4/43)#show config
!
interface GigabitEthernet 4/0
ip address 2.1.5.1/24
ip pim dense-mode
no shutdown
!
interface GigabitEthernet 4/43
ip address 2.1.4.2/24
ip pim dense-mode
no shutdown
R4_E300(conf-if-range-gi-4/0,gi-4/43)#router rip
R4_E300(conf-router_rip)#show config
!
router rip
network 2.0.0.0
R1_E600(conf)#do show ip pim interface
Address Interface Ver/ Nbr Query DR DR
Mode Count Intvl Prio
2.1.0.1 Gi 1/0 v2/D 0 30 1 2.1.0.1
2.1.1.1 Gi 1/12 v2/D 1 30 1 2.1.1.1
2.1.2.1 Gi 1/13 v2/D 1 30 1 2.1.2.1
R1_E600(conf)#
