IGMP version 2
IGMP version 2 improves upon version 1 by specifying IGMP Leave messages, which allows hosts to
notify routers that they no longer care about traffic for a particular group. Leave messages reduce the
amount of time that the router takes to stop forwarding traffic for a group to a subnet (leave latency) after
the last host leaves the group. In version 1 hosts quietly leave groups, and the router waits for a query
response timer several times the value of the query interval to expire before it stops forwarding traffic.
To receive multicast traffic from a particular source, a host must join the multicast group to which the
source is sending traffic. A host that is a member of a group is called a receiver. A host may join many
groups, and may join or leave any group at any time. A host joins and leaves a multicast group by sending
an IGMP message to its IGMP Querier. The querier is the router that surveys a subnet for multicast
receivers, and processes survey responses to populate the multicast routing table.
IGMP messages are encapsulated in IP packets, as shown in Figure 19-1.

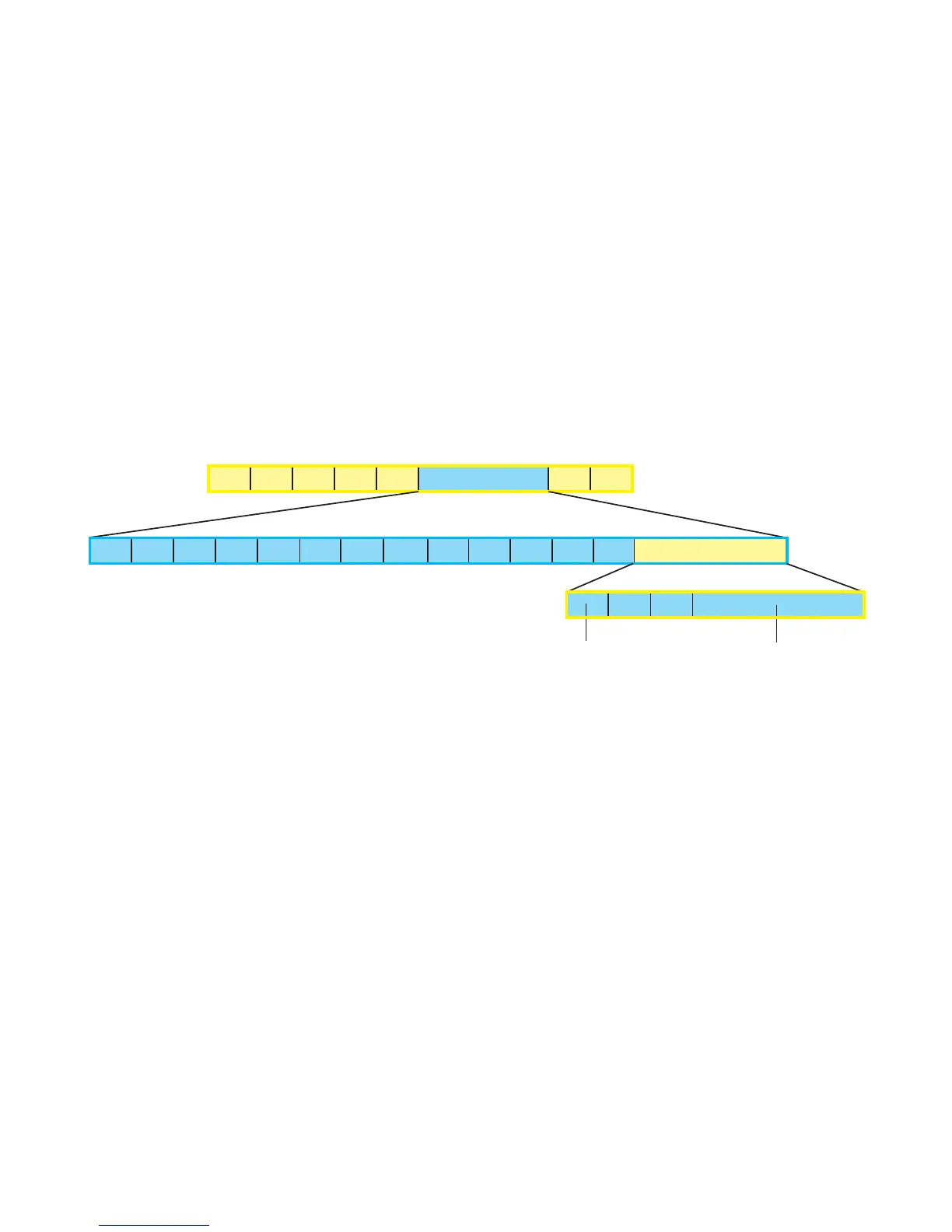

Figure 19-1. IGMP version 2 Packet Format
Joining a Multicast Group
There are two ways that a host may join a multicast group: it may respond to a general query from its
querier, or it may send an unsolicited report to its querier.
Responding to an IGMP Query
1. One router on a subnet is elected as the querier. The querier periodically multicasts (to
all-multicast-systems address 224.0.0.1) a general query to all hosts on the subnet.
2. A host that wants to join a multicast group responds with an IGMP Membership Report that contains
the multicast address of the group it wants to join (the packet is addressed to the same group). If
multiple hosts want to join the same multicast group, only the report from the first host to respond
reaches the querier, and the remaining hosts suppress their responses (see Adjusting Query and
Response Timers on page 410 for how the delay timer mechanism works).
3. The querier receives the report for a group and adds the group to the list of multicast groups associated
with its outgoing port to the subnet. Multicast traffic for the group is then forwarded to that subnet.
Version
(4)
IHL
TOS
(0xc0)
Total Length
Flags
Frag Offset
IGMP Packet
Header
Checksum
Src IP Addr
TTL
(1)
Protocol
(2)
Dest IP Addr
Options
(Router Alert)
Padding
Preamble
Start Frame
Delimiter
Destination MAC
Source MAC
Ethernet Type
IP Packet
Padding
Type
Max. Response
Time
Group Address
Checksum
Code: 0x11: Membership Query
0x12: IGMP version 1 Membership Report
0x16: IGMP version 2 Membership Report
0x17: IGMP Leave Group
8 bits
16 bits
May be zero and ignored by hosts for
general queries or contain a group
address for group-specific queries
FCS
