Digi TransPort WR31 User Manual

Configure IP routing and forwarding Default Route n parameters
Digi TransPort WR Routers User Guide 373

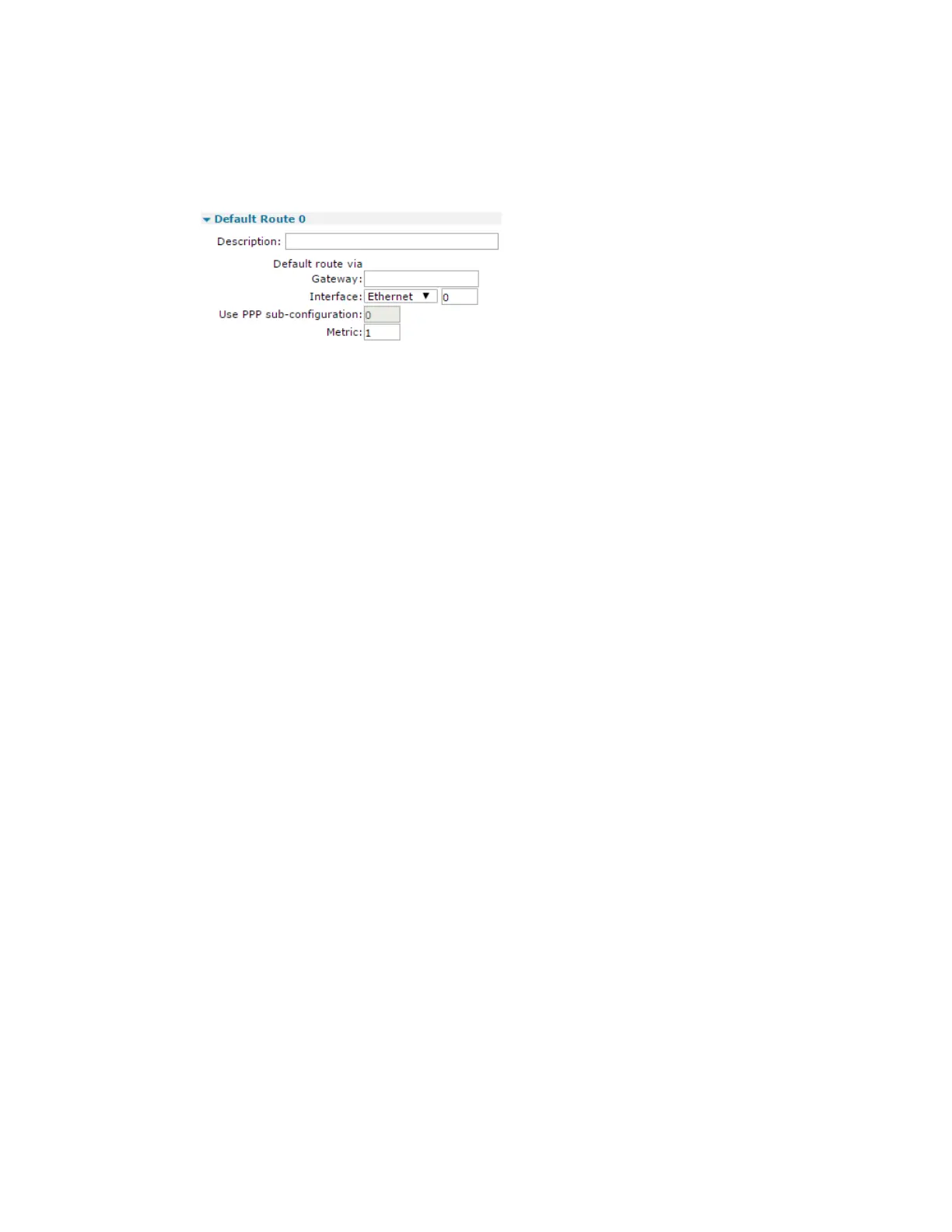

Default Route n parameters
The following web pages and associated command line commands set up default IP routes that
route non-local IP addresses not specified in a static route. The parameters are identical to those on
the static route pages with the exception that there are no IP address or Mask parameters.
Description
Assigns a convenient and memorable description for the route.
Default route via:
Gateway a.b.c.d
Used to override the default gateway IP address configured for the Ethernet interfaces. Packets
matching the route will use the gateway address specified in the route rather than the address
specified on the Ethernet interface configuration page. This parameter does not apply to routes
using PPP interfaces.
Interface x,y
The interface and interface number for routing the packets. Available options are:
• None
• PPP
• Ethernet
• Tunnel
Metric n
The routing metric to use when the interface is connected. This should have a value between 1
and 16. It selects which route to use when the subnet for a packet matches more than one of the
IP route entries.
Each route may be assigned a connected metric and a disconnected metric. The connected
metric parameter specifies the metric for a route whose interface is active. The disconnected
metric specifies the metric for a route whose interface is inactive. Normally both values should
be the same, but in some advanced routing scenarios, it is necessary to use different values.
If a particular route fails, it will automatically have its metric set to 16 which means that it is
temporarily deemed as being out of service. The default out of service period is set by the IP
route out of service parameter. Note that this default period may be overwritten in certain
situations such as when a firewall stateful inspection rule specifies a different period. When a
route is out of service, the router uses any alternative routes (with matching subnets) first.

Digi TransPort WR31 Specifications

General

3G	Yes
4G	-
2G standards	EDGE, GPRS
3G standards	HSPA+
GSM bands supported	850, 900, 1800, 1900 MHz
UMTS bands supported	850, 900, 1700, 1900, 2100 MHz
Antennas quantity	2
Antenna connector type	SMA dipole
Security algorithms	HTTPS, SNMP, SNMPv3, SSH
USB 2.0 ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Product type	Tabletop router
Product color	Black
Housing material	Aluminum
Output voltage	9 - 30 V
Power source type	DC
Power consumption (typical)	4 W
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-34 - 74 °C
Operating relative humidity (H-H)	5 - 95 %
WLAN data transfer rate (max)	- Mbit/s

Weight and Dimensions

Depth	127 mm
Width	89 mm
Height	51 mm
Weight	500 g
