Digi TransPort WR31 User Manual

Configure alarms Event Settings parameters
Digi TransPort WR Routers User Guide 630

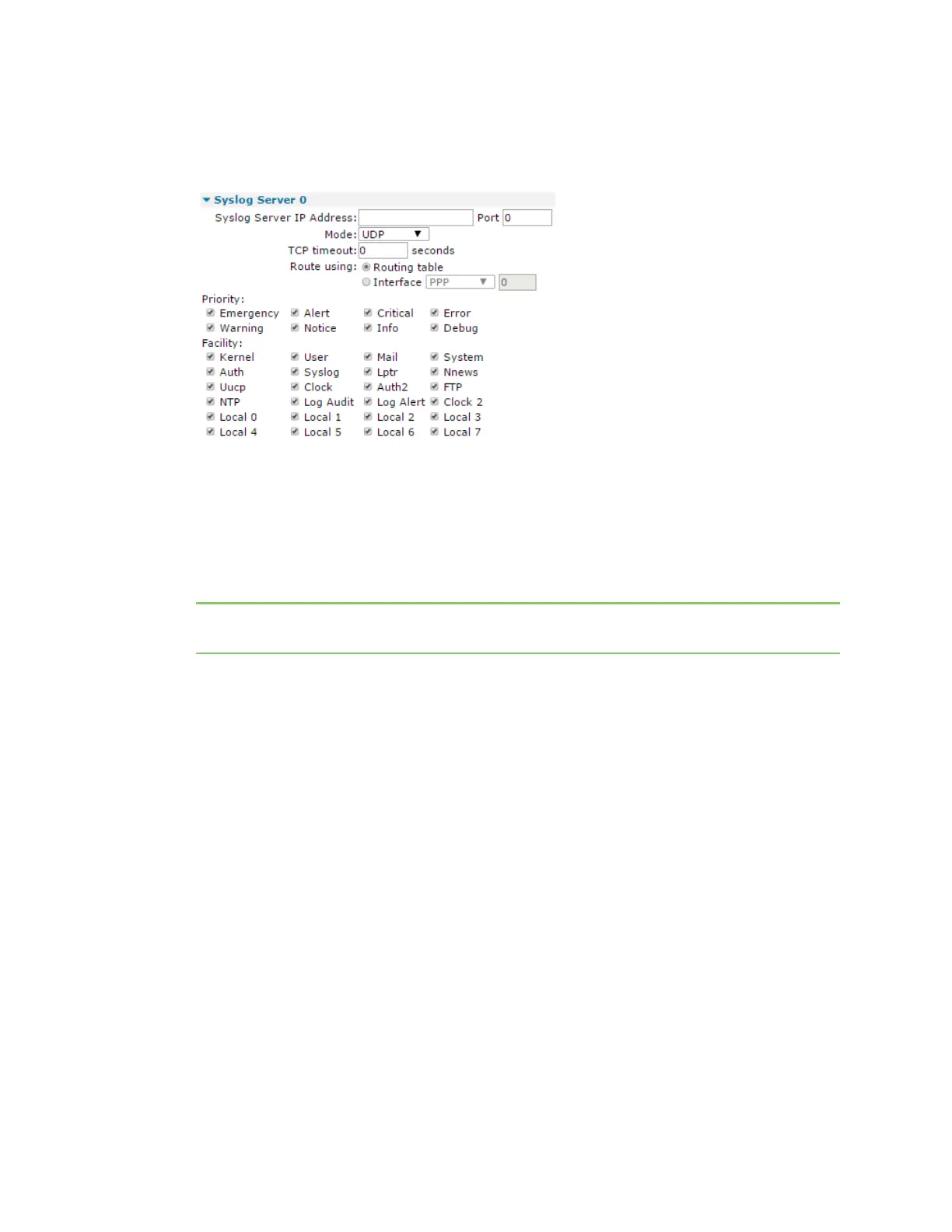

Syslog Server n parameters
This section describes the configuration of the router for defining the Syslog server to send
messages to.
Syslog Server IP Address
The IP address of the server.
Port
The port to use.
Note The following three items (Mode, TCP timeout, and Route) only appear on routers with TCP
logging software option enabled, which is not a common option.
Mode
There are currently three supported communication modes; these are selected from a drop-
down list and are TCP, UDP, and a protocol described in IETF RFC 3195.
TCP timeout s seconds
For TCP communications, this parameter sets the timeout on the socket.
Route using
These radio buttons select which method of establishing a route to the server to use.
Routing table
When this radio button is selected, the routing table determines the interface that to use for
transmitting the syslog message.
Interface x,y
If you choose to not use the routing table, you can select an interface type (PPP or Ethernet)
from the drop-down selection box, and the interface instance number can be typed into the
adjoining text entry box. That interface then determines the route.

Digi TransPort WR31 Specifications

General

3G	Yes
4G	-
2G standards	EDGE, GPRS
3G standards	HSPA+
GSM bands supported	850, 900, 1800, 1900 MHz
UMTS bands supported	850, 900, 1700, 1900, 2100 MHz
Antennas quantity	2
Antenna connector type	SMA dipole
Security algorithms	HTTPS, SNMP, SNMPv3, SSH
USB 2.0 ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Product type	Tabletop router
Product color	Black
Housing material	Aluminum
Output voltage	9 - 30 V
Power source type	DC
Power consumption (typical)	4 W
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-34 - 74 °C
Operating relative humidity (H-H)	5 - 95 %
WLAN data transfer rate (max)	- Mbit/s

Weight and Dimensions

Depth	127 mm
Width	89 mm
Height	51 mm
Weight	500 g
