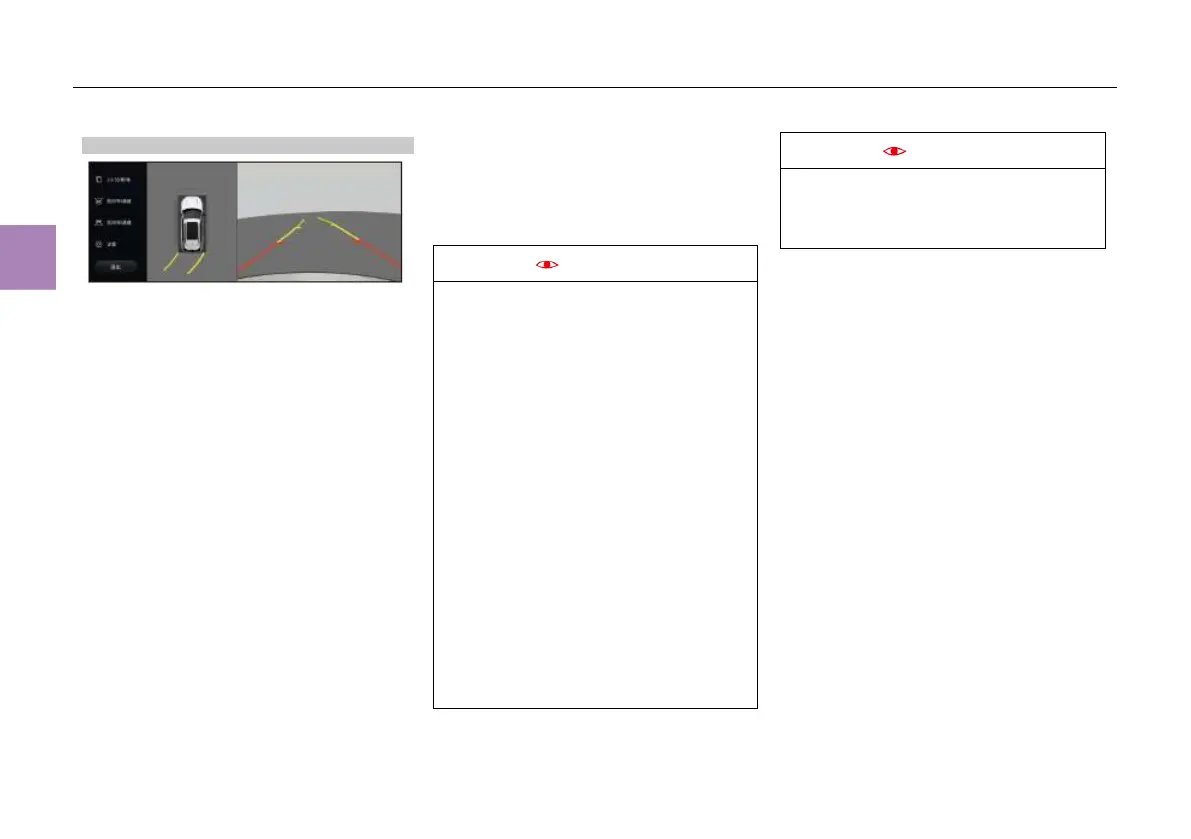

Parking assist lines
In the panoramic image+2D image mode, the
dynamic auxiliary lines are superimposed on the
single front/rear view:
● Red line zone: about 0~0.35m from the rear
bumper of the vehicle. It is the warning zone
where the vehicle should be stopped
immediately.
● Yellow line zone: about 0.35~0.9m from the
front/rear bumper of the vehicle. It is the
buffer zone where the vehicle should be
slowed down.
● Green line zone: about 0.9~3 m from the
front/rear bumper of the vehicle. It is the safe
zone.
● The lines on both sides are about 0.2m away
from the left and right sides of the vehicle
body.
In the panoramic image+2D image mode, when
the steering wheel is turned, the dynamic
auxiliary lines (as shown in the panoramic
image+rear view above) will occur indicating the
general track of vehicle movement, and vary with
the steering wheel angle.
● The width between two reversing auxiliary
lines is larger than the actual vehicle
width.
● The rear view static auxiliary lines will
slightly deflect rightwards because the
reverse camera is not installed in the
middle.
● The positions of the auxiliary lines
displayed on the screen will vary with the
vehicle load (number of passengers,
luggage weight, etc.). When driving the
vehicle, always check the surroundings of
the vehicle.
● Due to the vision disparity of each person,
the movement of the vehicle and different
shapes of obstacles, the distance seen
visually on the display may be different
from the actual distance.
● During reversing from flat ground toward
uphill, the actual distance to the obstacle
is shorter than that seen on the display.
Be careful not to hit objects in the
reversing track during reversing.
Due to the blind spot in the field of view of the
camera, the images near the front/rear
bumper or near the four corners of the
vehicle cannot be displayed on the AVM.
Operation instructions of AVM
When the vehicle power is switched to “ON”
mode, the system will be enabled and initialized.
During the system initialization, the displayed
image may be unstable.
When the temperature is too high/low or the light
is too bright/dark, the display may not be able to
show the object clearly, which shall not be
considered as a fault.
Shadow of an object may be shown on the
display. This is due to the reflection of This is not
a fault, but is caused by the sunlight reflection of
bumper.
Screen may flash under fluorescence, which
shall not be considered as a fault.
The color of object shown on the display may be
different from the actual color.
If the camera is covered with foreign objects
such as rain, dirt and snow, the image on the
display may be unclear. Please clean the
camera in time.
