Duplo DUPRINTER DP-430 - Removal of the Scanner Outer Cover

109
z Exterior
chap.3

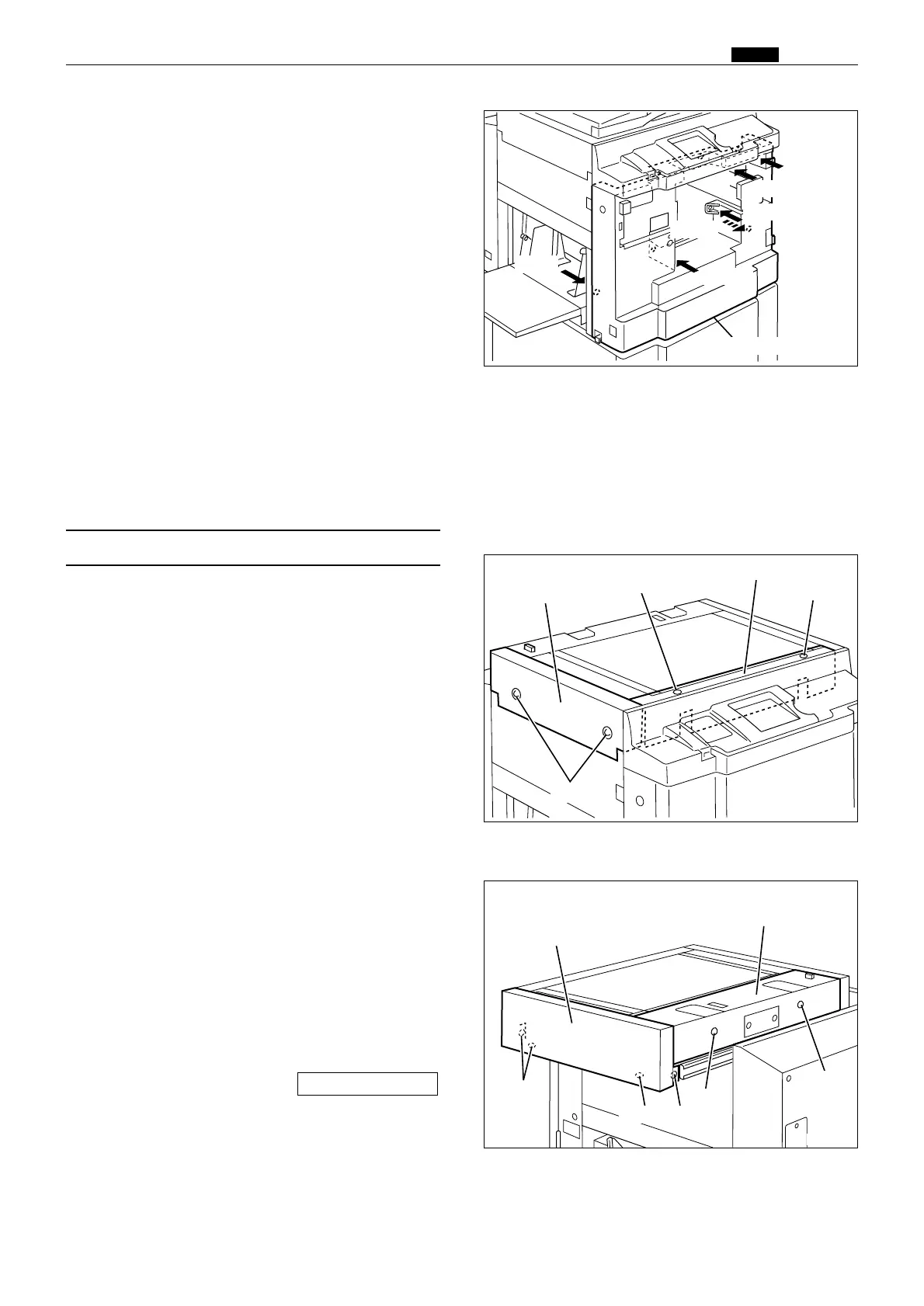

(3) Removal of Scanner Outer Cover
440034
Side cover L
Screw
440035
Screw
¡ Remove the Front cover
1) Remove the 2 screws indicated, then remove
the front cover.
¡ Remove the Side cover L
1) Remove the 2 screws indicated, then remove
the side cover L.
¡ Remove the Side cover R
1) Press the scanner switch to slide the scanner
to its far position.
2) Remove the 4 screws indicated, then remove
the side cover R.
¡ Remove the Rear cover
1) Remove the document cover.
2) Remove the 2 screws indicated, then remove
the rear cover.
\See page 108
Screw
Screws
Front cover
Side cover R
Rear cover
Screw
Screw
440033
Screws
Front cover 2
3) Remove the 6 screws indicated, then remove the
front cover 2.
Screw
Screw
Screw
Screw
Screw
Screw
Screw
