m Drum Section
chap.3

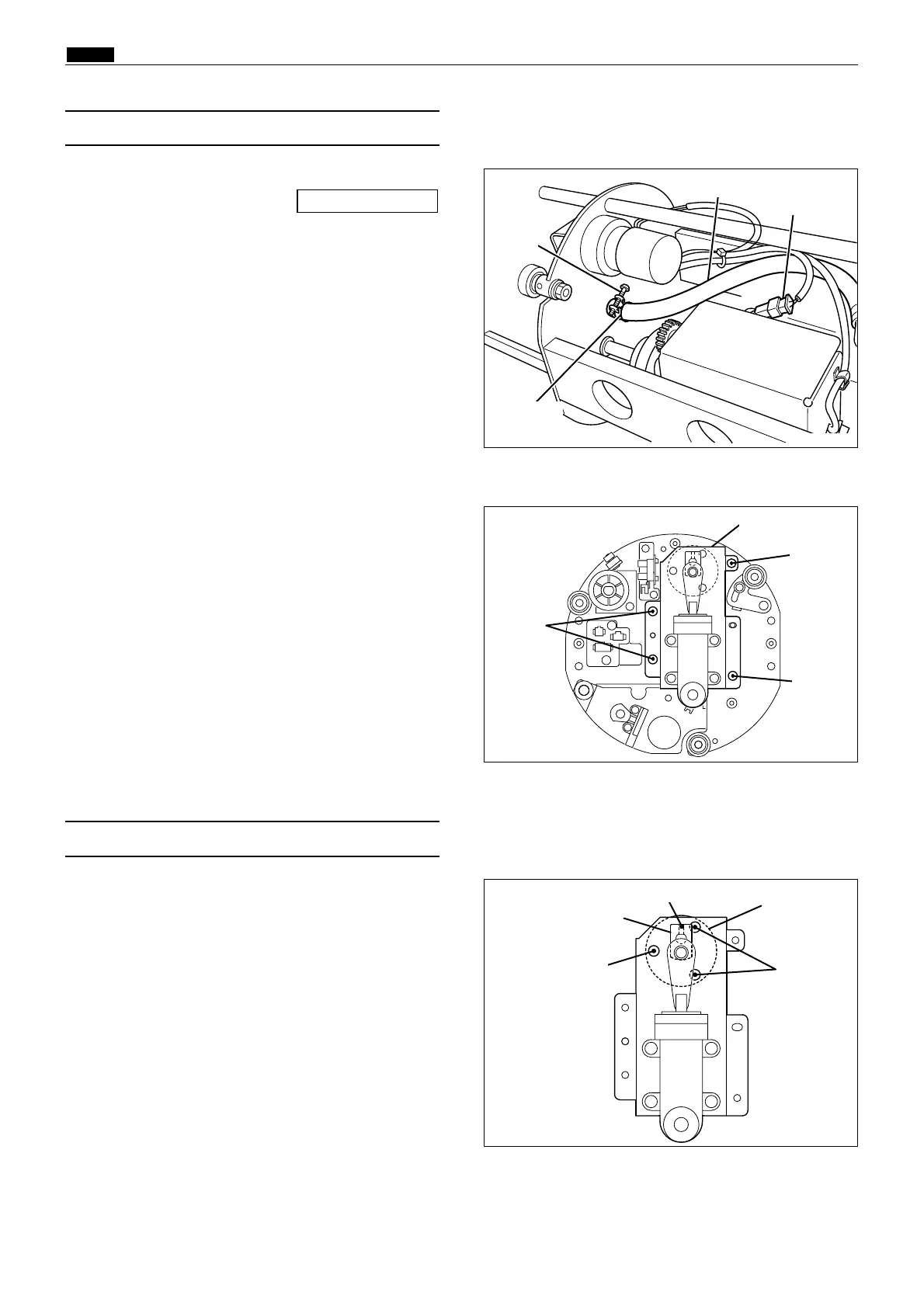

(7) Removal of Ink Pump
(8) Removal of Ink Motor
1) Remove the inner frame.
2) Loosen the screw on the hose band to remove the
hose.
3) Pull out the connector.
\See page 143
4) Remove 4 screw to take out the ink pump.
1) Remove the ink pump.
2) Loosen the set screw to remove the collar.
3) Remove 3 screws to take out the motor.
Hose band
Screw
Hose
Screw
Ink pump
Screw
Set screw
Collar
Motor
Screws
440094
440095
440096
Connector
Screws
Screw
