160
c Paper Feed Section
chap.4
(4)

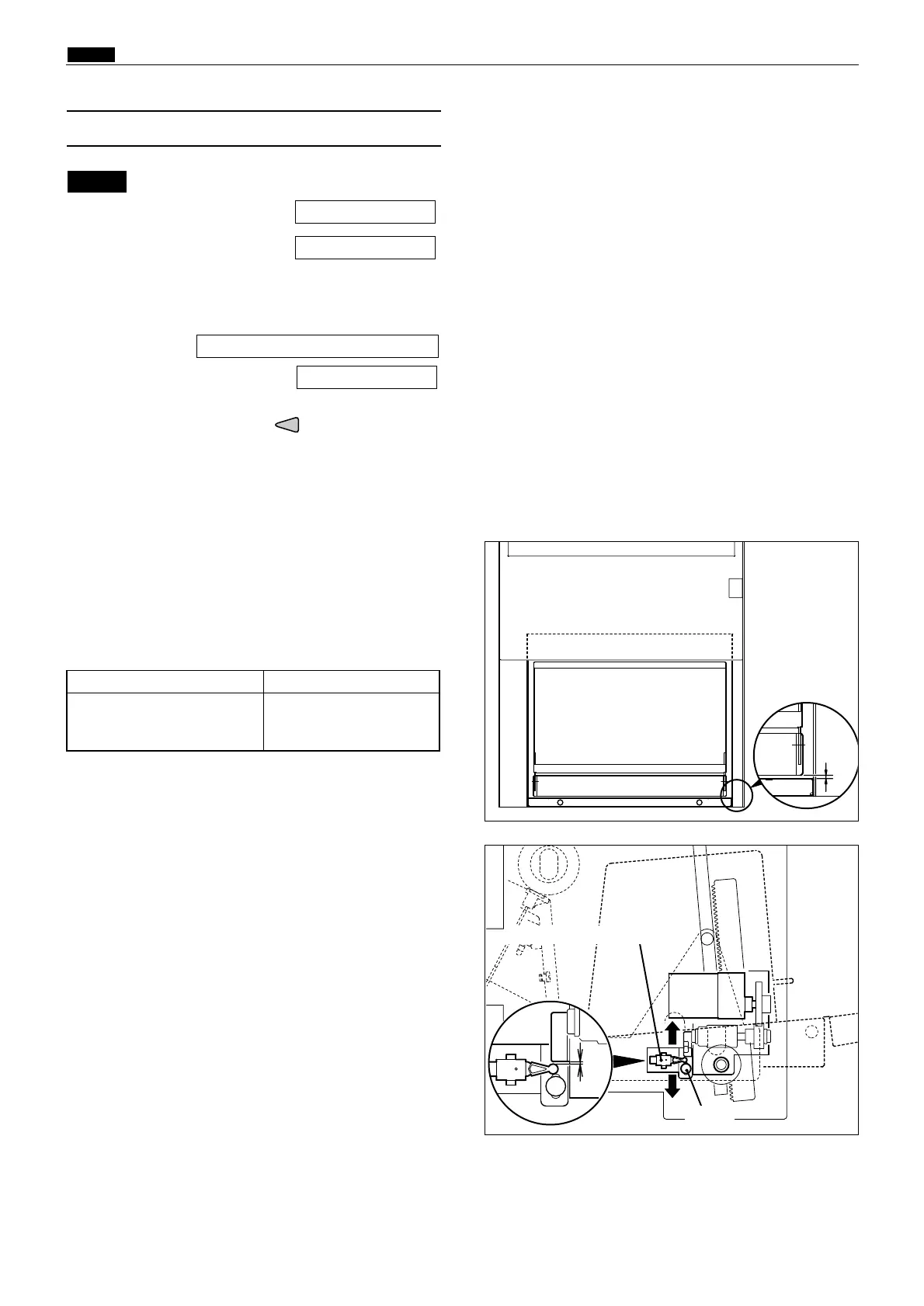

Adjusting the Elevator Bottom Limit Switch
¡For description of operation.
¡For removal.
Adjustment method
1) Access HELP mode H-08.
For the accessing HELP modes:
2) Press and hold down the "down" PRINTING
SPEED ADJUSTMENT key until the paper feed
tray is at its bottom position. The elevator motor
will run (i.e. the paper feed tray will descend) for
as long as the key is held down.
3) Check that the dimension indicated in the figure
at right conforms to the value shown below.
\See page 213
HELP mode H-08 \ see p.221
\See page 127
\See page 72
NOTE :
If the feed length is not the standard value
1) Loosen the screws, then adjust the bottom limit
switch to a position that yields the standard
clearance value.
cMoving the sensor in the direction shifts the
bottom position downward.
dMoving the sensor in the direction shifts the
bottom position upward.
2) After adjustment, tighten the screws.
Standard value
Standard valueItem
Paper feed tray clearance in
bottom limit position
5mm
440161
440120
5mm
Elevator bottom limit switch
Screw
To Next Page
