Duplo DUPRINTER DP-430 - Removal of Timing Roller; Removal of Long Paper Unit(LPU)

131
v Paper Feed Section
chap.3
440149
440150

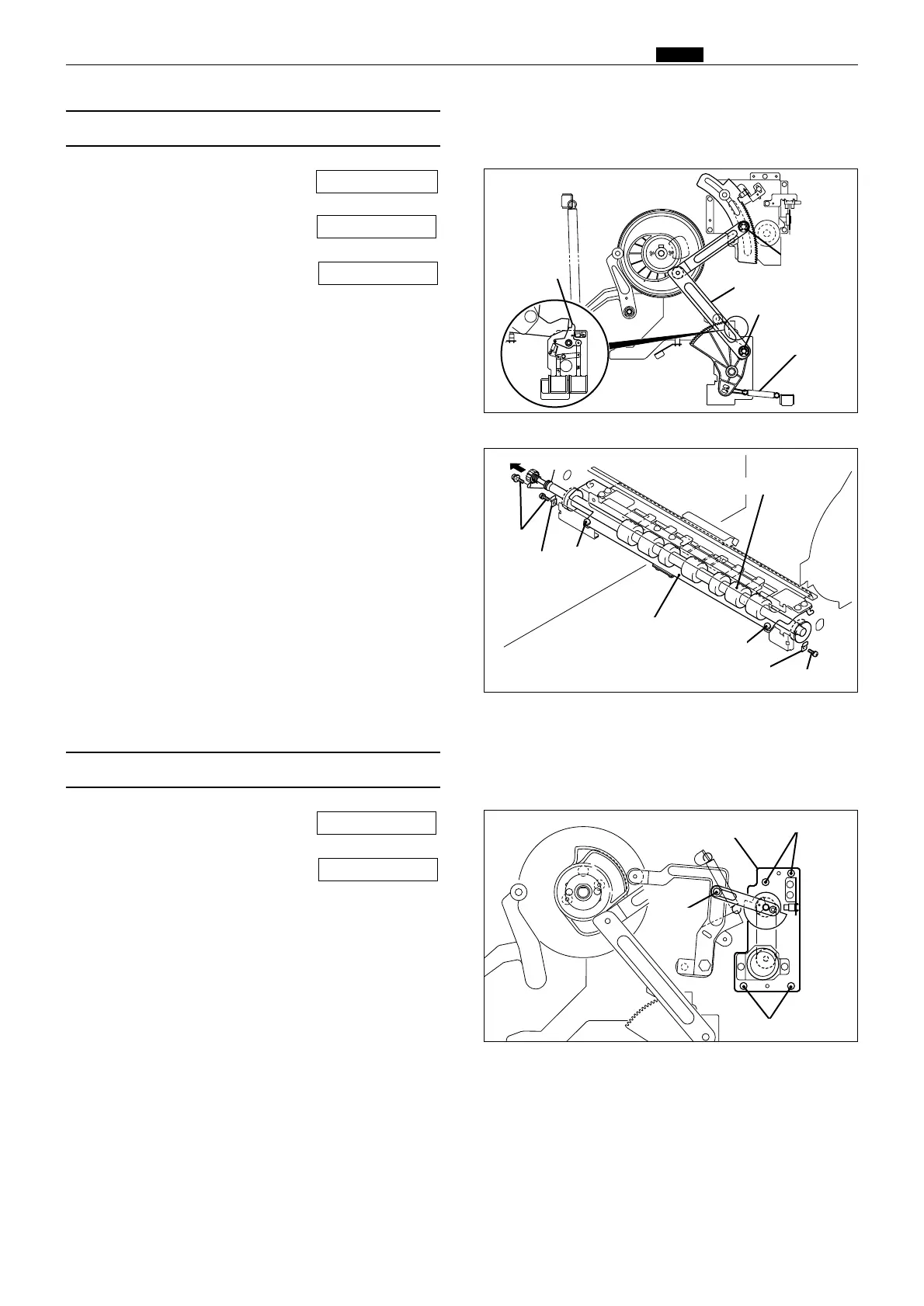

(8) Removal of Timing Roller
1) Remove the paper feed unit.
2) Remove the front cover.
3) Remove the drum unit.
4) Remove the sub-frame A.
5) Remove the spring.
6) Remove the 2 E-rings, and remove the links.
7) Remove the stopper of the cancel lever.
\See page 132
\See page 108
\See page 129
Screw
Screw
1) Remove the front cover.
2) Remove the drum unit.
3) Remove the rear cover.
4) Remove the 5 screws indicated, then remove the
long paper unit..
\See page 110
\See page 108
(9) Removal of Long Paper Unit(LPU)
440151
Screws
Long paper unit
Screws
8) Remove the 3 screws shown. Remove the
bearing stops and the spring.
9) Remove the 2 screws shown. Lifting the guide A
unit, and remove the timing roller from the rear
(opposite side from the operation panel).
Stopper
Timing roller
Screw
Links
E-ring
E-ring
Spring
Screws
Guide A unit
Screw
Spring
Bearing stop
Bearing stop
