Duplo DUPRINTER DP-430 - Removal of Outer Frame (Left) Assy

142
m Drum Section
chap.3
Do not forget to adjust the rail
space after the rail is installed.

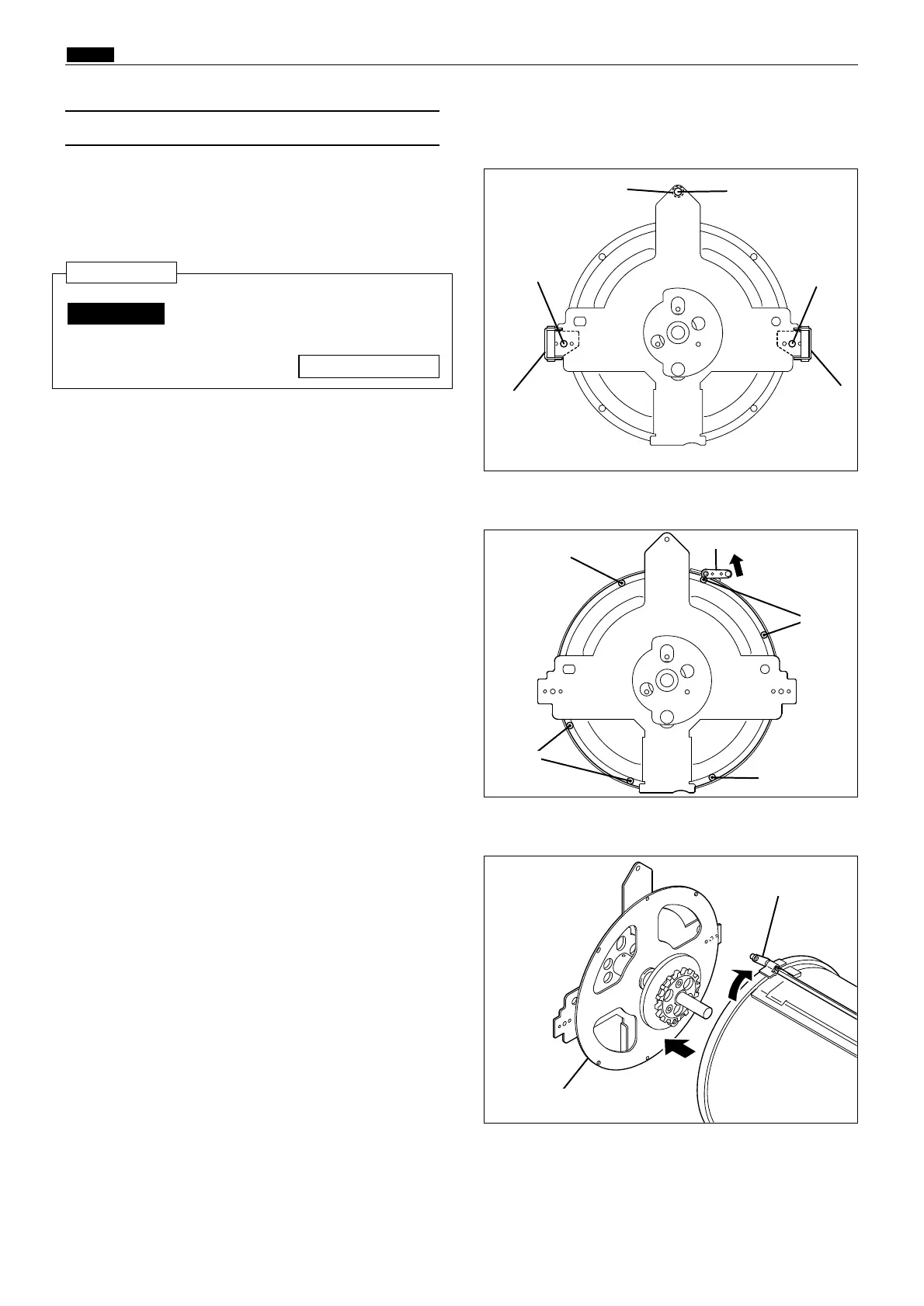

(5) Removal of Outer Frame (Left) Assy
1) Remove the dram.
2) Remove the screw on the rail to take out the rail.
3) Remove the screw on the stay to remove the stay.
4) Remove 6 screws.
5) Pull out the outer frame (left) assy with the
master clump open.
Reinstallation
\See page 172
IMPORTANT :
Rail left
Master clump lever
Outer frame shaft assy
Stay
Rail right
Screw
Screws
440087
440088
440089
Screw
Screw
Screw
Screw
Screws
Master clump lever
