Duplo DUPRINTER DP-430 User Manual

100
m Drum Section
chap.2
Description
The ink control section in the drum is supplied with ink in the ink pack by driving the ink motor.
Operation
The piston performs suction and release operation by moving up and down.
When the piston moves up, it draws ink from the
ink pack into the pump.
When the piston moves down, the pump releases
ink.

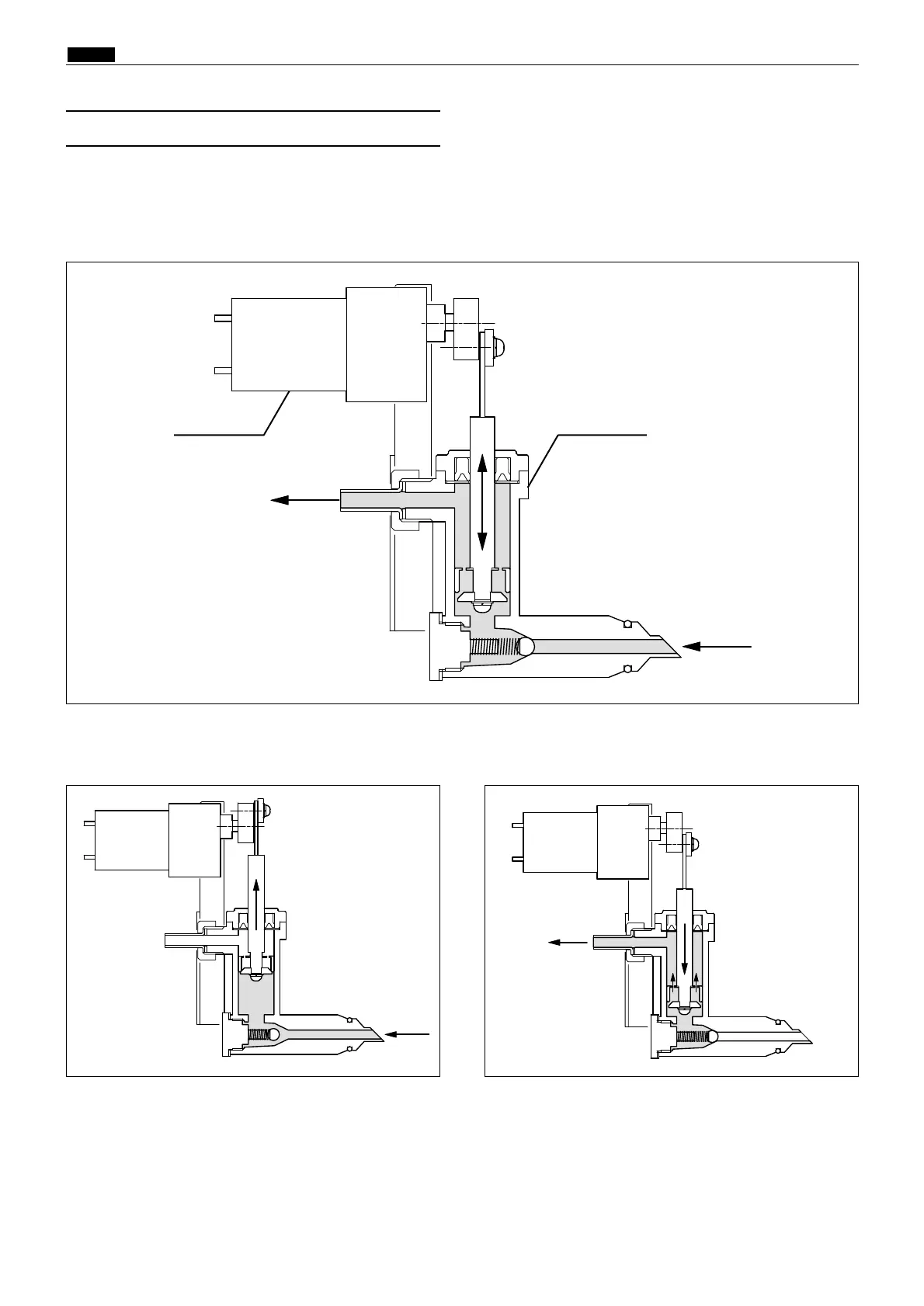

Mechanical Structure
(3) Ink Pump
440333
440334 440335
Ink motor Ink pump
