Duplo DUPRINTER DP-430 User Manual

88

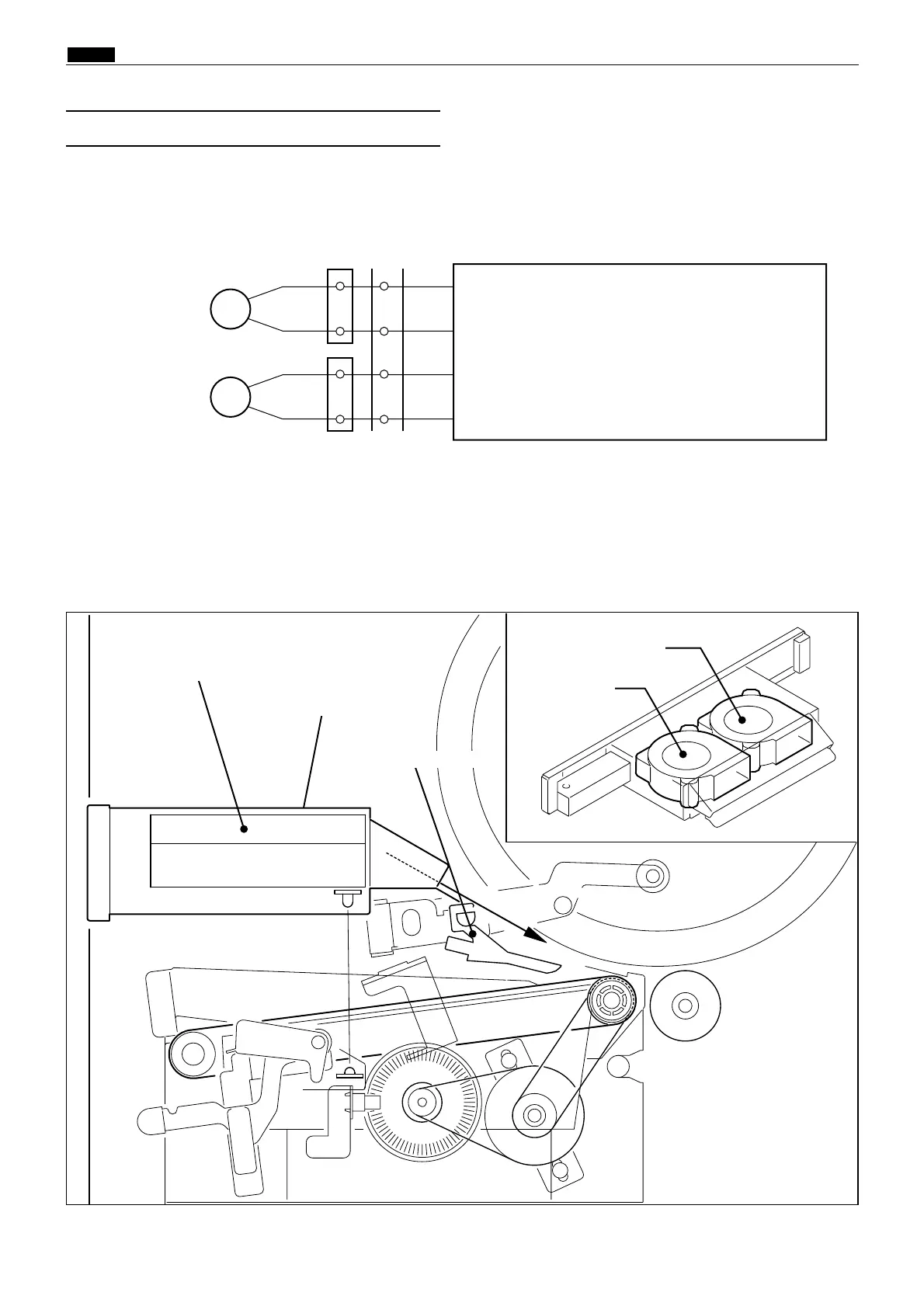

n Paper Ejection Section
chap.2
-3
-4
Top brow fan 2
Red
Black
1
2
CN10-1
-2
Top brow fan 1
Red
Black
1
2
22
23
20
21
Drive PCB unit
F
F
Operation
During printing, the fan blows a constant stream of air at the paper stripper finger, from the rear. This assists
paper stripping and also presses the paper against the ejection belt, which stabilizes ejection.
Top blow fan
Paper stripper finger
Circuit
(2) Top Blow Fan
440W26e
440328
Top blow fan unit
Top blow fan 2
Top blow fan 1
