174
, Electrical system
chap.4
3. Adjusting the Lateral R / E on the Reading
Side Adjustment procedure

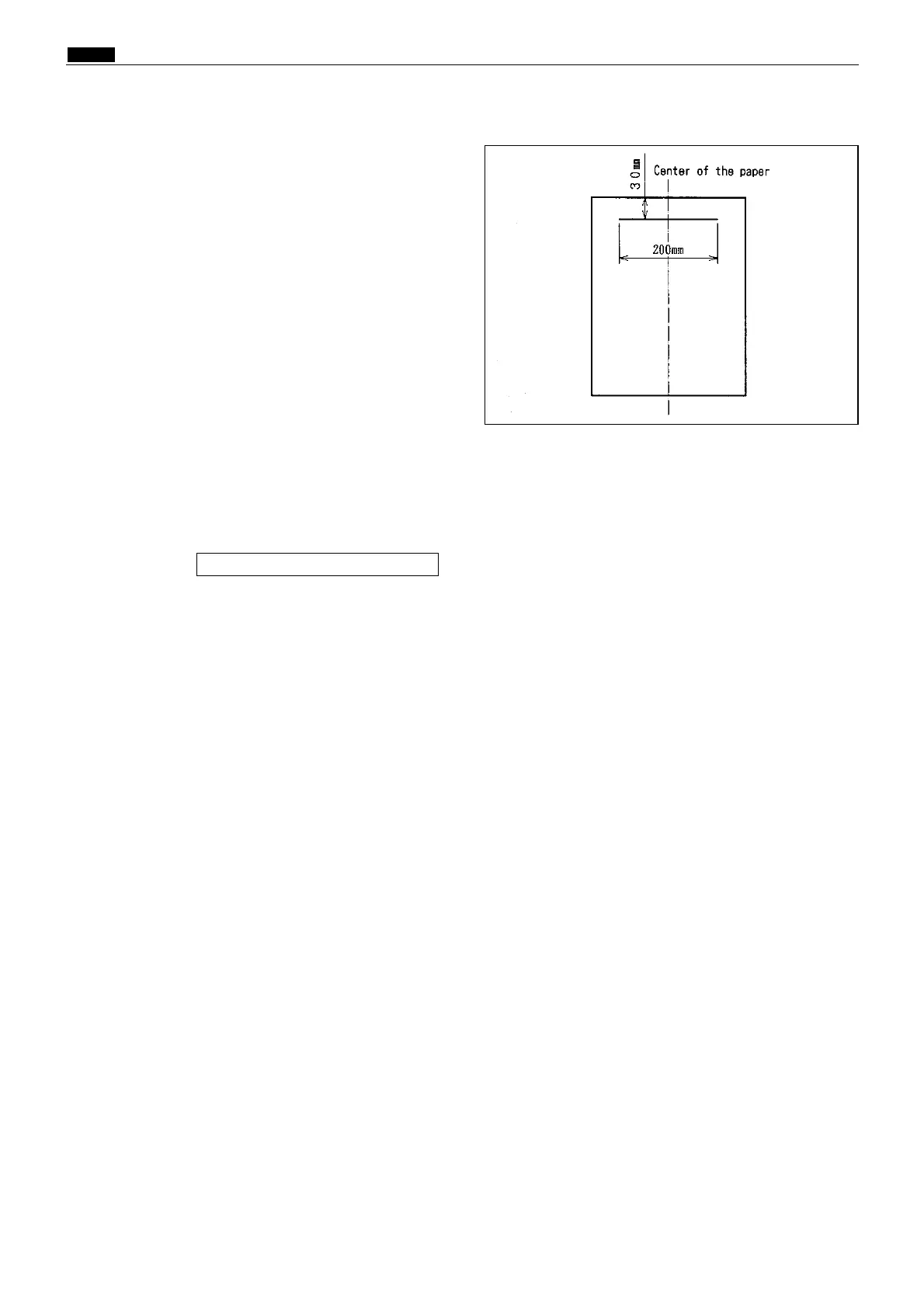

1) Prepare a basic document as shown in the figure.
Draw a 200mm-line(pel path direction) at the
position 30mm from the top end of the paper*.
*DP-440/430 : A3 paper
*DP-340/330 : B4 paper
2) Place the basic document on the document table
to perform platemaking and printing.
Standard values:
¡Compare the size of A section of the printed
image with that of the basic document. Check
that the difference of the size is ±2.0mm.
If the clearance is not the standard value:
1) If not, adjust with the H-49.
HELP mode H-49 \ see p.269
A=
