168
n Paper Ejection Section
chap.4
Screws
If the clearance is not the standard value:
Loosen the 2 screws indicated and use the
stopper to adjust the clearance to the
standard value. Then retighten the screws.
After adjustment:
¡After adjustment, press the JOG switch (DRUM
ROTATION switch) to return the drum to its
home position.
IMPORTANT :
(2)

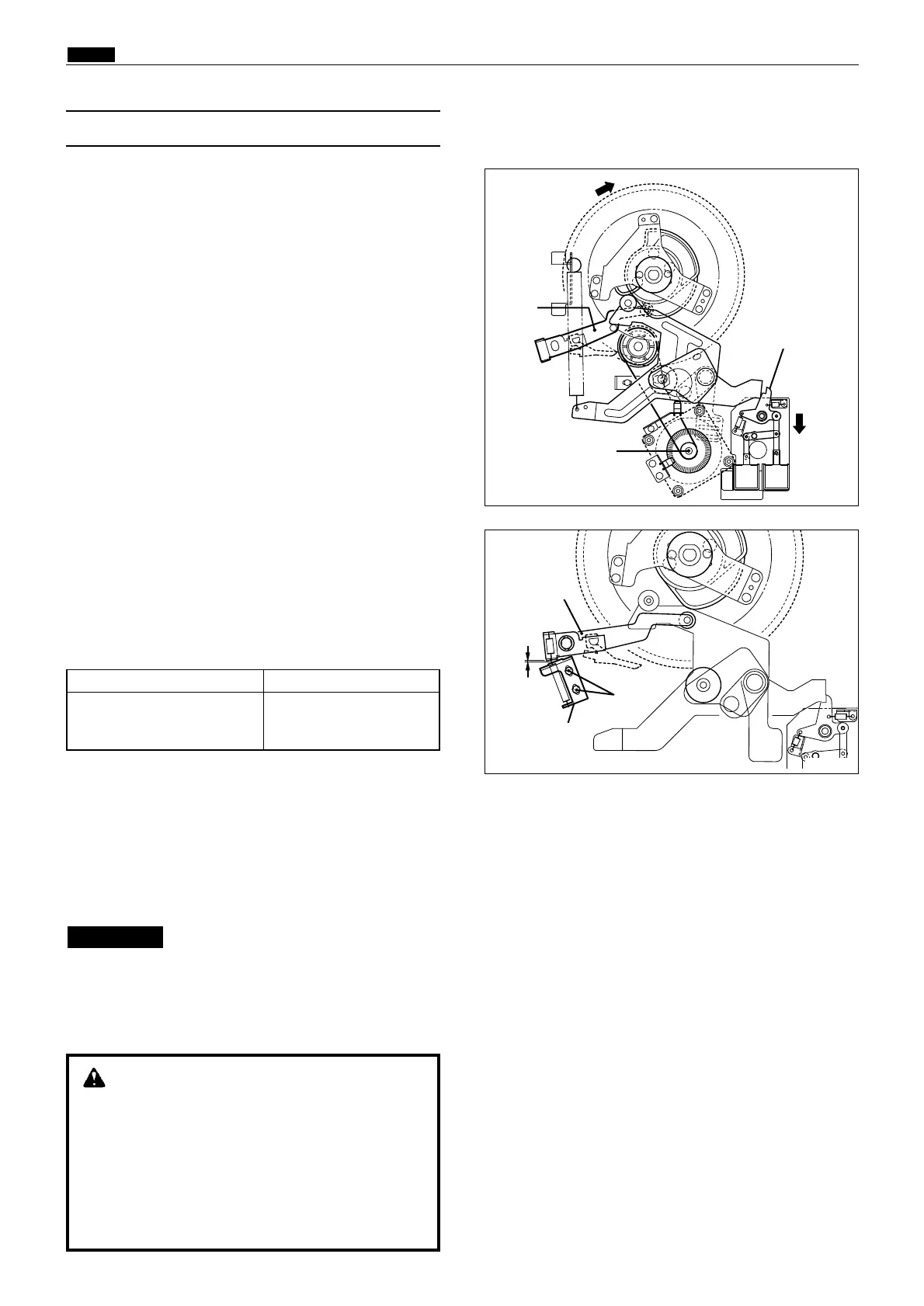

Adjusting the Paper Stripper Finger Return Stopper
Adjustment procedure
1) Turn the main motor shaft by hand, and stop the
press roller at the ON position.
Standard valueItem
Clearance between lever and
paper stripper finger return
stopper
about 1mm
WARNING
¡
Do not touch the drum or rolls when operat-
ing
the JOG switch.
¡Do not put your hands or fingers inside the
machine during operation. They could be
caught up or crushed in the machinery,
resulting in injury.
440137
Standard value
¡Check that the clearance between the lever and
the paper stripper finger return stopper conforms
to the value shown below.
Lever
about
1mm
Paper stripper
finger return
stopper
Cancel lever
Lever
Main motor shaft
440134
To Next Page
