63
c Paper Feed Section
chap.2
Timing roller
Paper feed segment
Timing segment
Pinion gear
Paper feed roller

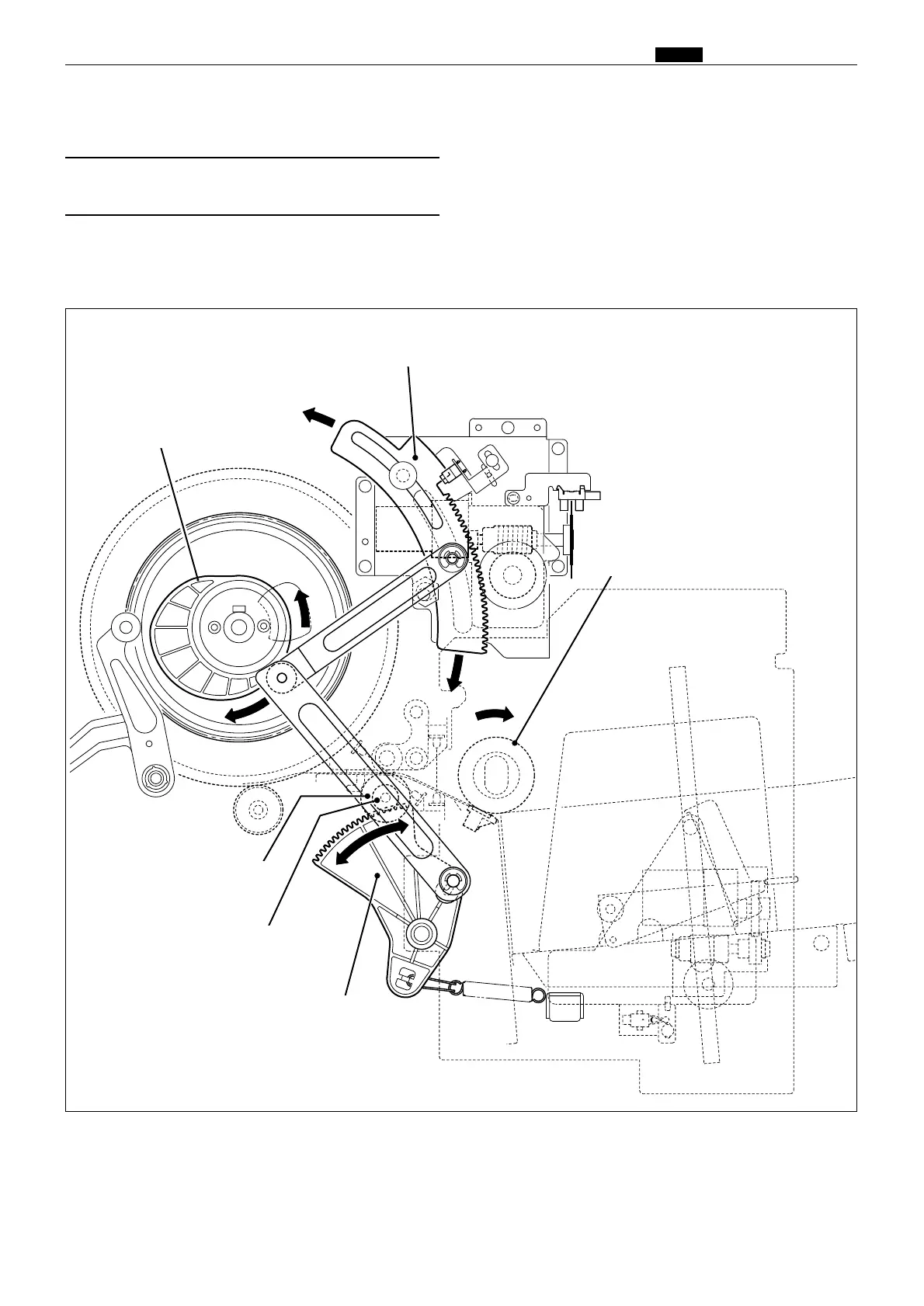

When the main motor turns, the paper feed cam rotates, causing the paper feed segment and timing segment
to execute the reciprocating motion shown below, which turns the pinion gear.
2. Operation
(1) Rotation of the Paper Feed Roller and
Timing Roller
440302
Paper feed cam
