m Drum Section
chap.3
(4)

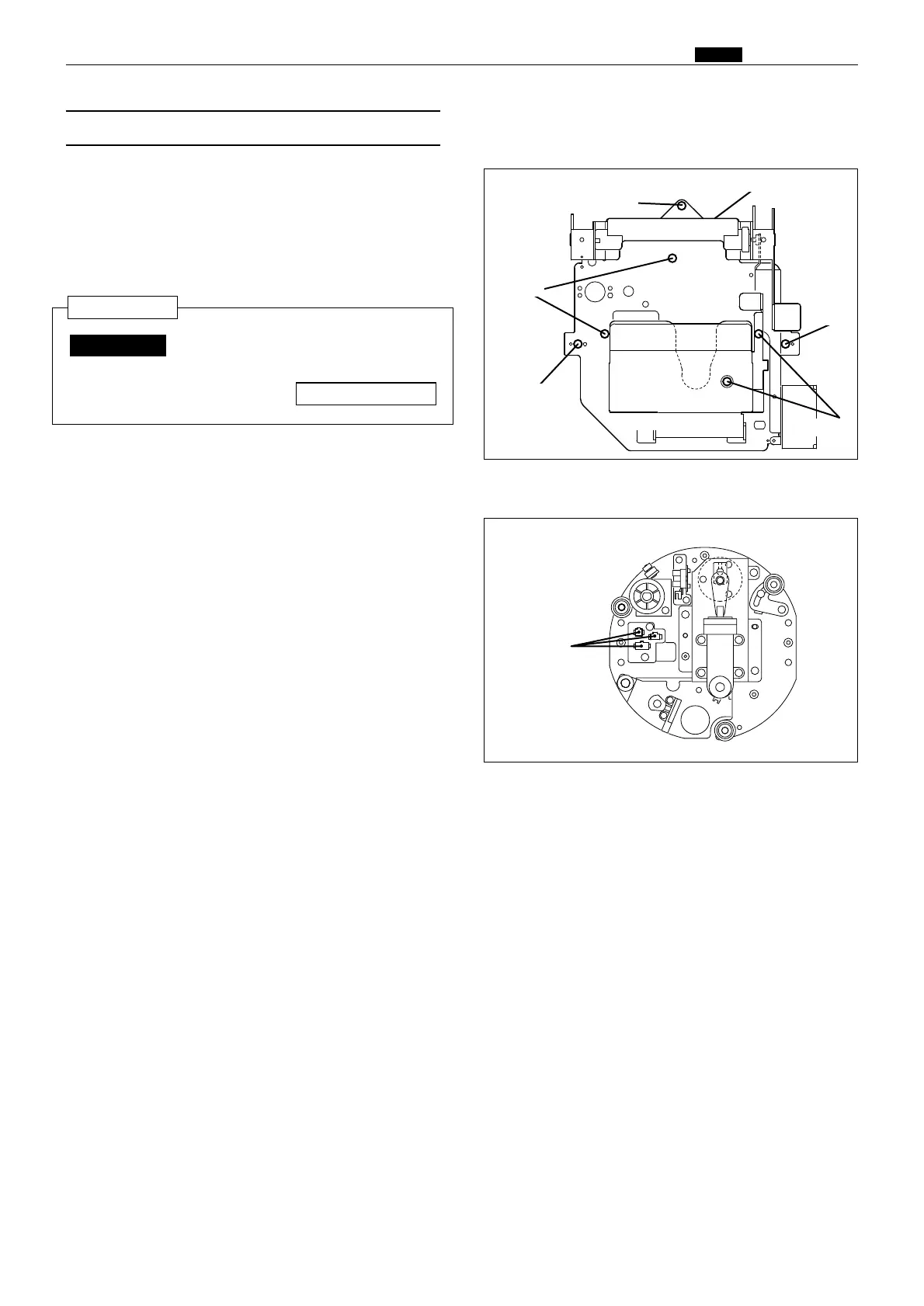

Removal of Outer Frame (Right) Unit
1) Remove the drum.
2) Remove 2 screws on the rail and 1 screw on the
stay.
3) Remove 4 screws on the outer frame (right) unit
and knob screw.
4) Part the outer frame (right) unit a little and
remove 3 connectors.
5) Remove the outer frame (right) unit.
Reinstallation
Do not forget to adjust the rail
space after the rail is installed.
\See page 172
IMPORTANT :
Screws
Screw
Screws
Connectors
Screw
(stay)
Outer frame (right) unit
Screw
(rail)
Screw
(rail)
440085
440086
