132
b Drum Driving Section
chap.3
b Drum Driving Section

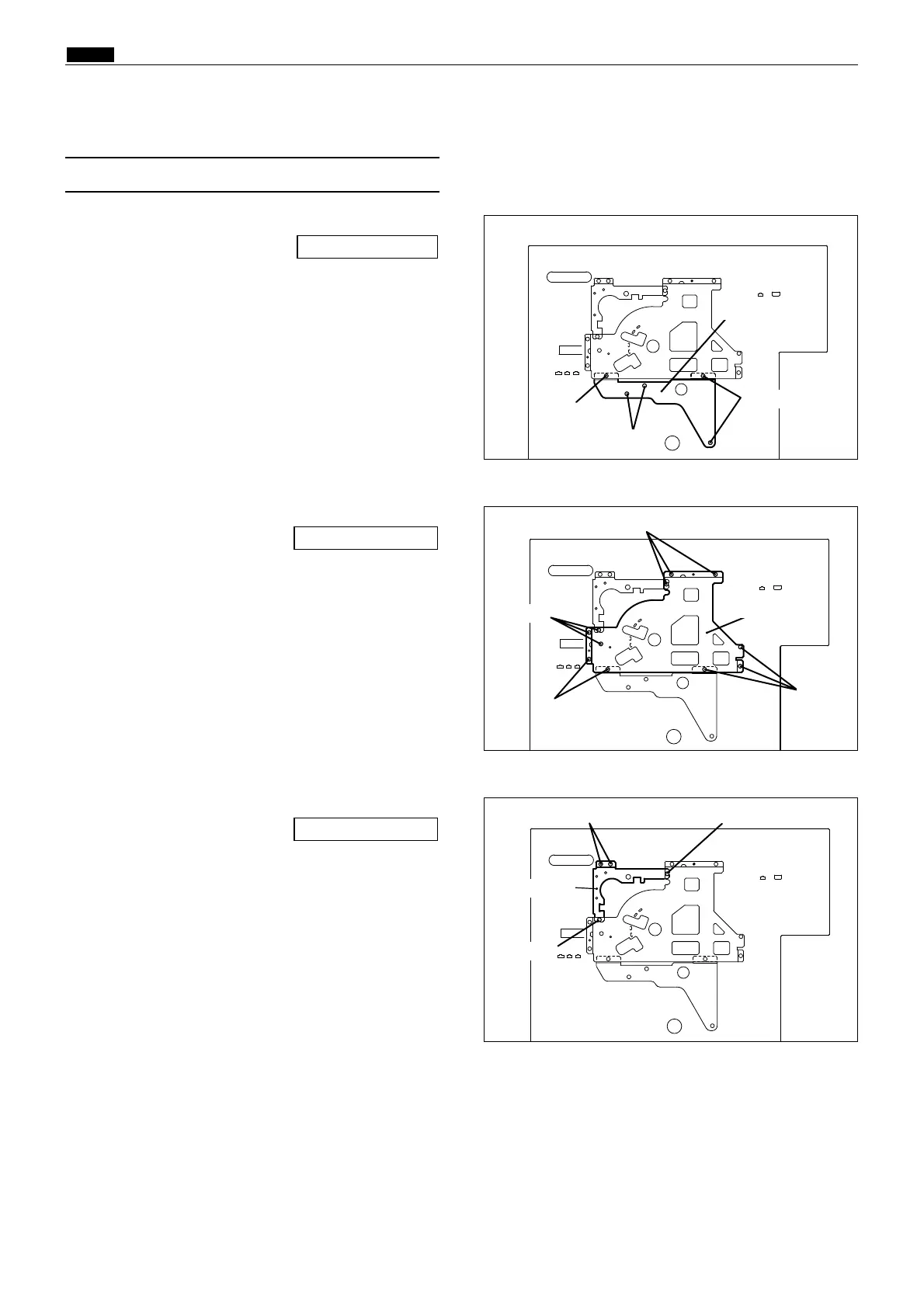

(1) Removal of Sub-Frame
440072
Sub-frame B
Screws
Screws
440071
Sub-frame A
Screw
Screws
Screws
440073
Sub-frame C
Screw
Screw
Screws
¡ Remove the sub-frame A
1) Remove the rear cover.
2) Remove the 5 screws indicated, and remove
the sub-frame A.
\See page 110
¡ Remove the sub-frame B
1) Remove the rear cover.
2) Disconnect the 2 connectors.
3) Remove the 9 screws indicated, and remove
the sub-frame B.
\See page 110
¡ Remove the sub-frame C
1) Remove the rear cover.
2) Disconnect the 3 connectors.
3) Remove the 2 screws indicated, and remove
the sub-frame C.
\See page 110
Screws
Screws
