128
v Paper Feed Section
chap.3
440070
440069
440068

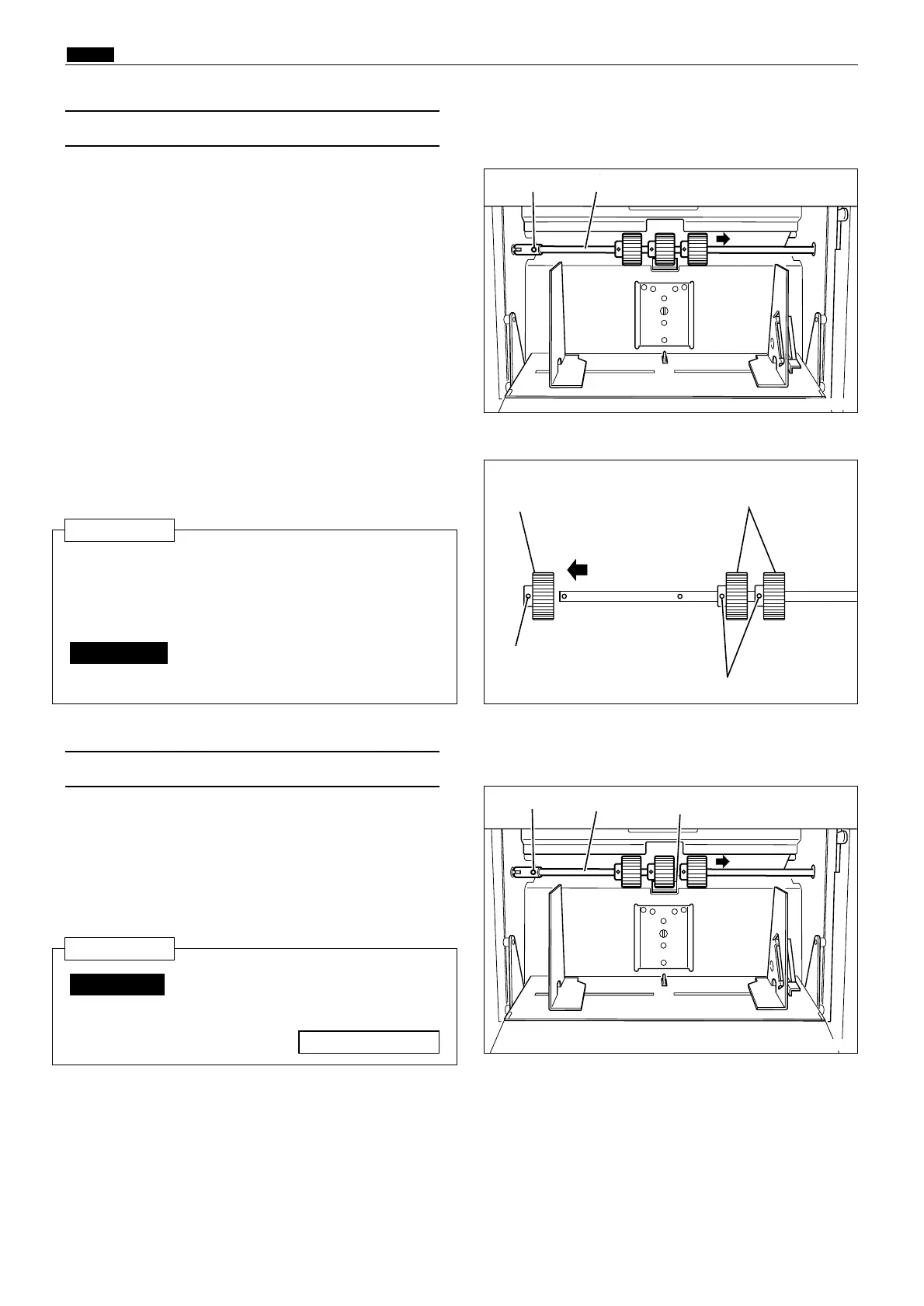

(3) Removal of Paper Feed Roller
1) Remove the screw indicated, and slide the paper
feed shaft in the direction of the arrow.
(4) Removal of Paper Separator Unit
1) Remove the paper feed shaft.
2) Remove the paper separator unit.
After reinstalling the paper separa-
tor unit, carry out adjustment of its
position.
IMPORTANT :
Reinstallation
Set screw Paper feed shaft
Paper feed rollers
Set screw
Paper separator unit
\See page 158
2) Loosen the set screw indicated, and remove the
paper feed roller.
¡ Reinstall the paper feed roller so that the set
screw is positioned at the paper feed roller
shaft's counter bore.
Do not use an old paper feed roller
together with a new one.
IMPORTANT :
Reinstallation
Set screws
Paper feed roller
Set screw
Paper feed shaft
To Next Page
