149
z Scanner Section
chap.4

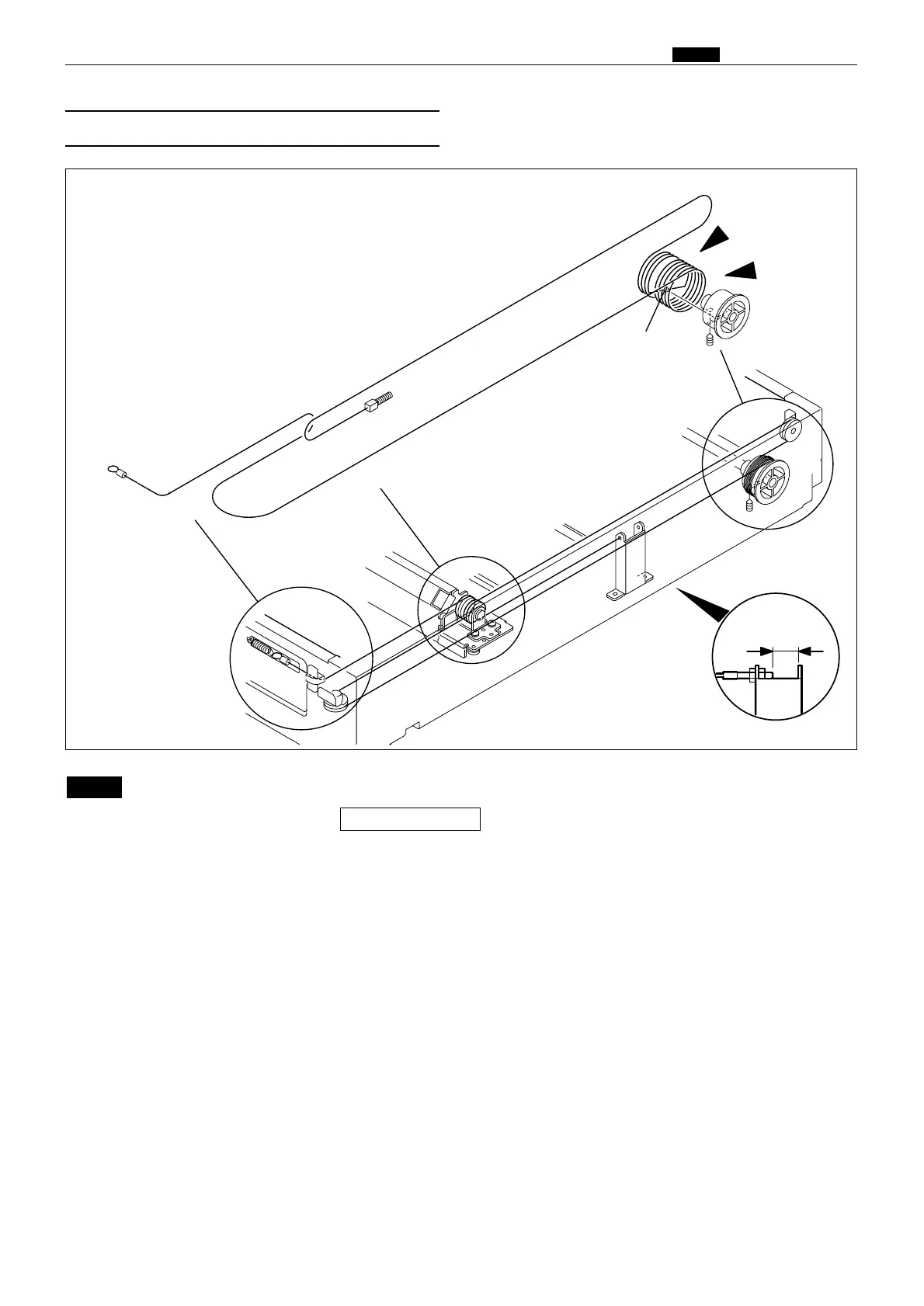

(2) Attaching the Front Wire
24S041
q
w
y
r
e
u
i
t
Ball end
Place on pulley
Wrap 4 times
Place on pulley
Wrap 6 times
Fix with nut
Place on corner
guide
Place on pulley
Place on spring
Adjustment procedure
1) Insert the ball end of the wire into the groove opening
on the pulley. Wrap the wire 4 times in the rear, and 6
times on the operation side.
2) Place the wire on the screw side onto the pulley.
3) Place the wire on the front pulley of Slider B.
4) Pass the screw through the bracket opening, and fix it
in place with 2 nuts. (There should be a 13mm gap
between the screw tip and the bracket.)
5) Place the wire on the hook side on the pulley.
6) Place the wire on the pulley in rear of Slider B.
7) Place the wire on the corner guide.
8) Place the spring on the hook.
¡For removal of the front wire
\See page 118
NOTE :
Fix at 13mm
Place on pulley
To Next Page
