117
x Scanner Section
chap.3

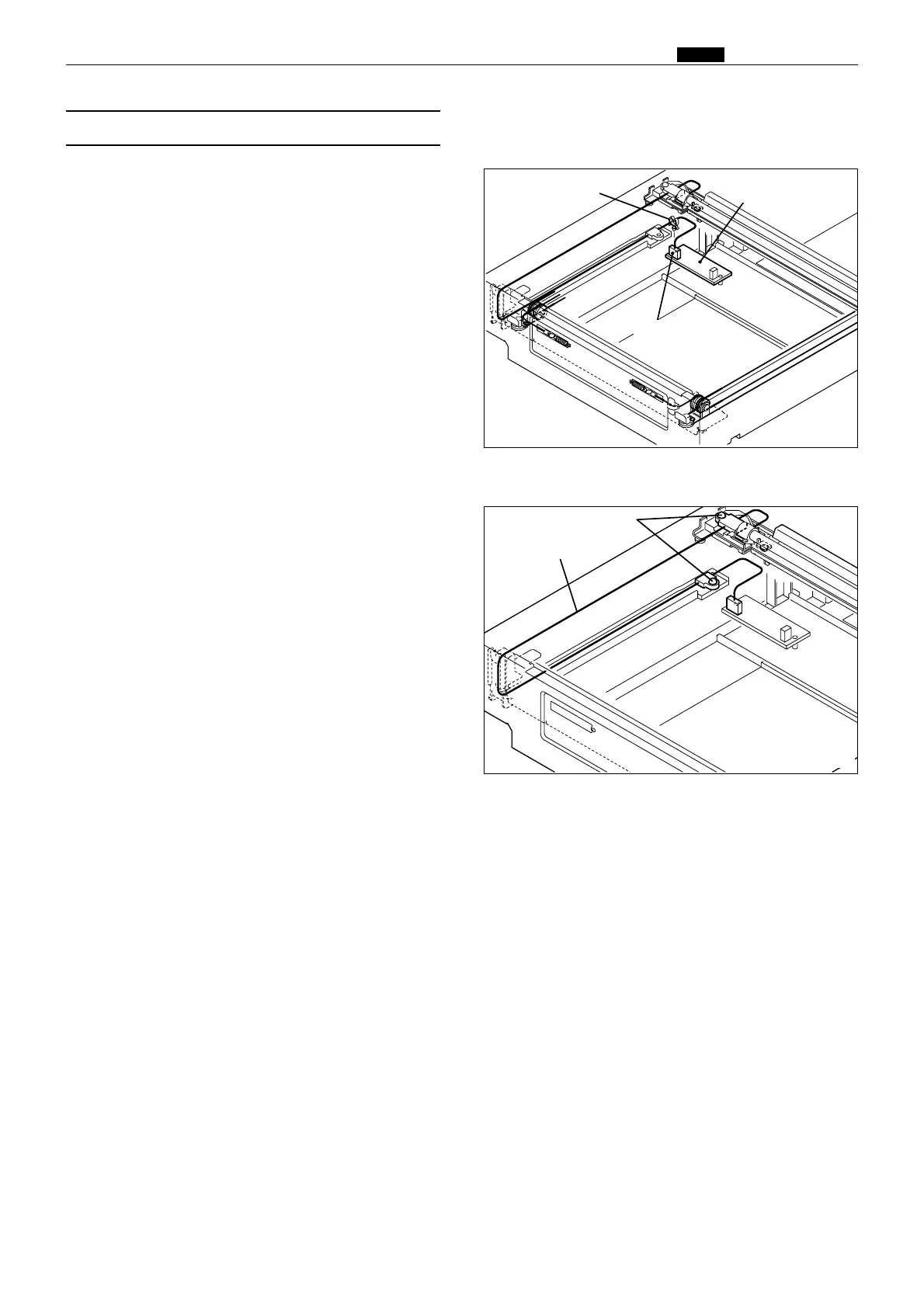

24S025
(6) Removal of Lamp Cord
4) Remove the 4 screws indicated, and remove the
lamp cord.
Connector
Screws
24S026
Lamp cord
1) Carry out (5) 1 through 4 above.
2) Remove the cord clamp.
3) Disconnect the inverter PCB unit CN2 connector.
Cord clamp
Inverter PCB unit
