Duplo DUPRINTER DP-430 - Adjusting and Replacing the Upper; Lower Blade for the TAPE CLUSTER

. Option
chap.4
182
Adjustment procedure
1) When the solenoid is pulled manually, adjust the
solenoid position up and down so that the upper
blade edge is positioned 1.5 - 2.0 mm lower than
the lower blade.
2) At the same time, adjust the space with the
adjusting washer so that the space of the blades
is about 0.5 mm when seen from the top.
.Option

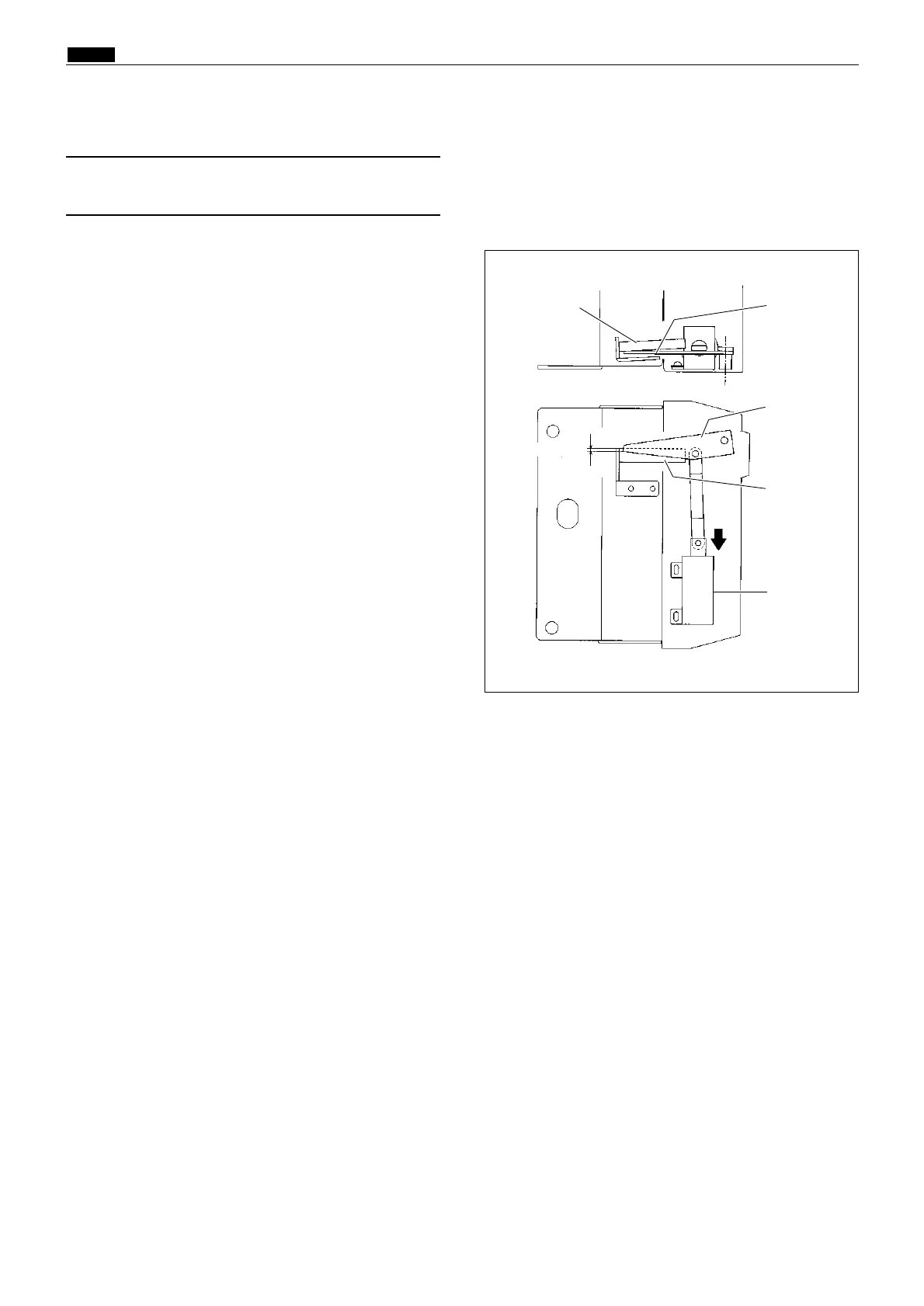

(1) Adjusting and Replacing the Upper /
Lower Blade for the TAPE CLUSTER
43SH0414
Lower blade
Lower blade
Solenoid
Upper blade
Upper blade
1.5-2mm
