127
v Paper Feed Section
chap.3

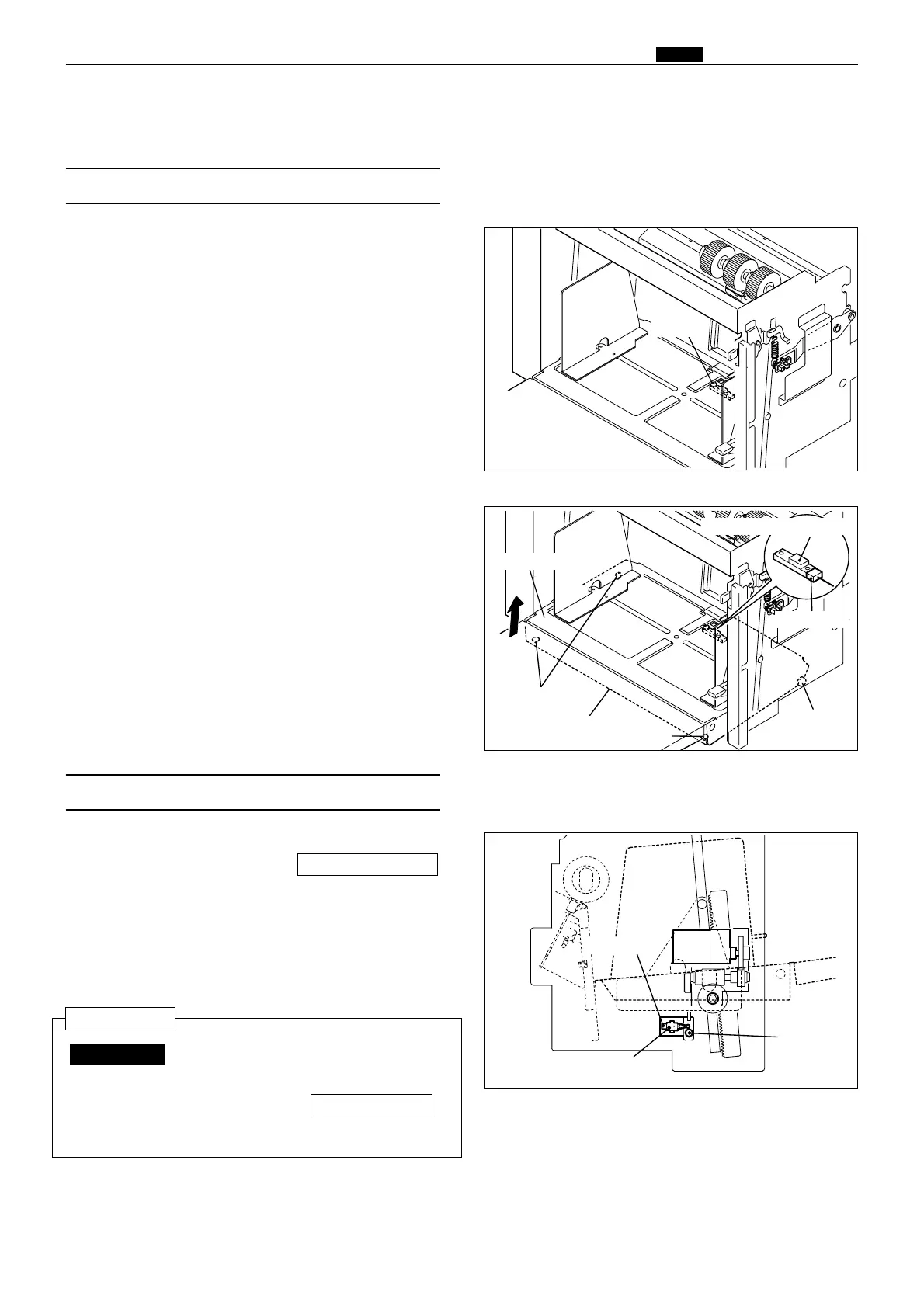

1) Remove the front cover.
2) Remove the 1 screw indicated, then remove the
bracket.
3) Disconnect the connector, and remove the eleva-
tor bottom limit switch.
\See page 110
(2)
Removal of Elevator Bottom Limit Switch
After reinstalling the elevator lower
limit switch, carry out adjustment
of its clearance.
\See page 160
IMPORTANT :
Reinstallation
(1) Removal of Paper Detection Sensor
v Paper Feed Section
440109
440110
440067
Paper detection sensor
Connector
Screws
Elevator bottom limit switch
Connector
1) Remove the screw.
2) Lift the floor of the feed tray, approximately
10cm.
3) Remove the 4 screws indicated, then remove the
cover.
4) Disconnect the connector, and remove the paper
detection sensor.
Screw
Screw
Screws
Screw
Cover
Feed tray
To Next Page
