Duplo DUPRINTER DP-430 - Sequence of Operation; Operation When the Master Set

43
x Platemaking / Master Feed / Ejection Section
chap.2

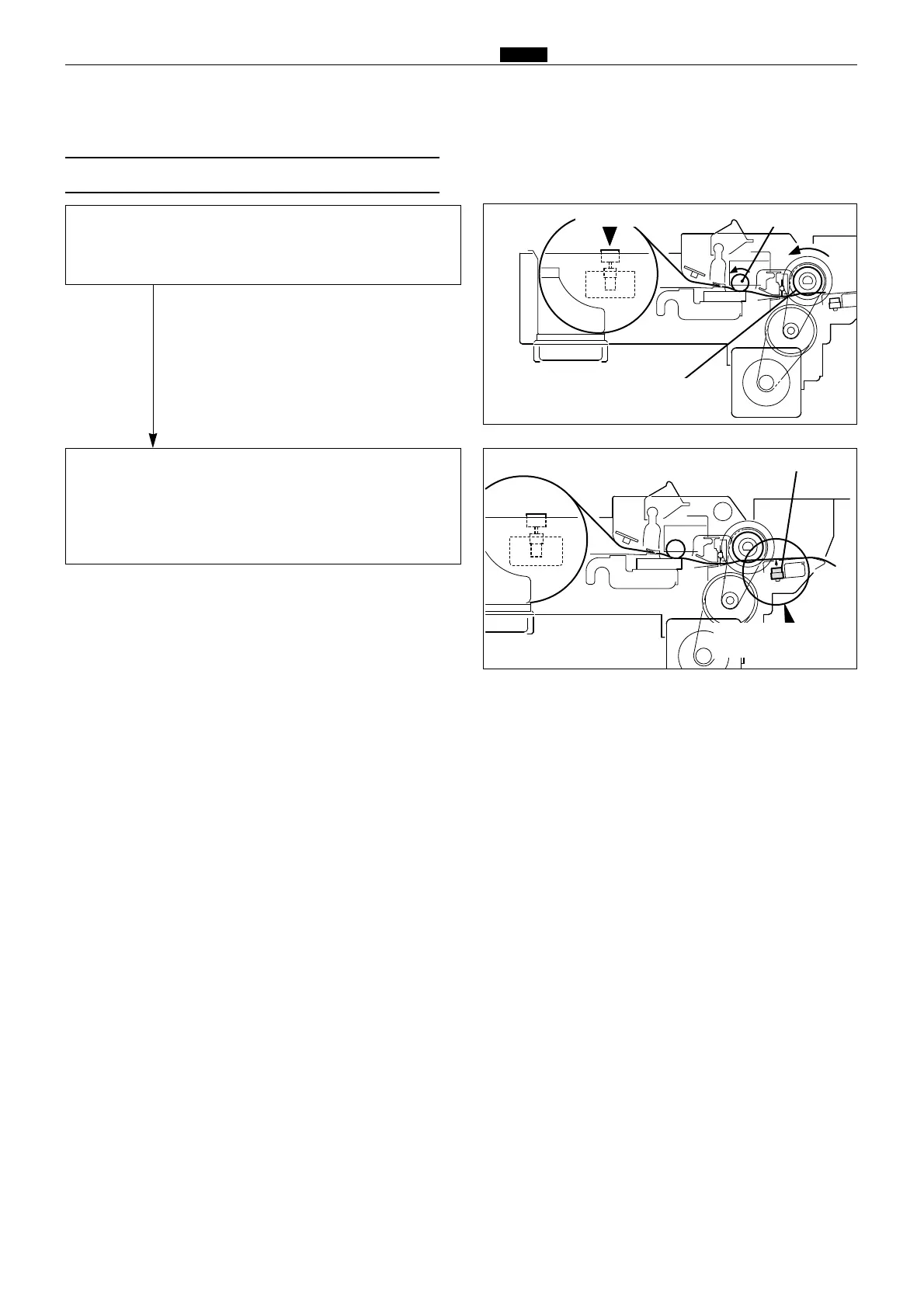

2. Sequence of Operation
(1) Operation when the master set
Platen roller
Master lead edge sensor
Photo passing
//
Photo interrupting
Sponge roller 1Switch ON
440346
440347
When the master cover is closed, the platen roller
and sponge roller1 rotate and feed out
the document for 10 seconds.
When the master lead edge sensor is interrupted,
the master is fed a few steps and stopped.
If the master lead edge does not reach the master
lead edge sensor, "MASTER SETTING ERROR" is
displayed.
