301

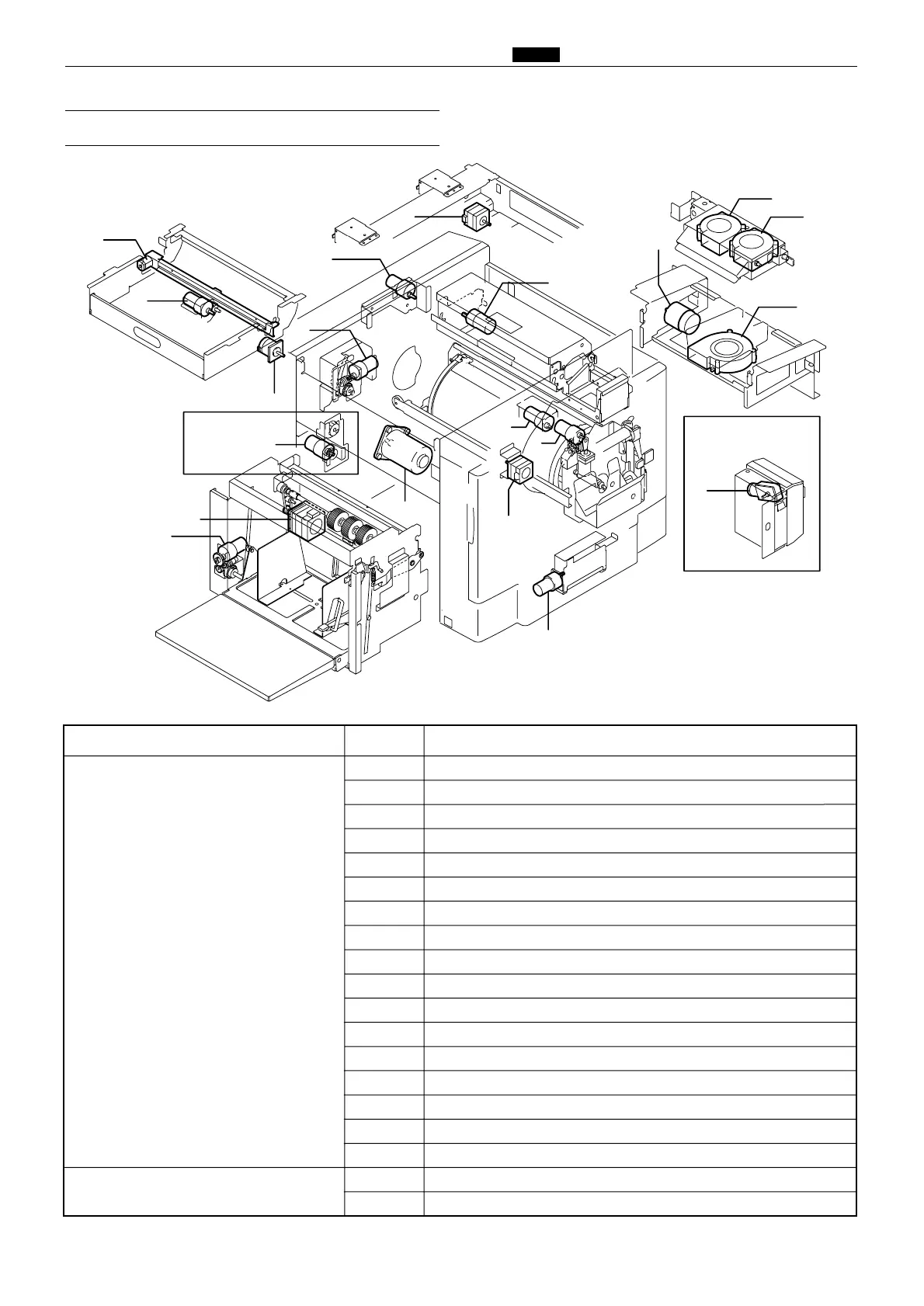

z Electrical Parts Layout and Their Functions
chap.8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
Paper feed tray elevator motor
Print position (top/bottom) adjusting motor
Cutter motor
Master clump opening/closing lever motor
Pressure motor
Ink roller up/doun motor
Thermal head up/doun motor
Plate making stepping motor
Ink pump motor
Drum shift stepping motor
Roll-up motor
Paper feed stepping motor
Guide roller drive motor
Tape cluster motor
Scanner stepping motor
Main motor
Paper eject fan motor
Top blow fan motor
Paper ejection fan motor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
FunctionsItem No.
Motor
Fan motor
(4) Motors/Fans
440914
Option
Option
