Duplo DUPRINTER DP-430 User Manual

126
c Platemaking/Master Feed and Ejection Section
chap.3
440065
440064
1) Remove the master clump opening / closing unit.
2) Loosen 2 screws to loosen the tension as shown
in the figure.
\See page 125
3) Remove the screw to remove the angle.
4) Remove the timing belt.
• Adjust tension by adjusting the master feed mas-
ter clump opening/closing lever and master ejec-
tion master clump opening/closing lever. Then fit
the timing belt on.
Adjust the A, B and C modes after
the master clump opening / closing
unit is attached to the printer main
body.
IMPORTANT :
Main frame R
Master ejection master
clump opening/closing lever
Position hole
Position hole
Master feed master clump
opening/closing lever
Master clump
opening/closing unit
Tension
Screws
Screw
Timing belt
Screw

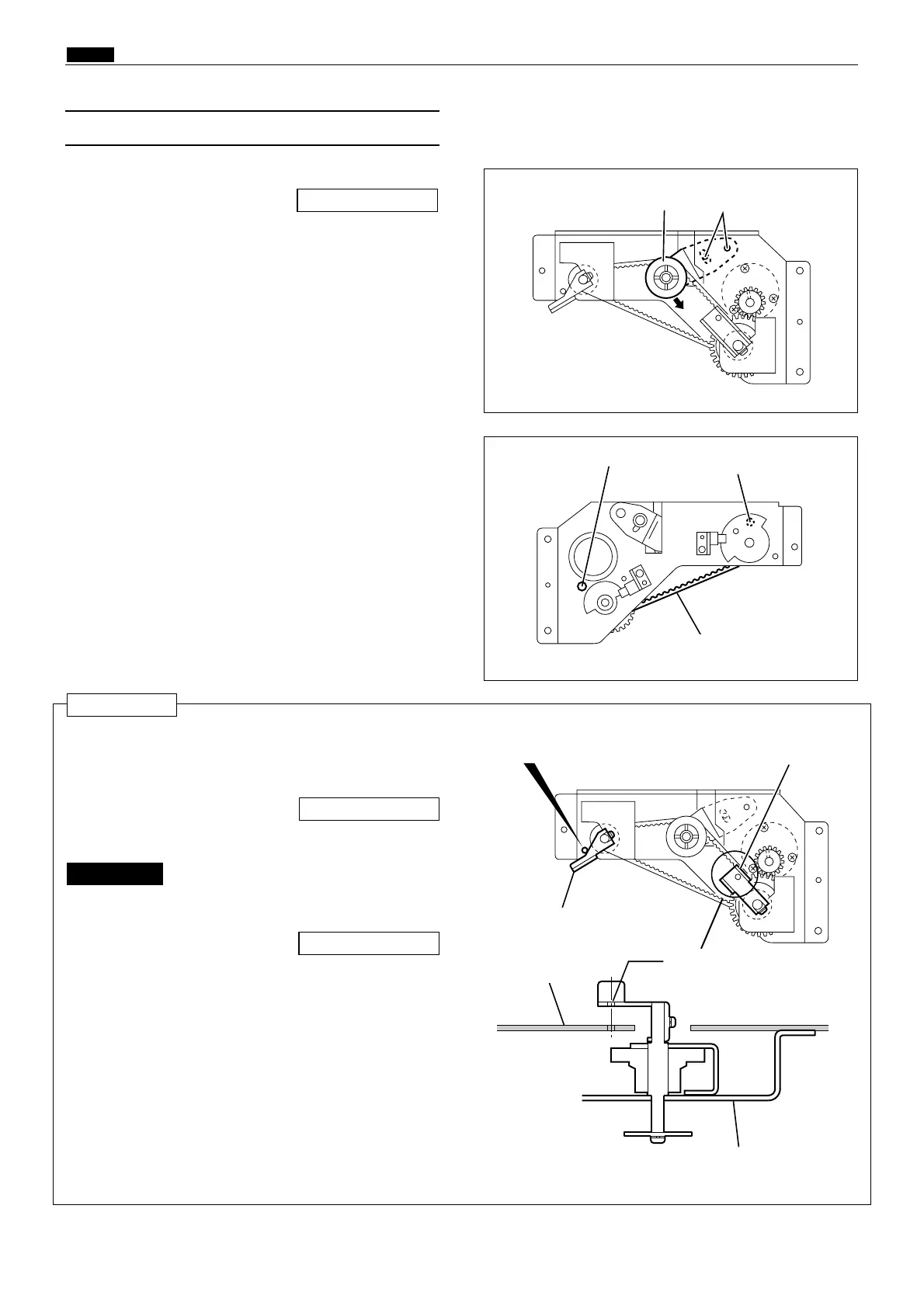

(3) Removal of Timing Belt
\See page 153
Reinstallation
23S0082
\See page 154
440066
