129
v Paper Feed Section
chap.3
Before power off, press the feed tray
descend switch until the paper feed
tray is at its lower most position.
IMPORTANT :
440144
440145

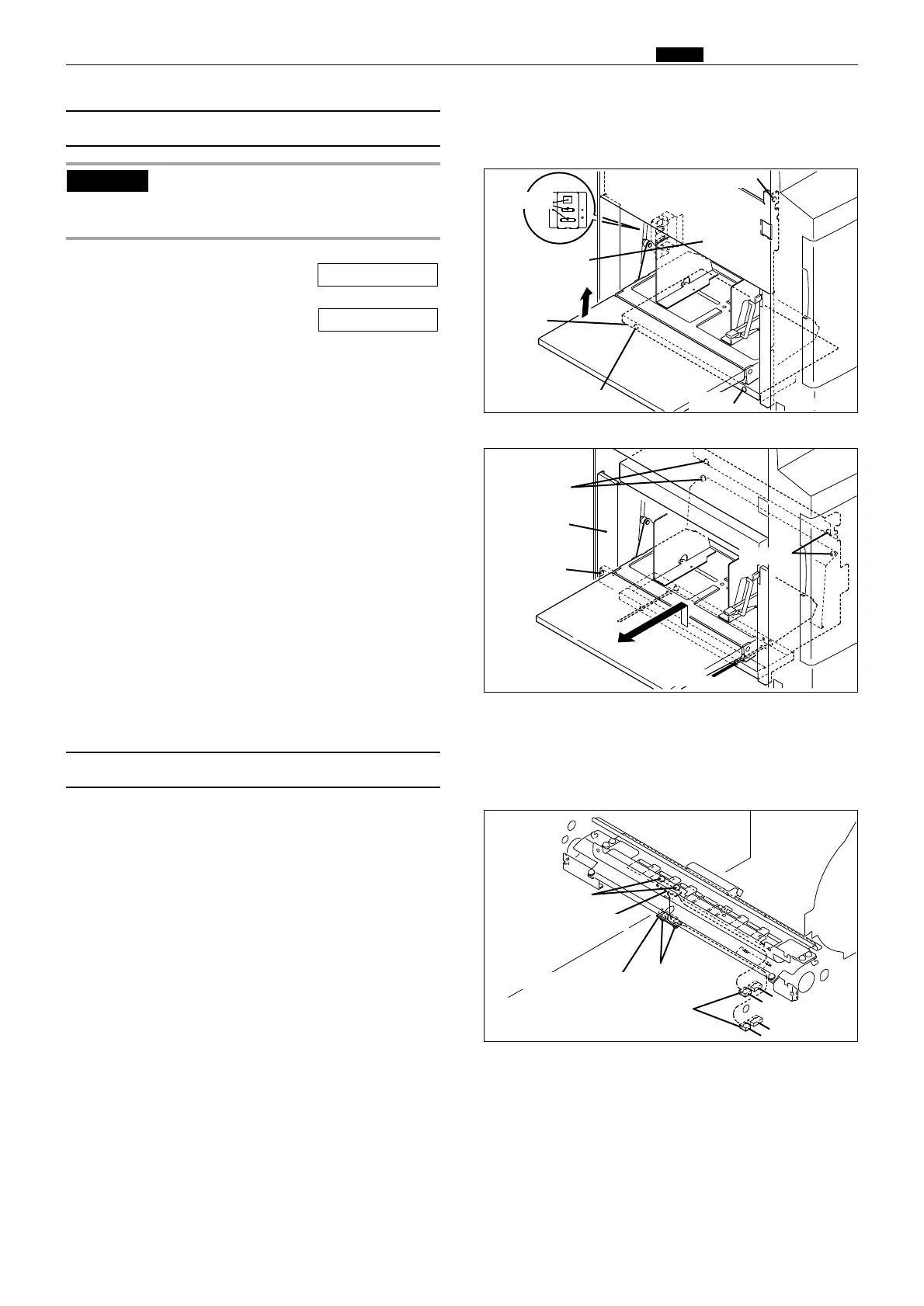

(5) Removal of Paper Feed Unit
Cover
Screws
Screw
5) Remove the 7 screws
1) Remove the rear cover.
2) Remove the 2 screws indicated, then remove the
side cover L.
3) Disconnect the 3 connectors.
4) Remove the 2 screws indicated, then remove the
cover.
\See page 111
\See page 110
Side cover L
Connectors
Screw
Screw
Paper
feed unit
Screw
Screws
Screw
Screw
1) Remove the paper feed unit.
2) Disconnect the 2 connectors.
3) Remove the 4 screws indicated, then remove the
paper lead edge sensors.
(6)
Removal of Paper Lead Edge Sensor
440148
Screws
Photo-receiving PCB
Connectors
Screws
Photo-emitting PCB
To Next Page
