85
b Press Section
chap.2

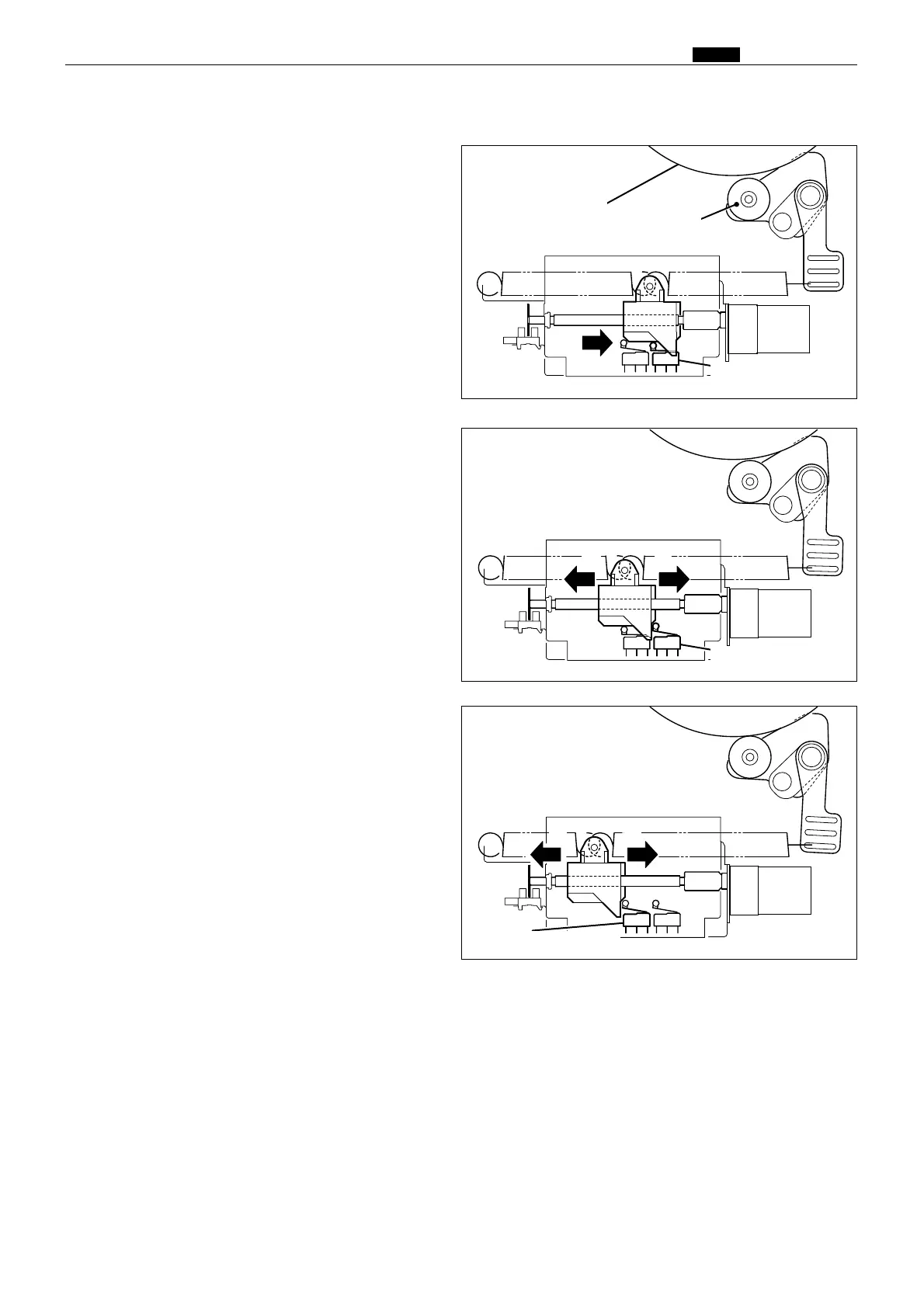

2Low contact pressure position:
Sensed by pressure center switch.
Switch turns from OFF to ON in response to
movement in the direction of the arrow.
2Standard contact pressure position:
Sensed by pressure center switch.
Switch turns from OFF to ON in response to
movement in the direction of arrow 1.
Switch turns from ON to OFF in response to
movement in the direction of arrow 2.
2Hi contact pressure position:
Sensed by pressure position switch.
Switch turns from ON to OFF in response to
movement in the direction of arrow
1
.
Switch turns from OFF to ON in response to
movement in the direction of arrow
2
.
1. Contact pressure position sensing
1 2
1
2
440362
440363
440364
Pressure position switch
Pressure center switch
Pressure center switch
Drum unit
Press roller
