155
x Platemaking / Master Feed / Ejection Section
chap.4
Standard value
Standard value

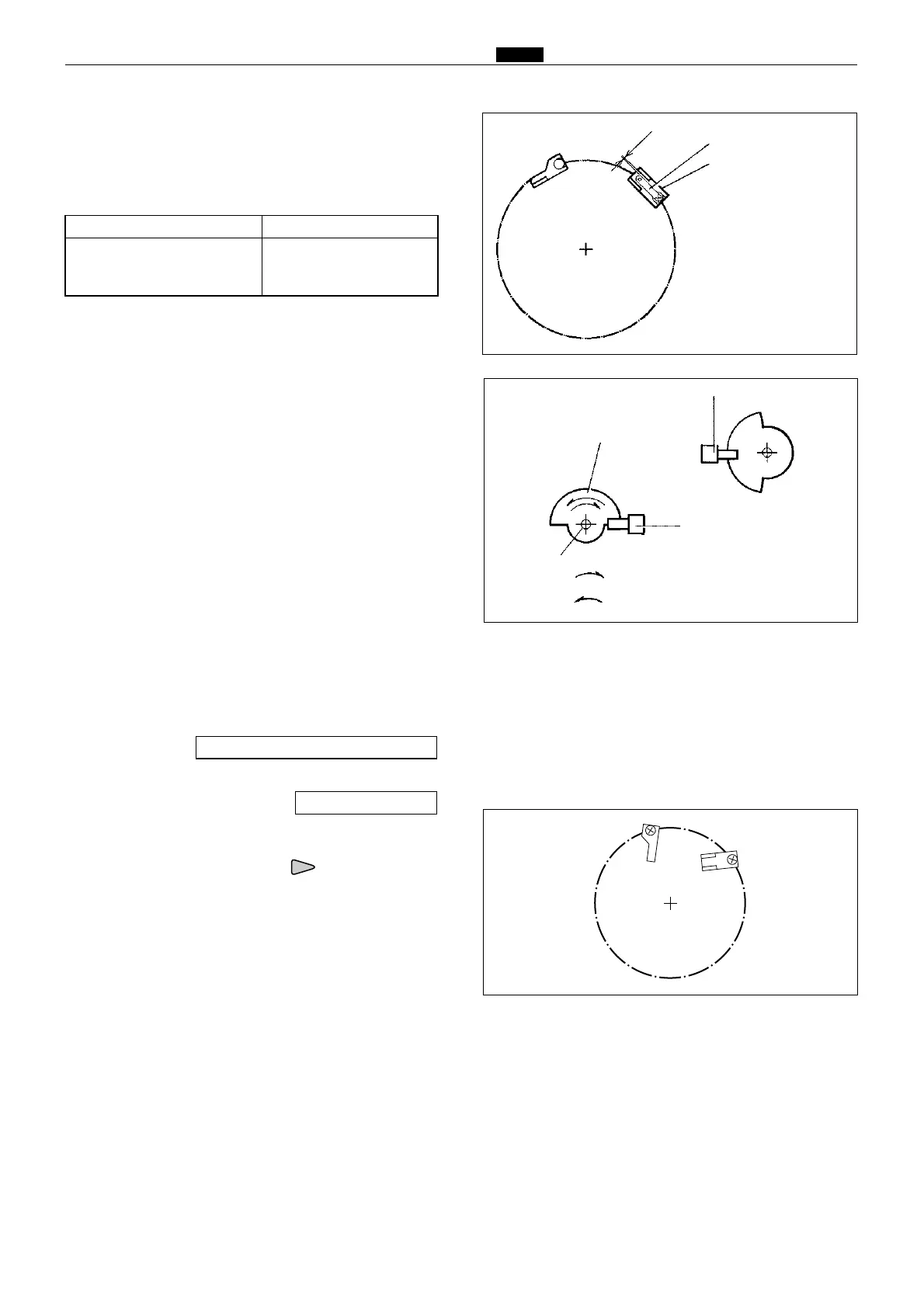

¡Check that the clearance between the master clump
lever and master clump open/close lever is within the
range given below.
If the clearance it outside the standard range:
1) Turn the fixing screw indicated to move the B
mode shade plate and thereby adjust the
clearance.
After adjustment
Follow the procedure below to return to the
previous state.
1) Remove the drum.
2) Access HELP mode H-02.
For basic HELP mode procedures.
3) Press and hold down the "up" PRINTING
SPEED ADJUSTMENT key, until the master
clump open/close lever moves into the A mode
position (see right).
4) Turn off the power, and install the drum to the
machine body.
\See page 213
HELP mode H-02 \ see p.221
Item
Clearance between master
clump lever and master clump
open/close lever
1.0 - 1.5mm
¡A mode
Close
Open
B mode sensor (PS4)
B mode shade plate
Fixing screw
A / C mode sensor (PS3)
Master clump
open/close lever
Master clump lever
1.0~1.5mm
To Next Page
