C
HAPTER
5
| Interface Configuration
Trunk Configuration
– 133 –
WEB INTERFACE
To show a list of port statistics:
1. Click Interface, Port, Cable Test.
2. Click Test for any port to start the cable test.

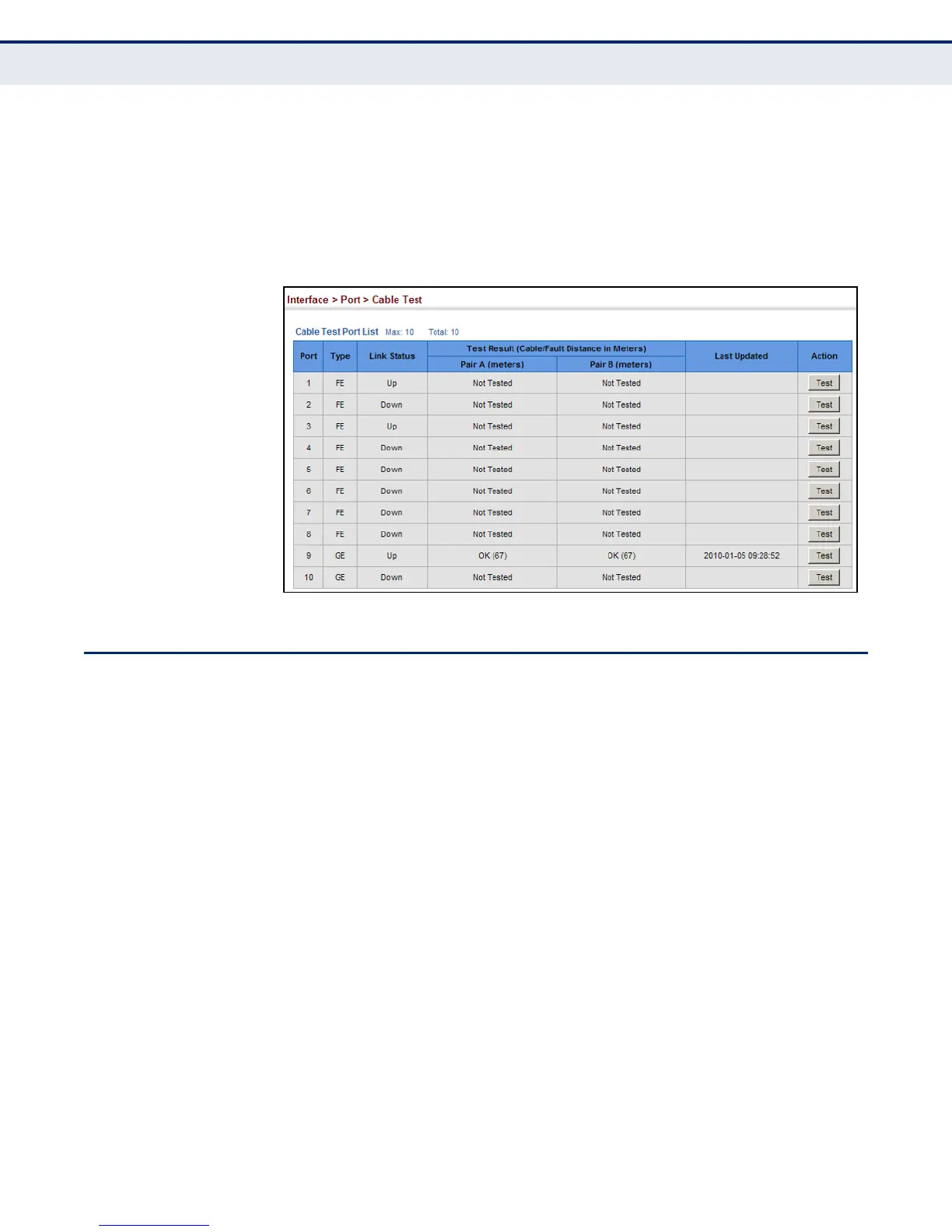

Figure 36: Performing Cable Tests
TRUNK CONFIGURATION
This section describes how to configure static and dynamic trunks.
You can create multiple links between devices that work as one virtual,
aggregate link. A port trunk offers a dramatic increase in bandwidth for
network segments where bottlenecks exist, as well as providing a fault-
tolerant link between two devices. You can create up to 5 trunks at a time
on the switch.
The switch supports both static trunking and dynamic Link Aggregation
Control Protocol (LACP). Static trunks have to be manually configured at
both ends of the link, and the switches must comply with the Cisco
EtherChannel standard. On the other hand, LACP configured ports can
automatically negotiate a trunked link with LACP-configured ports on
another device. You can configure any number of ports on the switch as
LACP, as long as they are not already configured as part of a static trunk. If
ports on another device are also configured as LACP, the switch and the
other device will negotiate a trunk link between them. If an LACP trunk
consists of more than eight ports, all other ports will be placed in standby
mode. Should one link in the trunk fail, one of the standby ports will
automatically be activated to replace it.
