WEB INTERFACE
To display LACP settings and status for the local side:
1. Click Interface, Trunk, Dynamic.
2. Select Configure Aggregation Port from the Step list.
3. Select Show Information from the Action list.
4. Click Internal.
5. Select a group member from the Port list.

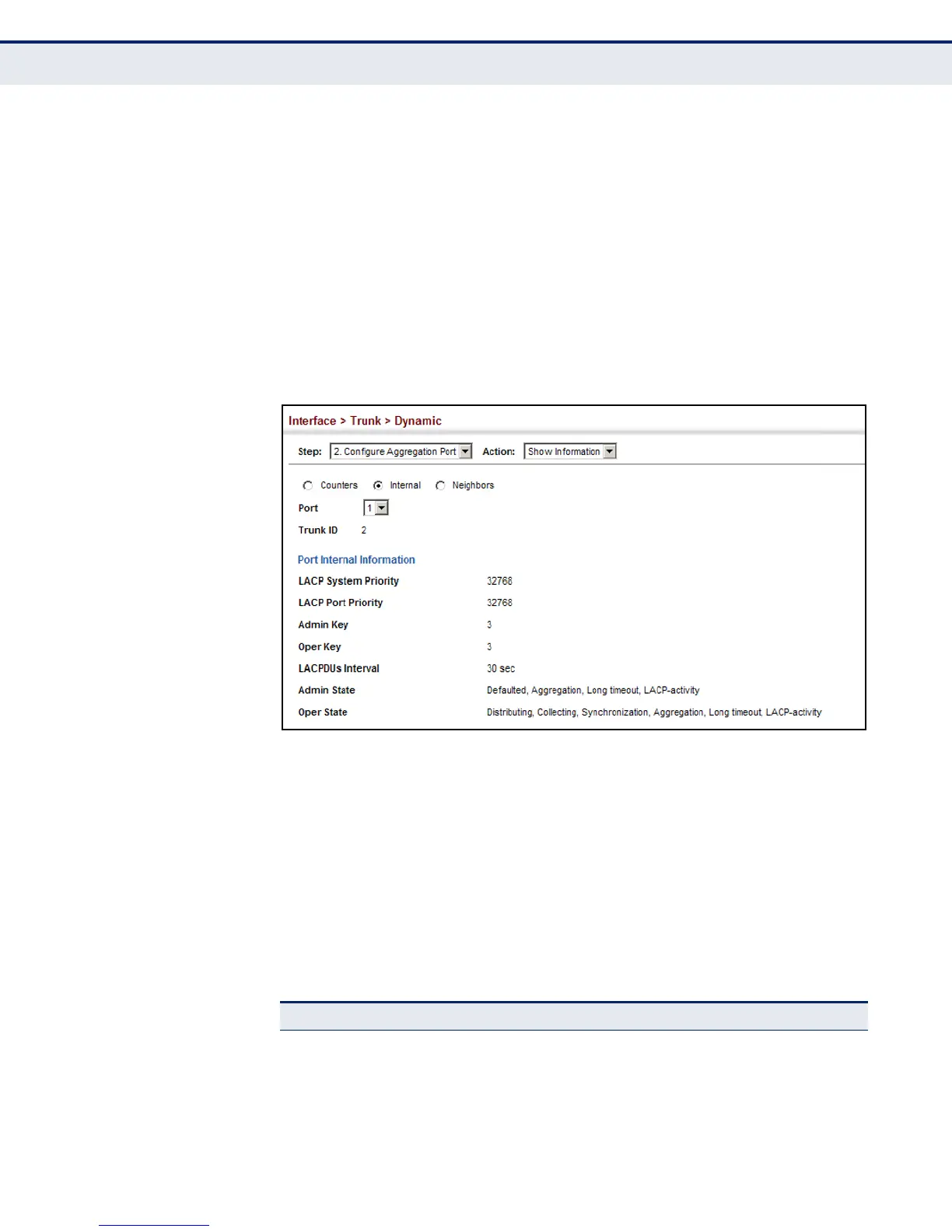

Figure 50: Displaying LACP Port Internal Information
DISPLAYING LACP
SETTINGS AND STATUS
FOR
THE REMOTE SIDE
Use the Interface > Trunk > Dynamic (Configure Aggregation Port - Show
Information - Neighbors) page to display the configuration settings and
operational state for the remote side of a link aggregation.
CLI REFERENCES
â—† "show lacp" on page 723
PARAMETERS
These parameters are displayed:
Table 8: LACP Internal Configuration Information
Parameter Description
Partner Admin
System ID
LAG partner’s system ID assigned by the user.
Partner Oper System
ID
LAG partner’s system ID assigned by the LACP protocol.
Partner Admin
Port Number
Current administrative value of the port number for the protocol
Partner.
