9. Click Apply.

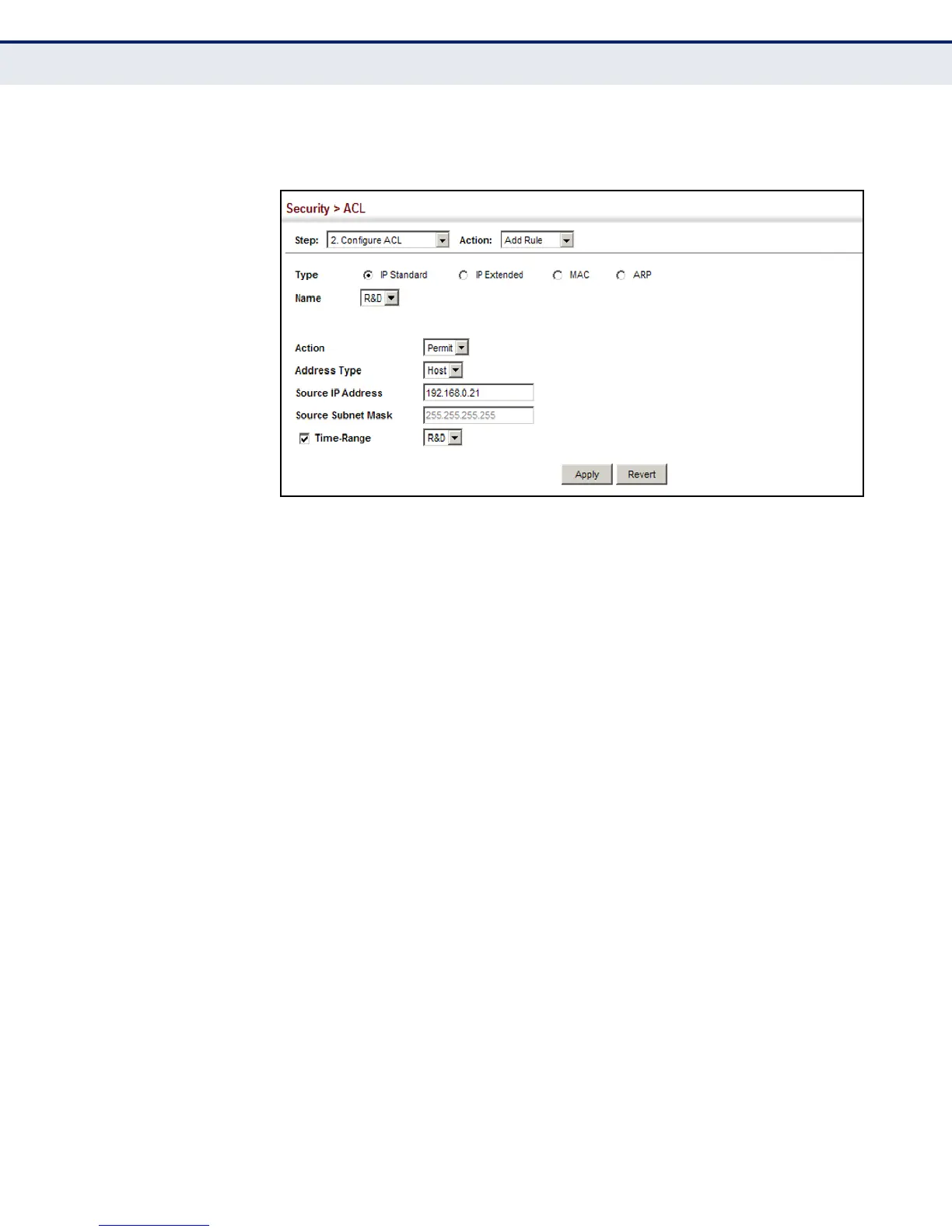

Figure 174: Configuring a Standard IPv4 ACL
CONFIGURING AN
EXTENDED IPV4 ACL
Use the Security > ACL (Configure ACL - Add Rule - IP Extended) page to
configure an Extended IPv4 ACL.
CLI REFERENCES
◆ "permit, deny (Extended IPv4 ACL)" on page 686
◆ "show ip access-list" on page 689
◆ "Time Range" on page 545
PARAMETERS
These parameters are displayed:
◆ Type – Selects the type of ACLs to show in the Name list.
◆ Name – Shows the names of ACLs matching the selected type.
◆ Action – An ACL can contain any combination of permit or deny rules.
◆ Source/Destination Address Type – Specifies the source or
destination IP address. Use “Any” to include all possible addresses,
“Host” to specify a specific host address in the Address field, or “IP” to
specify a range of addresses with the Address and Subnet Mask fields.
(Options: Any, Host, IP; Default: Any)
◆ Source/Destination IP Address – Source or destination IP address.
◆ Source/Destination Subnet Mask – Subnet mask for source or
destination address. (See the description for Subnet Mask on
page 304.)
◆ Source/Destination Port – Source/destination port number for the
specified protocol type. (Range: 0-65535)
